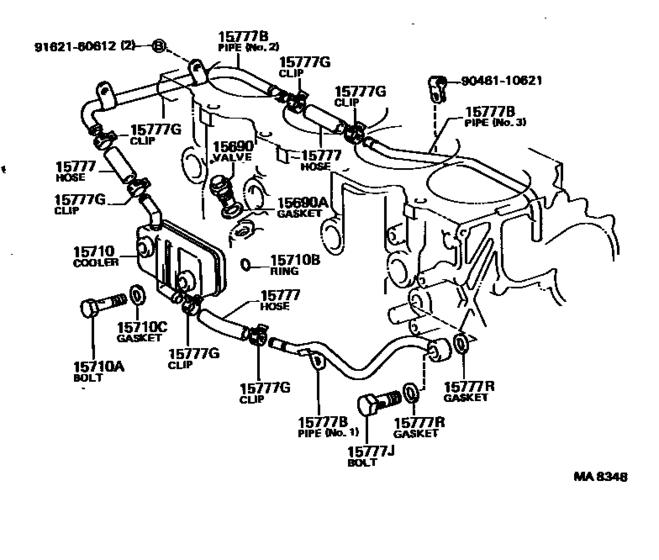

Engine Oil Cooler ([08.1985 - ] (8508- )1C..CE71..4FC) Diagram Toyota COROLLA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- CE71
- grade
- DX
- body
- V
- ENGINE
- 1C
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.1985
- To
- 07.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15690
|
15690
15690-64010
Valve Assy, Oil Cooler Relief
[08.1985 - 07.1987] 1C..CE71..4FC |
15690-64010 |
— | ||
| replacement | |||||
|
15690
|
15690
15690-64011 Valve Assy, Oil Cooler Relief[08.1985 - 07.1987] 1C..CE71..4FC |
15690-64011 |
from US $32.61 |
||
|
15690A
|
15690A
90430-22003 Gasket, Straight Screw Plug No.3(For Cylinder Block)[08.1985 - 07.1987] 1C..CE71..4FC |
90430-22003 |
from US $1.15 |
||
|
15710
|
15710
15710-64010 Cooler Assy, Oil[08.1985 - 07.1987] 1C..CE71..4FC |
15710-64010 |
US $424.57 |
||
|
15710A
|
15710A
90401-18009 Bolt, Union(For Oil Cooler)[08.1985 - 07.1987] 1C..CE71..4FC |
90401-18009 |
US $9.61 |
||
|
15710B
|
15710B
90301-22002
Ring, O(For Oil Cooler)
[08.1985 - 07.1987] 1C..CE71..4FC |
90301-22002 |
— | ||
|
15710C
|
15710C
90430-18012 Gasket(For Oil Pump Outlet Pipe)[08.1985 - 07.1987] 1C..CE71..4FC |
90430-18012 |
US $2.72 |
||
|
15777
|
15777
90445-21006 Hose, Oil Cooler[08.1985 - 07.1987] 1C..CE71..4FC |
90445-21006 |
US $6.12 |
||
|
15777B
|
15777B
15767-64010 Pipe, Oil Cooler[08.1985 - 07.1987] 1C..CE71..4FC NO.2 |
15767-64010 |
US $58.53 |
||
| replacement | |||||
|
15777B
|
15777B
15767-64011
Pipe, Oil Cooler
[08.1985 - 07.1987] 1C..CE71..4FC NO.2 |
15767-64011 |
— | ||
|
15777B
|
15777B
15768-64020 Pipe, Oil Cooler[08.1985 - 07.1987] 1C..CE71..4FC NO.1 |
15768-64020 |
US $57.66 |
||
| replacement | |||||
|
15777B
|
15777B
15768-64021 Pipe, Oil Cooler[08.1985 - 07.1987] 1C..CE71..4FC NO.1 |
15768-64021 |
US $56.93 |
||
|
15777B
|
15777B
15769-64010 Pipe, Oil Cooler[08.1985 - 07.1987] 1C..CE71..4FC NO.3 |
15769-64010 |
US $51.98 |
||
| replacement | |||||
|
15777B
|
15777B
15769-64011 Pipe, Oil Cooler[08.1985 - 07.1987] 1C..CE71..4FC NO.3 |
15769-64011 |
US $54.51 |
||
|
15777G
|
15777G
90467-20005
Clip(For Ventilation Hose No.2)
[08.1985 - 07.1987] 1C..CE71..4FC |
90467-20005 |
— | ||
| replacement | |||||
|
15777G
|
15777G
96134-41900 Clip Or Clamp(For Ventilation Hose)[08.1985 - 07.1987] 1C..CE71..4FC |
96134-41900 |
from US $1.44 |
||
|
15777J
|
15777J
90401-20004 Bolt, Union(For Oil Cooler Pipe)[08.1985 - 07.1987] 1C..CE71..4FC |
90401-20004 |
from US $9.77 |
||
|
15777R
|
15777R
90430-20004 Gasket(For Cylinder Head Screw Plug)[08.1985 - 07.1987] 1C..CE71..4FC |
90430-20004 |
from US $1.01 |
||
|
9046110621
|
9046110621
90461-10621 New Genuine Part |
90461-10621 |
US $2.62 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
