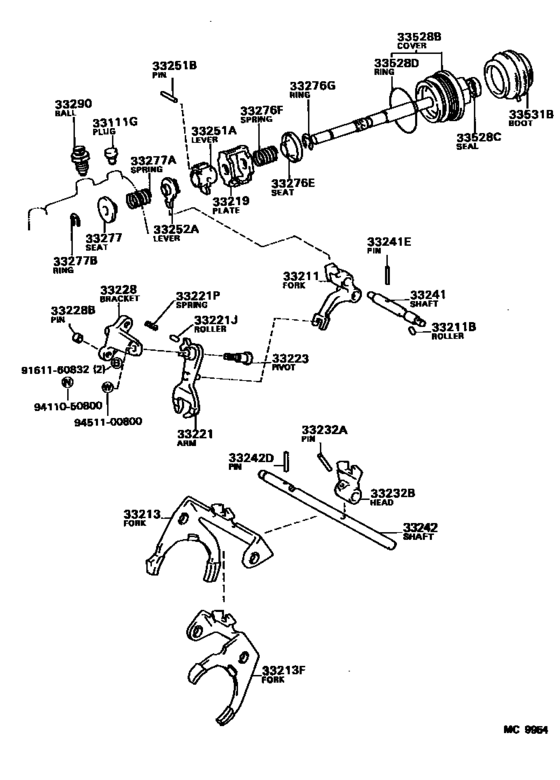

Gear Shift Fork & Lever Shaft (Mtm) ([08.1983 - 08.1984] (8308-8408)STD) Diagram Toyota COROLLA
- Year
- 1983 - 1984
- Sales region
- U.S.A.
- Frame
- CE80
- grade
- STD
- body
- SED
- ENGINE
- 1CLC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 08.1984
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33111G
|
33111G
90930-03080
Plug, Breather(For Manual Transmission)
[08.1983 - 07.1987] AE82,CE80..MTM |
90930-03080 |
— | ||
|
33211
|
33211
33211-12040 Fork, Reverse ShiftREVERSE SHIFT [08.1983 - 08.1984] CE80..STD |
33211-12040 |
US $45.14 |
||
|
33211B
|
33211B
90361-08002 Roller(For Reverse Shift Fork)[08.1983 - 08.1985] CE80..MTM |
90361-08002 |
US $3.06 |
||
|
33213
|
33213
33210-32010 Fork, Gear Shift, No.1[08.1983 - 08.1985] CE80..MTM |
33210-32010 |
US $116.48 |
||
| replacement | |||||
|
33213
|
33213
33210-32H00 Fork, Gear Shift, No.1[08.1983 - 08.1985] CE80..MTM |
33210-32H00 |
US $115.02 |
||
|
33213F
|
33213F
33220-32010 Fork, 3Rd & 4Th Shift[08.1983 - 08.1985] CE80..MTM |
33220-32010 |
US $106.29 |
||
| replacement | |||||
|
33213F
|
33213F
33220-32024
Fork, Gear Shift, No.2
[08.1983 - 08.1985] CE80..MTM |
33220-32024 |
— | ||
|
33219
|
33219
33219-32010 Plate, Shift Fork Lock[08.1983 - 07.1985] CE80..MTM |
33219-32010 |
US $65.23 |
||
|
33221
|
33221
33201-32010 Arm, Reverse Shift[08.1983 - 08.1985] CE80..MTM |
33201-32010 |
US $82.99 |
||
|
33221J
|
33221J
90361-08002 Roller(For Reverse Shift Fork)[08.1983 - 08.1985] CE80..MTM |
90361-08002 |
US $3.06 |
||
|
33221P
|
33221P
90501-10048 Spring, Compression(For Reverse Shift Arm Roller)[08.1983 - 08.1985] CE80..MTM |
90501-10048 |
US $1.75 |
||
|
33223
|
33223
33223-32010 Pivot, Shift Arm[08.1983 - 08.1985] CE80..MTM |
33223-32010 |
US $11.65 |
||
|
33228
|
33228
33228-32010 Bracket, Reverse Shift Arm[08.1983 - 08.1985] CE80..MTM |
33228-32010 |
US $27.66 |
||
|
33228B
|
33228B
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[08.1983 - 08.1985] CE80..MTM |
90253-11001 |
US $1.92 |
||
|
33232A
|
33232A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.1983 - 08.1985] CE80..MTM |
90254-05001 |
from US $1.03 |
||
|
33232B
|
33232B
33232-32010 Head, 5Th Shift[08.1983 - 08.1985] CE80..MTM |
33232-32010 |
US $42.22 |
||
| replacement | |||||
|
33232B
|
33232B
33232-32012 Head, Gear Shift, No.1[08.1983 - 08.1985] CE80..MTM |
33232-32012 |
US $42.37 |
||
|
33241
|
33241
33243-32010 Shaft, Reverse Shift Fork[08.1983 - 08.1985] CE80..MTM |
33243-32010 |
US $19.95 |
||
| replacement | |||||
|
33241
|
33241
33243-32011 Shaft, Gear Shift Fork, No.2[08.1983 - 08.1985] CE80..MTM |
33243-32011 |
US $20.68 |
||
|
33241E
|
33241E
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.1983 - 08.1985] CE80..MTM |
90254-05001 |
from US $1.03 |
||
|
33242
|
33242
33242-12040 Shaft, Gear Shift Fork, No.1GEAR SHIFT FORK, NO.1 [08.1983 - 08.1984] CE80..STD |
33242-12040 |
US $48.78 |
||
|
33242D
|
33242D
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.1983 - 08.1985] CE80..MTM |
90254-05001 |
from US $1.03 |
||
|
33251A
|
33251A
33251-32010 Lever, Shift, Inner No.1[08.1983 - 07.1985] CE80..MTM |
33251-32010 |
US $63.92 |
||
| replacement | |||||
|
33251A
|
33251A
33251-32040 Lever, Shift, Inner No.1[08.1983 - 07.1985] CE80..MTM |
33251-32040 |
US $63.63 |
||
|
33251B
|
33251B
90254-05007 Pin, Slotted Spring (For Shift Inner Lever)[08.1983 - 08.1985] CE80..MTM L=47.0 |
90254-05007 |
US $3.68 |
||
|
33252A
|
33252A
33252-32010
Lever, Shift, Inner No.2
[08.1983 - 07.1985] CE80..MTM |
33252-32010 |
— | ||
|
33276E
|
33276E
33276-32010
Seat, Select Spring, No.1
[08.1983 - 07.1985] CE80..MTM |
33276-32010 |
— | ||
|
33276F
|
33276F
90501-14092
Spring, Compression, No.1 (For Select Return)
[08.1984 - 08.1985] CE80..5F |
90501-14092 |
— | ||
|
33276F
|
33276F
90501-16072 Spring, Compression, No.1 (For Select Return)[08.1983 - 08.1984] CE80..MTM |
90501-16072 |
US $2.33 |
||
| replacement | |||||
|
33276F
|
33276F
90501-14092
Spring, Compression, No.1 (For Select Return)
[08.1983 - 08.1984] CE80..MTM |
90501-14092 |
— | ||
|
33276G
|
33276G
90523-14001 Ring, E(For Bleeder Clutch Release Tube)[08.1983 - 07.1985] CE80..MTM |
90523-14001 |
US $1.75 |
||
|
33277
|
33277
33277-32010
Seat, Select Spring, No.2
[08.1983 - 07.1985] CE80..MTM |
33277-32010 |
— | ||
|
33277A
|
33277A
90501-18037 Spring, Compression, No.2 (For Select Return)[08.1983 - 07.1985] CE80..MTM |
90501-18037 |
US $2.77 |
||
|
33277B
|
33277B
90523-12003 Ring, E(For Reverse Restrict Pin)[08.1983 - 07.1985] AE82,CE80..MTM |
90523-12003 |
US $0.61 |
||
|
33290
|
33290
33290-32010 Ball Assy, Lock, No.1[08.1983 - 07.1985] CE80..MTM |
33290-32010 |
US $27.81 |
||
| replacement | |||||
|
33290
|
33290
33290-32012
Ball Assy, Lock, No.1
[08.1983 - 07.1985] CE80..MTM |
33290-32012 |
— | ||
|
33528B
|
33528B
33506-32020
Cover, Control Shaft
[08.1983 - 07.1985] CE80..MTM |
33506-32020 |
— | ||
|
33528C
|
33528C
90311-18004 Seal, Oil (For Control Shaft Cover)[08.1983 - 08.1985] CE80..MTM |
90311-18004 |
US $2.33 |
||
| replacement | |||||
|
33528C
|
33528C
90311-18006 Seal, Oil (For Control Shaft Cover)[08.1983 - 08.1985] CE80..MTM |
90311-18006 |
US $2.20 |
||
|
33528D
|
33528D
90301-65004
Ring, O (For Control Shaft Cover)
[08.1983 - 08.1985] CE80..MTM |
90301-65004 |
— | ||
|
33531B
|
33531B
33531-32011 Boot, Dust (For Shift & Select Lever Shaft)[08.1983 - 08.1985] CE80..MTM |
33531-32011 |
US $10.48 |
||
|
9161160832
|
9161160832
91611-60832 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91611-60832 |
US $2.77 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
