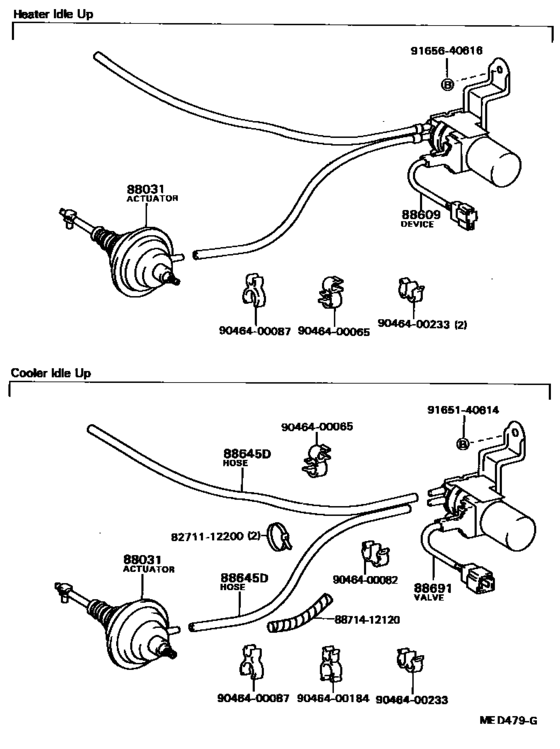

Heating & Air Conditioning - Vacuum Piping ([08.1983 - 08.1985] (8308-8508)CE80) Diagram Toyota COROLLA
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- CE80
- grade
- STD
- body
- SED
- ENGINE
- 1CLC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 08.1984
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-30070
Actuator Set, Idle-Up
[08.1983 - 08.1985] CE80 HEATER IDLE UP |
88031-30070 |
— | ||
| replacement | |||||
|
88031
|
88031
88031-12150
Actuator Set, Idle-Up
[08.1983 - 08.1985] CE80 HEATER IDLE UP |
88031-12150 |
— | ||
|
88609
|
88609
88609-12230
Device Sub-Assy, Idle Up
[08.1983 - 08.1985] CE80 HEATER IDLE UP |
88609-12230 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
8871412120
|
8871412120
88714-12120
Hose, Cooler Refrigerant Liquid, No.1
|
88714-12120 |
— | ||
|
9046400065
|
9046400065
90464-00065 Clamp, Throttle Cable |
90464-00065 |
US $3.84 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400087
|
9046400087
90464-00087 New Genuine Part |
90464-00087 |
US $6.99 |
||
|
9046400184
|
9046400184
90464-00184 Clamp, Vacuum Tube |
90464-00184 |
US $5.60 |
||
|
9046400233
|
9046400233
90464-00233
Clamp (For Idle Up Divice), No.1
|
90464-00233 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
