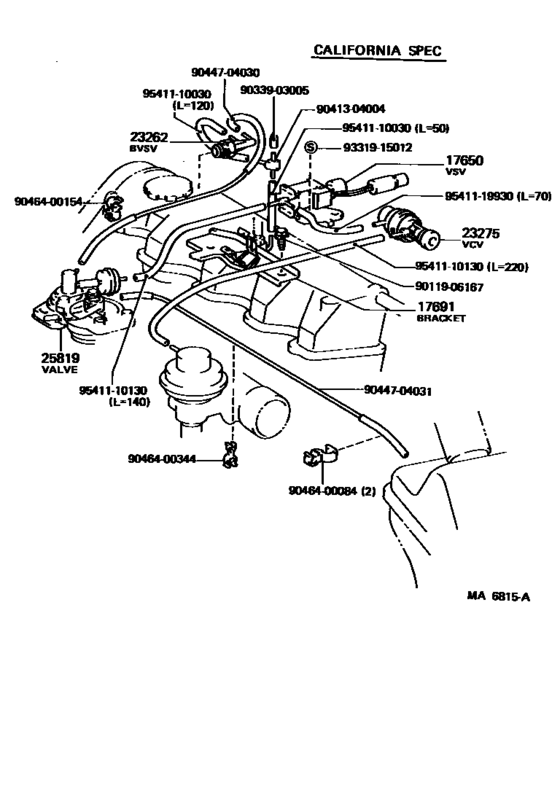

Vacuum Piping ([08.1983 - 08.1984] (8308-8408)1CLC..5F) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- Europe
- Frame
- CE80
- grade
- DX
- body
- LB
- ENGINE
- 1CLC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 08.1985
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650
|
17650
17650-64010 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [08.1983 - 08.1984] 1CLC..CE80..5F CALIFORNIA SPEC |
17650-64010 |
US $200.93 |
||
|
17691
|
17691
17691-64010
Bracket, Vacuum Control Valve, No.1
[08.1983 - 08.1984] 1CLC..CE80..5F CALIFORNIA SPEC |
17691-64010 |
— | ||
|
23262
|
23262
90925-05058
Valve, Bimetal Vacuum Switching, No.1
[08.1983 - 08.1984] 1CLC..CE80..5F CALIFORNIA SPEC |
90925-05058 |
— | ||
|
23275
|
23275
90925-03151 Valve, Vacuum Control, No.1VACUUM CONTROL, NO.1 [08.1983 - 08.1984] 1CLC..CE80..5F CALIFORNIA SPEC |
90925-03151 |
US $58.53 |
||
|
25819
|
25819
25819-64010
Valve Assy, Vacuum Regulating
[08.1983 - 08.1984] 1CLC..CE80..5F CALIFORNIA SPEC |
25819-64010 |
— | ||
|
25819
|
25819
25819-64020
Valve Assy, Vacuum Regulating
[08.1984 - 08.1985] 1CLC..CE80 |
25819-64020 |
— | ||
|
9011906167
|
9011906167
90119-06167 New Genuine Part |
90119-06167 |
US $1.75 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.76 |
||
|
9041304004
|
9041304004
90413-04004 Way, 3(For Canister) |
90413-04004 |
US $2.62 |
||
|
9044704030
|
9044704030
90447-04030 New Genuine Part |
90447-04030 |
US $3.79 |
||
|
9044704031
|
9044704031
90447-04031 New Genuine Part |
90447-04031 |
US $6.12 |
||
|
9046400084
|
9046400084
90464-00084
New Genuine Part
|
90464-00084 |
— | ||
| replacement | |||||
|
9046400084
|
9046400084
90464-00301 Clamp |
90464-00301 |
US $1.44 |
||
|
9046400154
|
9046400154
90464-00154
New Genuine Part
|
90464-00154 |
— | ||
|
9046400344
|
9046400344
90464-00344 New Genuine Part |
90464-00344 |
US $3.06 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
|
9541110030
|
9541110030
95411-10030
Hose (For Idle Up Device)
|
95411-10030 |
— | ||
| replacement | |||||
|
9541110030
|
9541110030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110130
|
9541110130
95411-10130
Pipe Or Hose
|
95411-10130 |
— | ||
| replacement | |||||
|
9541110130
|
9541110130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
