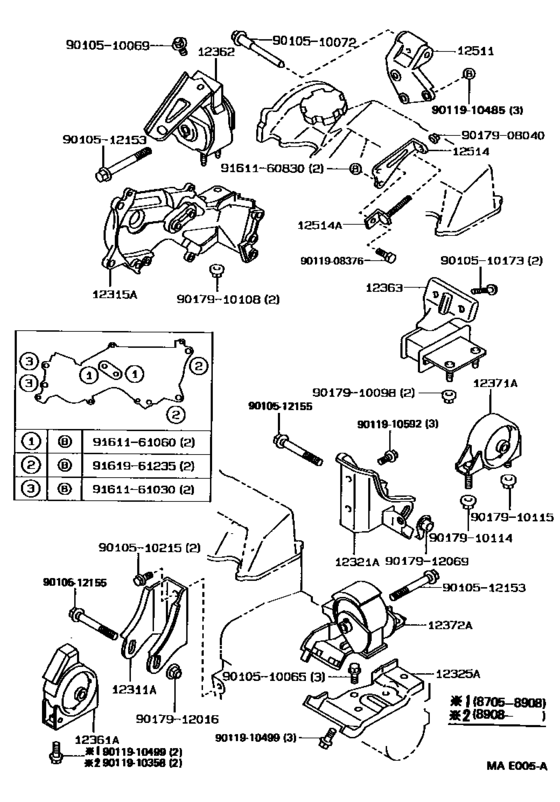

Mounting ([05.1987 - ] (8705- )1C) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- CE90
- grade
- XL
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-64090 Bracket, Engine Mounting, Front(For Transverse Engine)[05.1987 - 05.1992] 1C..CE90 |
12311-64090 |
US $33.49 |
||
|
12315A
|
12315A
12315-64040 Bracket, Engine Mounting, Rh(For Transverse Engine)[05.1987 - 05.1989] 1C..CE90 |
12315-64040 |
US $117.94 |
||
|
12315A
|
12315A
12315-64050
Bracket, Engine Mounting, Rh(For Transverse Engine)
[05.1989 - 05.1992] 1C..CE90 |
12315-64050 |
— | ||
|
12321A
|
12321A
12321-64140 Bracket, Engine Mounting, Rear(For Transverse Engine)[05.1987 - 05.1992] 1C..CE90 |
12321-64140 |
US $55.62 |
||
|
12325A
|
12325A
12325-64010
Bracket, Engine Mounting, Lh(For Transverse Engine)
[05.1987 - 05.1992] 1C..CE90 |
12325-64010 |
— | ||
|
12361A
|
12361A
12361-64130
Insulator, Engine Mounting, Front(For Transverse Engine)
[05.1987 - 05.1992] 1C..CE90 |
12361-64130 |
— | ||
|
12362
|
12362
12362-64060
Insulator, Engine Mounting, Rh(For Transverse Engine)
[05.1987 - 08.1989] 1C..CE90 |
12362-64060 |
— | ||
|
12362
|
12362
12362-64120
Insulator, Engine Mounting, Rh(For Transverse Engine)
[08.1989 - 05.1992] 1C..CE90 |
12362-64120 |
— | ||
|
12363
|
12363
12363-64020
Insulator, Engine Mounting, Center
[05.1987 - 08.1989] 1C..CE90 |
12363-64020 |
— | ||
|
12363
|
12363
12363-64030
Insulator, Engine Mounting, Center
[08.1989 - 05.1992] 1C..CE90 |
12363-64030 |
— | ||
|
12371A
|
12371A
12371-64120
Insulator, Engine Mounting, Rear
[05.1987 - 05.1992] 1C..CE90 |
12371-64120 |
— | ||
|
12372A
|
12372A
12372-64080
Insulator, Engine Mounting, Lh(For Transverse Engine)
[05.1987 - 08.1989] 1C..CE90 |
12372-64080 |
— | ||
|
12372A
|
12372A
12372-64100
Insulator, Engine Mounting, Lh(For Transverse Engine)
[08.1989 - 05.1992] 1C..CE90 |
12372-64100 |
— | ||
|
12511
|
12511
12511-64020 Bracket, Alternator, No.1[05.1987 - 05.1992] 1C..CE90 |
12511-64020 |
US $60.57 |
||
|
12514
|
12514
16381-64020 Bar, Alternator Belt Adjusting[05.1987 - 05.1992] 1C..CE90 |
16381-64020 |
US $18.05 |
||
|
12514A
|
12514A
16385-64020 Slider, Fan Belt Adjusting[05.1987 - 05.1992] 1C..CE90 |
16385-64020 |
US $15.58 |
||
|
9010510065
|
9010510065
90105-10065 Bolt(For Transaxle Case & Engine Setting) |
90105-10065 |
US $4.08 |
||
| replacement | |||||
|
9010510065
|
9010510065
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.56 |
||
|
9010510069
|
9010510069
90105-10069 Bolt (For Front Lower Ball Joint) |
90105-10069 |
US $2.77 |
||
|
9010510072
|
9010510072
90105-10072 Bolt(For Alternator) |
90105-10072 |
US $8.15 |
||
| replacement | |||||
|
9010510072
|
9010510072
90901-05004 Bolt(For Alternator) |
90901-05004 |
US $8.15 |
||
|
9010510173
|
9010510173
90105-10173
New Genuine Part
|
90105-10173 |
— | ||
|
9010510215
|
9010510215
90105-10215 New Genuine Part |
90105-10215 |
US $2.62 |
||
|
9010512153
|
9010512153
90105-12153 BOLT |
90105-12153 |
US $5.28 |
||
|
9010512155
|
9010512155
90105-12155 BOLT WASHER BASED |
90105-12155 |
US $5.28 |
||
|
9011908376
|
9011908376
90119-08376 New Genuine Part |
90119-08376 |
US $3.20 |
||
|
9011910358
|
9011910358
90119-10358 New Genuine Part |
90119-10358 |
US $2.48 |
||
|
9011910485
|
9011910485
90119-10485 New Genuine Part |
90119-10485 |
US $2.48 |
||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.20 |
||
|
9011910592
|
9011910592
90119-10592 New Genuine Part |
90119-10592 |
US $3.20 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017910098
|
9017910098
90179-10098 New Genuine Part |
90179-10098 |
US $1.49 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017910114
|
9017910114
90179-10114 New Genuine Part |
90179-10114 |
US $2.62 |
||
|
9017910115
|
9017910115
90179-10115 New Genuine Part |
90179-10115 |
US $3.49 |
||
|
9017912016
|
9017912016
90179-12016 NUT |
90179-12016 |
US $2.24 |
||
|
9017912069
|
9017912069
90179-12069 New Genuine Part |
90179-12069 |
US $3.32 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9161161060
|
9161161060
91611-61060
Bolt(for Clutch Release Cylinder Setting)
|
91611-61060 |
— | ||
| replacement | |||||
|
9161161060
|
9161161060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $1.92 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.08 |
||
