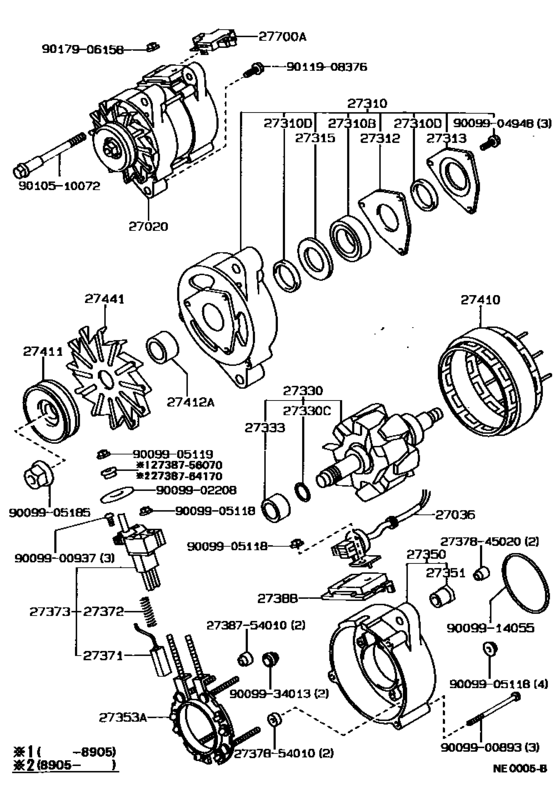

Alternator ([05.1987 - ] 12V 60A (8705- )1C) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- CE90
- grade
- XL
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-64180 Alternator Assy[05.1987 - 05.1989] 1C..CE90..LB,SED 12V 60A |
27020-64180 |
US $1,147.33 |
||
|
27020
|
27020
27020-64210
Alternator Assy
[05.1989 - 01.1991] 1C..CE90 12V 60A |
27020-64210 |
— | ||
|
27020
|
27020
27020-64221 Alternator Assy[01.1991 - 05.1992] 1C..CE90 12V 60A |
27020-64221 |
US $1,071.62 |
||
|
27036
|
27036
27036-64170
Terminal Sub-Assy, Lead Wire, Alternator
[05.1987 - 05.1992] 1C..CE90 |
27036-64170 |
— | ||
|
27310
|
27310
27310-64060
Frame Assy, Drive End, Alternator
[05.1987 - 05.1992] 1C..CE90 |
27310-64060 |
— | ||
|
27310B
|
27310B
90099-10137 Bearing(For Alternator Drive End Frame)[05.1987 - 05.1992] 1C..CE90 |
90099-10137 |
US $12.58 |
||
|
27310D
|
27310D
90099-02209
Felt(For Alternator Drive End Frame)
[05.1987 - 05.1992] 1C..CE90 |
90099-02209 |
— | ||
|
27312
|
27312
27312-57060
Plate, Bearing Retainer, Alternator
[05.1987 - 05.1992] 1C..CE90 |
27312-57060 |
— | ||
|
27313
|
27313
27313-57060
Cover, Alternator Felt, Inner No.2
[05.1987 - 05.1992] 1C..CE90 |
27313-57060 |
— | ||
|
27315
|
27315
27315-57060
Cover, Alternator Felt, Inner No.1
[05.1987 - 05.1992] 1C..CE90 |
27315-57060 |
— | ||
|
27330
|
27330
27330-64170
Rotor Assy, Alternator
[05.1987 - 01.1991] 1C..CE90 |
27330-64170 |
— | ||
|
27330
|
27330
27330-64171
Rotor Assy, Alternator
[01.1991 - 05.1992] 1C..CE90 |
27330-64171 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-54270
Rotor Assy, Alternator
[01.1991 - 05.1992] 1C..CE90 |
27330-54270 |
— | ||
|
27330C
|
27330C
90099-07103
Ring, Snap(For Alternator Rotor)
[05.1987 - 05.1992] 1C..CE90 |
90099-07103 |
— | ||
|
27333
|
27333
27333-57060
Ring, Space(For Alternator Rotor)
[05.1987 - 05.1992] 1C..CE90 |
27333-57060 |
— | ||
|
27350
|
27350
27350-64060
Frame Assy, Rectifier End
[05.1987 - 05.1992] 1C..CE90 |
27350-64060 |
— | ||
|
27351
|
27351
27351-64060
Bush(For Alternator Rectifier End Frame)
[05.1987 - 05.1992] 1C..CE90 |
27351-64060 |
— | ||
|
27353A
|
27353A
27353-64170
Holder, W/rectifier Positive, Alternator
[05.1987 - 03.1989] 1C..CE90 |
27353-64170 |
— | ||
|
27353A
|
27353A
27353-64180
Holder, W/rectifier Positive, Alternator
[03.1989 - 05.1992] 1C..CE90 |
27353-64180 |
— | ||
|
27371
|
27371
27371-54412 Brush, Alternator[06.1991 - 05.1992] 1C..CE90 |
27371-54412 |
from US $3.32 |
||
|
27371
|
27371
27371-56070
Brush, Alternator
[05.1987 - 06.1991] 1C..CE90 |
27371-56070 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-54412 Brush, Alternator[05.1987 - 06.1991] 1C..CE90 |
27371-54412 |
from US $3.32 |
||
|
27372
|
27372
27372-56070
Spring, Alternator Brush
[05.1987 - 05.1992] 1C..CE90 |
27372-56070 |
— | ||
|
27373
|
27373
27373-64170
Holder Assy, Alternator Brush
[05.1987 - 05.1992] 1C..CE90 |
27373-64170 |
— | ||
|
27388
|
27388
27388-64170
Cover, Alternator Brush
[05.1987 - 05.1992] 1C..CE90 |
27388-64170 |
— | ||
|
27410
|
27410
27410-43040
Stator Assy, Alternator
[05.1987 - 05.1992] 1C..CE90 |
27410-43040 |
— | ||
|
27411
|
27411
27411-64060
Pulley, Alternator
[05.1987 - 05.1989] 1C..CE90..LB,SED |
27411-64060 |
— | ||
|
27411
|
27411
27411-64210
Pulley, Alternator
[05.1989 - 05.1992] 1C..CE90 |
27411-64210 |
— | ||
|
27412A
|
27412A
27412-64060
Collar, Spacer(For Alternator Pulley)
[05.1987 - 05.1992] 1C..CE90 |
27412-64060 |
— | ||
|
27441
|
27441
27441-64060
Fan, Alternator
[05.1987 - 05.1992] 1C..CE90 |
27441-64060 |
— | ||
|
27700A
|
27700A
27700-64040 Regulator Assy, Generator[05.1987 - 05.1992] 1C..CE90 |
27700-64040 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-64110
Regulator Assy, Generator
[05.1987 - 05.1992] 1C..CE90 |
27700-64110 |
— | ||
|
2737845020
|
2737845020
27378-45020
Insulator, Alternator, No.1
|
27378-45020 |
— | ||
|
2737854010
|
2737854010
27378-54010
Insulator, Alternator, No.2
|
27378-54010 |
— | ||
|
2738754010
|
2738754010
27387-54010
Insulator, Terminal
|
27387-54010 |
— | ||
|
2738756070
|
2738756070
27387-56070
Insulator, Terminal
|
27387-56070 |
— | ||
|
2738764170
|
2738764170
27387-64170
Insulator, Terminal
|
27387-64170 |
— | ||
|
9009900893
|
9009900893
90099-00893
BOLT
|
90099-00893 |
— | ||
|
9009900937
|
9009900937
90099-00937
New Genuine Part
|
90099-00937 |
— | ||
|
9009902208
|
9009902208
90099-02208
New Genuine Part
|
90099-02208 |
— | ||
|
9009904948
|
9009904948
90099-04948
New Genuine Part
|
90099-04948 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9009914055
|
9009914055
90099-14055
Packing, Vacuum Pump
|
90099-14055 |
— | ||
|
9009934013
|
9009934013
90099-34013
Cap, Alternator Terminal
|
90099-34013 |
— | ||
|
9010510072
|
9010510072
90105-10072 Bolt(For Alternator) |
90105-10072 |
US $8.15 |
||
| replacement | |||||
|
9010510072
|
9010510072
90901-05004 Bolt(For Alternator) |
90901-05004 |
US $8.15 |
||
|
9011908376
|
9011908376
90119-08376 New Genuine Part |
90119-08376 |
US $3.20 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
