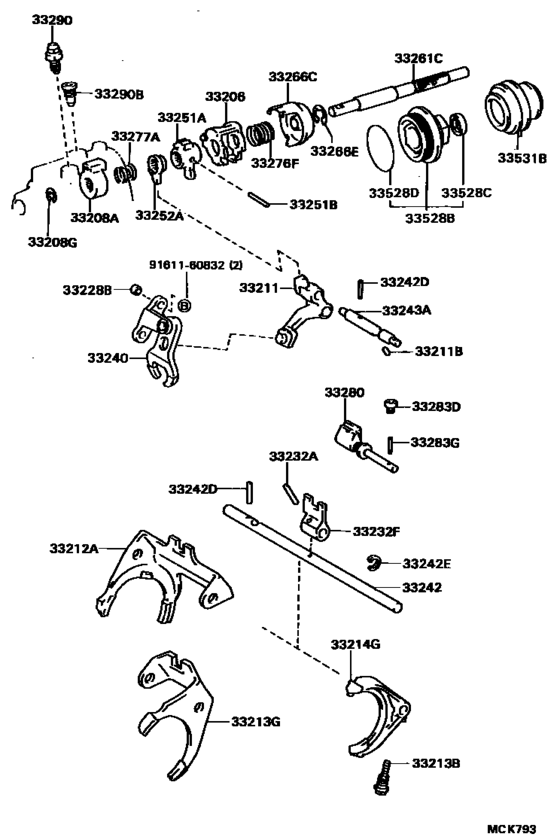

Gear Shift Fork & Lever Shaft (Mtm) ([05.1990 - ] S50 (9005- )CE90) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- CE90
- grade
- XL
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33206
|
33206
33206-32020 Plate Sub-Assy, Shift Inter Lock[05.1987 - 08.1989] CE90 |
33206-32020 |
US $40.91 |
||
| replacements | |||||
|
33206
|
33206
33206-32021 Plate Sub-Assy, Shift Inter Lock[05.1987 - 08.1989] CE90 |
33206-32021 |
US $40.91 |
||
|
33206
|
33206
33208-32021 Pin Sub-Assy, Reverse Restrict[05.1987 - 08.1989] CE90 |
33208-32021 |
US $23.30 |
||
|
33206
|
33206
33266-32021 Plate, Shift Inter Lock[05.1987 - 08.1989] CE90 |
33266-32021 |
US $45.57 |
||
|
33206
|
33206
33206-32021 Plate Sub-Assy, Shift Inter Lock[08.1989 - 12.1989] CE90 |
33206-32021 |
US $40.91 |
||
|
33206
|
33206
33206-32022 Plate Sub-Assy, Shift Inter Lock[12.1989 - 11.1990] CE90 |
33206-32022 |
US $40.48 |
||
|
33206
|
33206
33206-32023
Plate Sub-Assy, Shift Inter Lock
[11.1990 - 05.1992] CE90 |
33206-32023 |
— | ||
|
33208A
|
33208A
33208-32020 Pin Sub-Assy, Reverse Restrict[05.1987 - 08.1989] CE90 |
33208-32020 |
US $25.33 |
||
|
33208A
|
33208A
33208-32021 Pin Sub-Assy, Reverse Restrict[08.1989 - 11.1990] CE90 |
33208-32021 |
US $23.30 |
||
|
33208A
|
33208A
33208-32022
Pin Sub-Assy, Reverse Restrict
[11.1990 - 05.1992] CE90 |
33208-32022 |
— | ||
|
33208G
|
33208G
90523-12003 Ring, E(For Reverse Restrict Pin)[05.1987 - 05.1992] CE90 |
90523-12003 |
US $0.61 |
||
|
33211
|
33211
33211-32010 Fork, Reverse Shift[05.1987 - 04.1990] CE90 |
33211-32010 |
US $64.94 |
||
|
33211
|
33211
33211-32020 Fork, Reverse Shift[04.1990 - 09.1991] CE90 |
33211-32020 |
US $42.81 |
||
| replacement | |||||
|
33211
|
33211
33270-32010 Fork, Reverse Shift[04.1990 - 09.1991] CE90 |
33270-32010 |
US $51.54 |
||
|
33211
|
33211
33270-32010 Fork, Reverse Shift[09.1991 - 05.1992] CE90 |
33270-32010 |
US $51.54 |
||
|
33211B
|
33211B
90361-08002 Roller(For Reverse Shift Fork)[05.1987 - 05.1992] CE90 |
90361-08002 |
US $3.06 |
||
|
33212A
|
33212A
33210-32010 Fork, Gear Shift, No.1[05.1987 - 04.1989] CE90 |
33210-32010 |
US $116.48 |
||
| replacement | |||||
|
33212A
|
33212A
33210-32H00 Fork, Gear Shift, No.1[05.1987 - 04.1989] CE90 |
33210-32H00 |
US $115.02 |
||
|
33212A
|
33212A
33210-32020 Fork, Gear Shift, No.1[04.1989 - 08.1989] CE90 |
33210-32020 |
US $216.94 |
||
| replacement | |||||
|
33212A
|
33212A
33210-32023 Fork, Gear Shift, No.1[04.1989 - 08.1989] CE90 |
33210-32023 |
US $216.94 |
||
|
33212A
|
33212A
33210-32021 Fork, Gear Shift, No.1[08.1989 - 05.1991] CE90 |
33210-32021 |
US $218.40 |
||
| replacement | |||||
|
33212A
|
33212A
33210-32023 Fork, Gear Shift, No.1[08.1989 - 05.1991] CE90 |
33210-32023 |
US $216.94 |
||
|
33212A
|
33212A
33210-32022 Fork, Gear Shift, No.1[05.1991 - 05.1992] CE90 |
33210-32022 |
US $215.49 |
||
| replacement | |||||
|
33212A
|
33212A
33210-32023 Fork, Gear Shift, No.1[05.1991 - 05.1992] CE90 |
33210-32023 |
US $216.94 |
||
|
33213B
|
33213B
90105-06065 Bolt(For Shift Fork Set)[05.1987 - 05.1992] CE90 |
90105-06065 |
US $2.33 |
||
|
33213G
|
33213G
33220-32010 Fork, 3Rd & 4Th Shift[05.1987 - 04.1989] CE90 |
33220-32010 |
US $106.29 |
||
| replacement | |||||
|
33213G
|
33213G
33220-32024
Fork, Gear Shift, No.2
[05.1987 - 04.1989] CE90 |
33220-32024 |
— | ||
|
33213G
|
33213G
33220-32020 Fork, Gear Shift, No.2[04.1989 - 08.1989] CE90 |
33220-32020 |
US $106.29 |
||
| replacement | |||||
|
33213G
|
33213G
33220-32024
Fork, Gear Shift, No.2
[04.1989 - 08.1989] CE90 |
33220-32024 |
— | ||
|
33213G
|
33213G
33220-32021 Fork, Gear Shift, No.2[08.1989 - 05.1991] CE90 |
33220-32021 |
US $106.29 |
||
| replacement | |||||
|
33213G
|
33213G
33220-32024
Fork, Gear Shift, No.2
[08.1989 - 05.1991] CE90 |
33220-32024 |
— | ||
|
33213G
|
33213G
33220-32022
Fork, Gear Shift, No.2
[05.1991 - 05.1992] CE90 |
33220-32022 |
— | ||
| replacement | |||||
|
33213G
|
33213G
33220-32024
Fork, Gear Shift, No.2
[05.1991 - 05.1992] CE90 |
33220-32024 |
— | ||
|
33214G
|
33214G
33214-32011
Fork, 5Th Shift
[05.1987 - 08.1989] CE90 |
33214-32011 |
— | ||
| replacement | |||||
|
33214G
|
33214G
33214-32021
Fork, Gear Shift, No.3
[05.1987 - 08.1989] CE90 |
33214-32021 |
— | ||
|
33214G
|
33214G
33214-32020 Fork, Gear Shift, No.3[04.1990 - 05.1991] CE90 |
33214-32020 |
US $53.29 |
||
| replacement | |||||
|
33214G
|
33214G
33214-32021
Fork, Gear Shift, No.3
[04.1990 - 05.1991] CE90 |
33214-32021 |
— | ||
|
33214G
|
33214G
33214-32021
Fork, Gear Shift, No.3
[05.1991 - 05.1992] CE90 |
33214-32021 |
— | ||
|
33228B
|
33228B
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[05.1987 - 05.1992] CE90 |
90253-11001 |
US $1.92 |
||
|
33232A
|
33232A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[05.1987 - 05.1992] CE90 |
90254-05001 |
from US $1.03 |
||
|
33232F
|
33232F
33232-32011 Head, 5Th Shift[05.1987 - 12.1989] CE90 |
33232-32011 |
US $44.84 |
||
| replacement | |||||
|
33232F
|
33232F
33232-32012 Head, Gear Shift, No.1[05.1987 - 12.1989] CE90 |
33232-32012 |
US $42.37 |
||
|
33232F
|
33232F
33232-32012 Head, Gear Shift, No.1[08.1989 - 05.1992] CE90 |
33232-32012 |
US $42.37 |
||
|
33240
|
33240
33240-32020 Bracket Assy, Reverse Shift Arm[04.1990 - 05.1992] CE90 |
33240-32020 |
US $82.99 |
||
|
33242
|
33242
33242-32010 Shaft, Gear Shift Fork, No.1[05.1987 - 08.1989] CE90 |
33242-32010 |
US $40.48 |
||
| replacement | |||||
|
33242
|
33242
33242-32011 Shaft, Gear Shift Fork, No.1[05.1987 - 08.1989] CE90 |
33242-32011 |
US $40.48 |
||
|
33242
|
33242
33242-32011 Shaft, Gear Shift Fork, No.1[08.1989 - 04.1990] CE90 |
33242-32011 |
US $40.48 |
||
|
33242
|
33242
33242-32020 Shaft, Gear Shift Fork, No.1[04.1990 - 05.1992] CE90 |
33242-32020 |
US $56.78 |
||
|
33242D
|
33242D
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[05.1987 - 05.1990] CE90 |
90254-05001 |
from US $1.03 |
||
|
33242E
|
33242E
90520-12003 Ring(For Reverse Shift Head)[05.1990 - 05.1992] CE90 |
90520-12003 |
from US $0.92 |
||
|
33243A
|
33243A
33243-32010 Shaft, Reverse Shift Fork[05.1990 - 05.1992] CE90 |
33243-32010 |
US $19.95 |
||
| replacement | |||||
|
33243A
|
33243A
33243-32011 Shaft, Gear Shift Fork, No.2[05.1990 - 05.1992] CE90 |
33243-32011 |
US $20.68 |
||
|
33251A
|
33251A
33251-32030 Lever, Shift, Inner No.1[05.1987 - 08.1989] CE90 |
33251-32030 |
US $64.65 |
||
| replacement | |||||
|
33251A
|
33251A
33251-32031
Lever, Shift, Inner No.1
[05.1987 - 08.1989] CE90 |
33251-32031 |
— | ||
|
33251A
|
33251A
33251-32031
Lever, Shift, Inner No.1
[08.1989 - 05.1992] CE90 |
33251-32031 |
— | ||
|
33251B
|
33251B
90254-05007 Pin, Slotted Spring (For Shift Inner Lever)[05.1987 - 08.1990] AE95,CE90 L=47.0 |
90254-05007 |
US $3.68 |
||
|
33252A
|
33252A
33252-32030 Lever, Shift, Inner No.2[05.1987 - 05.1992] CE90 |
33252-32030 |
US $24.32 |
||
|
33261C
|
33261C
33261-32030 Shaft, Shift & Select Lever[05.1987 - 08.1989] CE90 |
33261-32030 |
US $67.70 |
||
|
33261C
|
33261C
33261-32031 Shaft, Shift & Select Lever[12.1989 - 05.1992] CE90 |
33261-32031 |
US $35.53 |
||
|
33266C
|
33266C
33266-32020 Plate, Shift Inter Lock[05.1987 - 08.1989] CE90 |
33266-32020 |
US $45.57 |
||
| replacements | |||||
|
33266C
|
33266C
33206-32021 Plate Sub-Assy, Shift Inter Lock[05.1987 - 08.1989] CE90 |
33206-32021 |
US $40.91 |
||
|
33266C
|
33266C
33208-32021 Pin Sub-Assy, Reverse Restrict[05.1987 - 08.1989] CE90 |
33208-32021 |
US $23.30 |
||
|
33266C
|
33266C
33266-32021 Plate, Shift Inter Lock[05.1987 - 08.1989] CE90 |
33266-32021 |
US $45.57 |
||
|
33266C
|
33266C
33266-32021 Plate, Shift Inter Lock[08.1989 - 12.1989] CE90 |
33266-32021 |
US $45.57 |
||
|
33266C
|
33266C
33266-32022 Plate, Shift Inter Lock[12.1989 - 05.1992] CE90 |
33266-32022 |
US $19.22 |
||
|
33266E
|
33266E
90523-14001 Ring, E(For Bleeder Clutch Release Tube)[05.1987 - 05.1992] CE90 |
90523-14001 |
US $1.75 |
||
|
33276F
|
33276F
90501-14092
Spring, Compression, No.1 (For Select Return)
[05.1987 - 08.1989] CE90 |
90501-14092 |
— | ||
|
33276F
|
33276F
90501-14129
Spring, Compression, No.1 (For Select Return)
[08.1989 - 05.1992] CE90 |
90501-14129 |
— | ||
|
33277A
|
33277A
90501-15009
Spring, Compression, No.2 (For Select Return)
[05.1987 - 05.1992] CE90 |
90501-15009 |
— | ||
|
33280
|
33280
33280-32011 Pin Assy, Reverse Restrict[05.1987 - 04.1989] CE90 |
33280-32011 |
US $44.99 |
||
| replacement | |||||
|
33280
|
33280
33280-32012 Pin Assy, Reverse Restrict[05.1987 - 04.1989] CE90 |
33280-32012 |
US $44.84 |
||
|
33280
|
33280
33280-32012 Pin Assy, Reverse Restrict[04.1989 - 05.1992] CE90 |
33280-32012 |
US $44.84 |
||
|
33283D
|
33283D
90341-10065 Plug, Straight, No.1[05.1987 - 10.1989] AE9#,CE90..5F;EE90..5F..CBR |
90341-10065 |
from US $3.52 |
||
|
33283G
|
33283G
90254-04005 Pin, Slotted Spring (For Reverse Restrict Pin)[05.1987 - 05.1992] CE90 |
90254-04005 |
US $0.96 |
||
|
33290
|
33290
33290-17010 Ball Assy, Lock, No.1[04.1992 - 05.1992] CE90 |
33290-17010 |
US $28.97 |
||
|
33290
|
33290
33290-32011 Ball Assy, Lock, No.1[05.1987 - 08.1989] CE90 |
33290-32011 |
US $28.25 |
||
| replacement | |||||
|
33290
|
33290
33290-32012
Ball Assy, Lock, No.1
[05.1987 - 08.1989] CE90 |
33290-32012 |
— | ||
|
33290
|
33290
33290-32012
Ball Assy, Lock, No.1
[08.1989 - 04.1992] CE90 |
33290-32012 |
— | ||
|
33290B
|
33290B
33290-32020 Ball Assy, Lock, No.2[05.1987 - 08.1989] CE90 |
33290-32020 |
US $22.57 |
||
| replacement | |||||
|
33290B
|
33290B
33290-32021 Ball Assy, Lock, No.2[05.1987 - 08.1989] CE90 |
33290-32021 |
US $20.82 |
||
|
33290B
|
33290B
33290-32021 Ball Assy, Lock, No.2[07.1990 - 05.1992] CE90 |
33290-32021 |
US $20.82 |
||
|
33528B
|
33528B
33506-32040 Cover, Control Shaft[05.1987 - 05.1992] CE90 |
33506-32040 |
US $37.13 |
||
| replacement | |||||
|
33528B
|
33528B
33506-33010 Cover, Control Shaft[05.1987 - 05.1992] CE90 |
33506-33010 |
US $36.69 |
||
|
33528C
|
33528C
90311-18004 Seal, Oil (For Control Shaft Cover)[05.1987 - 06.1989] CE90 |
90311-18004 |
US $2.33 |
||
| replacement | |||||
|
33528C
|
33528C
90311-18006 Seal, Oil (For Control Shaft Cover)[05.1987 - 06.1989] CE90 |
90311-18006 |
US $2.20 |
||
|
33528C
|
33528C
90311-18006 Seal, Oil (For Control Shaft Cover)[06.1989 - 10.1989] AE92,CE90..5F;EE90..4F..XLI;EE90..MTM..(GL,STD,XL) |
90311-18006 |
US $2.20 |
||
|
33528C
|
33528C
90311-18013 Seal, Oil (For Control Shaft Cover)[05.1990 - 05.1992] CE90 |
90311-18013 |
from US $2.32 |
||
|
33528D
|
33528D
90301-65004
Ring, O (For Control Shaft Cover)
[05.1987 - 05.1992] CE90 |
90301-65004 |
— | ||
|
33531B
|
33531B
33531-32011 Boot, Dust (For Shift & Select Lever Shaft)[05.1987 - 05.1992] CE90 |
33531-32011 |
US $10.48 |
||
|
9161160832
|
9161160832
91611-60832 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91611-60832 |
US $2.77 |
||
