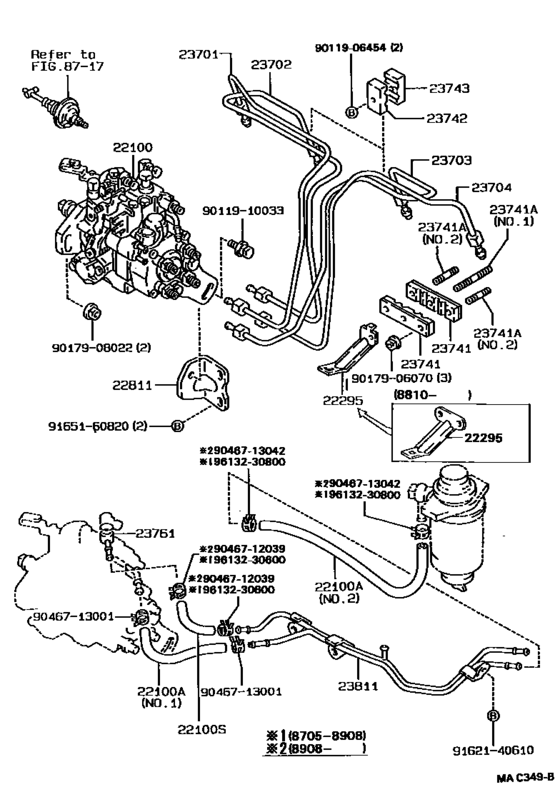

Injection Pump Assembly ([05.1987 - ] (8705- )1C) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- CE90
- grade
- XL
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-6A330 Pump Assy, Injection Or Supply[05.1987 - 08.1989] 1C..CE90 |
22100-6A330 |
US $4,353.44 |
||
|
22100
|
22100
22100-6A340 Pump Assy, Injection Or Supply[05.1987 - 08.1989] 1C..CE90..LHD COLD SPEC |
22100-6A340 |
US $4,222.40 |
||
| replacements | |||||
|
22100
|
22100
88031-12150
Actuator Set, Idle-Up
[05.1987 - 08.1989] 1C..CE90..LHD COLD SPEC |
88031-12150 |
— | ||
|
22100
|
22100
22100-6A330 Pump Assy, Injection Or Supply[05.1987 - 08.1989] 1C..CE90..LHD COLD SPEC |
22100-6A330 |
US $4,353.44 |
||
|
22100
|
22100
22100-6A350 Pump Assy, Injection Or Supply[05.1987 - 08.1989] 1C..CE90..LHD..XL COLD SPEC & W(TACHOMETER PICKUP) |
22100-6A350 |
US $4,382.56 |
||
| replacements | |||||
|
22100
|
22100
88031-12150
Actuator Set, Idle-Up
[05.1987 - 08.1989] 1C..CE90..LHD..XL COLD SPEC & W(TACHOMETER PICKUP) |
88031-12150 |
— | ||
|
22100
|
22100
22100-6A330 Pump Assy, Injection Or Supply[05.1987 - 08.1989] 1C..CE90..LHD..XL COLD SPEC & W(TACHOMETER PICKUP) |
22100-6A330 |
US $4,353.44 |
||
|
22100
|
22100
22100-6A770 Pump Assy, Injection Or Supply[08.1989 - 05.1992] 1C..CE90 |
22100-6A770 |
US $4,193.28 |
||
| replacement | |||||
|
22100
|
22100
22100-6A780 Pump Assy, Injection Or Supply[08.1989 - 05.1992] 1C..CE90 |
22100-6A780 |
US $4,324.32 |
||
|
22100
|
22100
22100-6A780 Pump Assy, Injection Or Supply[08.1989 - 05.1992] 1C..CE90..XL W(POWER STEERING) |
22100-6A780 |
US $4,324.32 |
||
|
22100
|
22100
22100-6A790 Pump Assy, Injection Or Supply[08.1989 - 05.1992] 1C..CE90..LHD COLD SPEC |
22100-6A790 |
US $4,193.28 |
||
| replacement | |||||
|
22100
|
22100
22100-6A800 Pump Assy, Injection Or Supply[08.1989 - 05.1992] 1C..CE90..LHD COLD SPEC |
22100-6A800 |
US $4,324.32 |
||
|
22100
|
22100
22100-6A800 Pump Assy, Injection Or Supply[08.1989 - 05.1992] 1C..CE90..LHD..XL COLD SPEC & W(POWER STEERING) |
22100-6A800 |
US $4,324.32 |
||
|
22100A
|
22100A
23271-64100 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)FUEL(FOR INJECTION PUMP TO FUEL FILTER) [05.1987 - 09.1987] 1C..CE90..LHD NO.2 |
23271-64100 |
US $9.61 |
||
|
22100A
|
22100A
23271-64140
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[09.1987 - 05.1992] 1C..CE90..LHD NO.2 |
23271-64140 |
— | ||
|
22100A
|
22100A
23273-64030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[05.1987 - 08.1989] 1C..CE90 NO.1 |
23273-64030 |
US $5.36 |
||
|
22100S
|
22100S
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[05.1987 - 05.1992] 1C..CE90 |
95333-06020 |
— | ||
| replacement | |||||
|
22100S
|
22100S
95337-06020 Hose, Differential Pressure Control[05.1987 - 05.1992] 1C..CE90 |
95337-06020 |
from US $9.12 |
||
|
22295
|
22295
22295-64010 Bracket, Injection Pump Connector[05.1987 - 10.1988] 1C..CE90 |
22295-64010 |
US $4.95 |
||
| replacement | |||||
|
22295
|
22295
22295-64011 Bracket, Injection Pump Connector[05.1987 - 10.1988] 1C..CE90 |
22295-64011 |
US $3.20 |
||
|
22295
|
22295
22295-64011 Bracket, Injection Pump Connector[10.1988 - 05.1992] 1C..CE90 |
22295-64011 |
US $3.20 |
||
|
22811
|
22811
22811-64010 Stay, Injection Pump, No.1[05.1987 - 05.1992] 1C..CE90 |
22811-64010 |
US $12.23 |
||
|
23701
|
23701
23701-64050 Pipe Sub-Assy, Injection, No.1[09.1988 - 05.1992] 1C..CE90 |
23701-64050 |
US $27.66 |
||
|
23701
|
23701
23701-64060 Pipe Sub-Assy, Injection, No.1[05.1987 - 09.1988] 1C..CE90 |
23701-64060 |
US $29.27 |
||
| replacement | |||||
|
23701
|
23701
23701-64050 Pipe Sub-Assy, Injection, No.1[05.1987 - 09.1988] 1C..CE90 |
23701-64050 |
US $27.66 |
||
|
23702
|
23702
23702-64050 Pipe Sub-Assy, Injection, No.2[09.1988 - 05.1992] 1C..CE90 |
23702-64050 |
US $32.03 |
||
|
23702
|
23702
23702-64060 Pipe Sub-Assy, Injection, No.2[05.1987 - 09.1988] 1C..CE90 |
23702-64060 |
US $34.07 |
||
| replacement | |||||
|
23702
|
23702
23702-64050 Pipe Sub-Assy, Injection, No.2[05.1987 - 09.1988] 1C..CE90 |
23702-64050 |
US $32.03 |
||
|
23703
|
23703
23703-64050 Pipe Sub-Assy, Injection, No.3[10.1988 - 05.1992] 1C..CE90 |
23703-64050 |
US $32.03 |
||
|
23703
|
23703
23703-64060 Pipe Sub-Assy, Injection, No.3[05.1987 - 09.1988] 1C..CE90 |
23703-64060 |
US $34.07 |
||
| replacement | |||||
|
23703
|
23703
23703-64050 Pipe Sub-Assy, Injection, No.3[05.1987 - 09.1988] 1C..CE90 |
23703-64050 |
US $32.03 |
||
|
23704
|
23704
23704-64050 Pipe Sub-Assy, Injection, No.4[10.1988 - 05.1992] 1C..CE90 |
23704-64050 |
US $30.87 |
||
|
23704
|
23704
23704-64060 Pipe Sub-Assy, Injection, No.4[05.1987 - 09.1988] 1C..CE90 |
23704-64060 |
US $32.91 |
||
| replacement | |||||
|
23704
|
23704
23704-64050 Pipe Sub-Assy, Injection, No.4[05.1987 - 09.1988] 1C..CE90 |
23704-64050 |
US $30.87 |
||
|
23741
|
23741
23741-64010
Clamp, Injection Pipe, No.1
[05.1987 - 05.1992] 1C..CE90 |
23741-64010 |
— | ||
| replacement | |||||
|
23741
|
23741
23741-64011 Clamp, Injection Pipe, No.1[05.1987 - 05.1992] 1C..CE90 |
23741-64011 |
US $14.33 |
||
|
23741A
|
23741A
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
[05.1987 - 05.1992] 1C..CE90 NO.1 |
90116-06275 |
— | ||
| replacement | |||||
|
23741A
|
23741A
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)[05.1987 - 05.1992] 1C..CE90 NO.1 |
90116-06095 |
US $1.44 |
||
|
23741A
|
23741A
92122-60622 Bolt, Stud(For Injection Pipe Clamp)[05.1987 - 05.1992] 1C..CE90 NO.2 |
92122-60622 |
US $1.89 |
||
|
23742
|
23742
23741-54010 Clamp, Injection Pipe, No.1[05.1987 - 05.1992] 1C..CE90 |
23741-54010 |
US $20.22 |
||
|
23743
|
23743
23742-54010 Clamp, Injection Pipe, No.2[05.1987 - 05.1992] 1C..CE90 |
23742-54010 |
US $20.22 |
||
|
23761
|
23761
23764-64030 Pipe, Nozzle Leakage, No.1[05.1987 - 05.1992] 1C..CE90 |
23764-64030 |
US $17.33 |
||
|
23811
|
23811
23811-64040 Pipe, Fuel(For Fuel Filter To Injection Pump)[05.1987 - 05.1992] 1C..CE90 |
23811-64040 |
US $66.10 |
||
|
9011906454
|
9011906454
90119-06454 Bolt |
90119-06454 |
US $1.75 |
||
|
9011910033
|
9011910033
90119-10033 Bolt, No.1 (For Center Support Bearing) |
90119-10033 |
US $3.35 |
||
| replacement | |||||
|
9011910033
|
9011910033
90119-10427 Bolt, No.1 (For Center Support Bearing) |
90119-10427 |
US $3.68 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.58 |
||
|
9046712039
|
9046712039
90467-12039 Clip, No.1(For Idle-Up Hose) |
90467-12039 |
US $2.48 |
||
| replacement | |||||
|
9046712039
|
9046712039
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.68 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9046713042
|
9046713042
90467-13042 Clip, No.2(For Idle-Up Hose) |
90467-13042 |
US $3.04 |
||
|
9162140610
|
9162140610
91621-40610 BOLT |
91621-40610 |
from US $0.70 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.05 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.68 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.56 |
||
