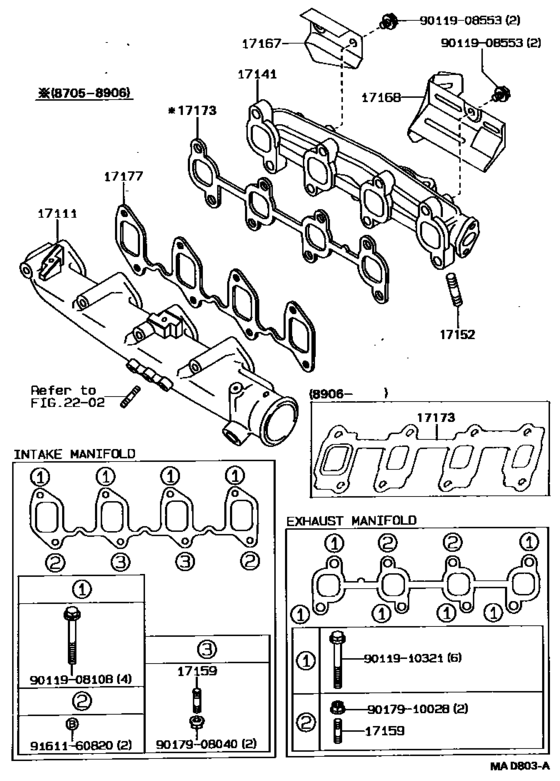

Manifold ([05.1987 - ] (8705- )1C) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- CE90
- grade
- XL
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-64090 Manifold, Intake[05.1987 - 08.1989] 1C..CE90 |
17111-64090 |
US $241.70 |
||
|
17111
|
17111
17111-64150 Manifold, Intake[08.1989 - 05.1992] 1C..CE90 |
17111-64150 |
US $165.98 |
||
|
17141
|
17141
17141-64100 Manifold, Exhaust[05.1987 - 06.1989] 1C..CE90 |
17141-64100 |
US $272.27 |
||
| replacements | |||||
|
17141
|
17141
17141-64101 Manifold, Exhaust[05.1987 - 06.1989] 1C..CE90 |
17141-64101 |
US $270.82 |
||
|
17141
|
17141
17173-64060 Gasket, Exhaust Manifold To Head[05.1987 - 06.1989] 1C..CE90 |
17173-64060 |
from US $17.24 |
||
|
17141
|
17141
17141-64101 Manifold, Exhaust[06.1989 - 05.1992] 1C..CE90 |
17141-64101 |
US $270.82 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[05.1987 - 05.1992] 1C..CE90 |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
90116-10095 Bolt, Stud(For Manifold To Cylinder Head)[05.1987 - 05.1989] 1C..CE90 EXHAUST MANIFOLD |
90116-10095 |
US $1.40 |
||
|
17159
|
17159
92122-60820 Bolt, Stud(For Water Outlet)[05.1987 - 05.1989] 1C..CE90 INTAKE MANIFOLD |
92122-60820 |
US $2.97 |
||
|
17167
|
17167
17167-64031 Insulator, Exhaust Manifold Heat, No.1[05.1987 - 05.1992] 1C..CE90 |
17167-64031 |
US $20.82 |
||
|
17168
|
17168
17168-64050 Insulator, Exhaust Manifold Heat, No.2[05.1987 - 05.1992] 1C..CE90 |
17168-64050 |
US $28.54 |
||
|
17173
|
17173
17173-64020
Gasket, Exhaust Manifold To Head
[05.1987 - 06.1989] 1C..CE90 |
17173-64020 |
— | ||
| replacements | |||||
|
17173
|
17173
17173-64051 Gasket, Exhaust Manifold To Head[05.1987 - 06.1989] 1C..CE90 |
17173-64051 |
US $54.69 |
||
|
17173
|
17173
17173-64080
Gasket, Exhaust Manifold To Head
[05.1987 - 06.1989] 1C..CE90 |
17173-64080 |
— | ||
|
17173
|
17173
17173-64060 Gasket, Exhaust Manifold To Head[06.1989 - 05.1992] 1C..CE90 |
17173-64060 |
from US $17.24 |
||
|
17177
|
17177
17177-64010
Gasket, Intake Manifold To Head, No.1
[05.1987 - 03.1989] 1C..CE90 |
17177-64010 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-64020 Gasket, Intake Manifold To Head, No.1[05.1987 - 03.1989] 1C..CE90 |
17177-64020 |
from US $4.60 |
||
|
17177
|
17177
17177-64020 Gasket, Intake Manifold To Head, No.1[03.1989 - 05.1992] 1C..CE90 |
17177-64020 |
from US $4.60 |
||
|
9011908108
|
9011908108
90119-08108 Bolt(For Clutch Master Cylinder Setting) |
90119-08108 |
US $2.56 |
||
|
9011908553
|
9011908553
90119-08553 New Genuine Part |
90119-08553 |
US $1.09 |
||
|
9011910321
|
9011910321
90119-10321 BOLT |
90119-10321 |
US $1.89 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017910028
|
9017910028
90179-10028 Nut, Exhaust Pipe Set Stud Bolt |
90179-10028 |
US $5.12 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
