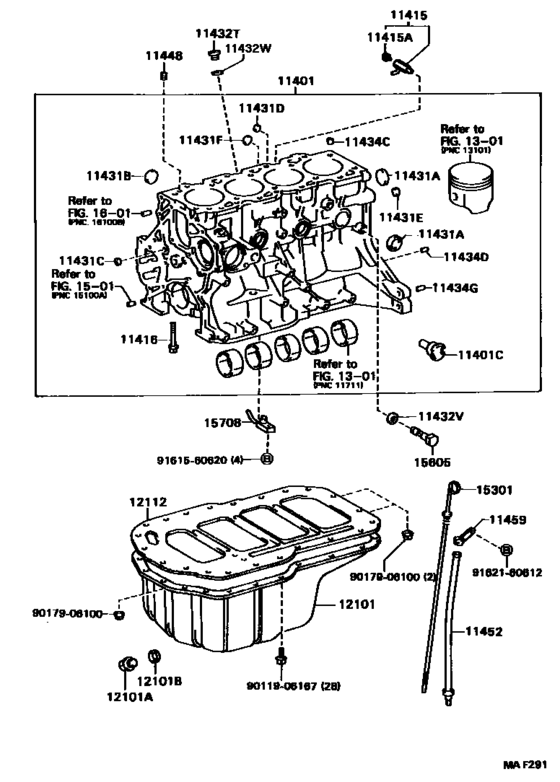

Cylinder Block ([10.1989 - ] (8910- )2C) Diagram Toyota COROLLA
- Year
- 1989 - 1991
- Sales region
- Japan
- Frame
- CE95
- grade
- TX
- body
- 4D
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 10.1989
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-69395 Block Sub-Assy, Cylinder[10.1989 - 08.1990] 2C..CE95 |
11401-69395 |
US $3,174.08 |
||
| replacements | |||||
|
11401
|
11401
11401-69399 Block Sub-assy, Cylinder[10.1989 - 08.1990] 2C..CE95 |
11401-69399 |
US $2,882.88 |
||
|
11401
|
11401
11115-64170-B0 Gasket, Cylinder Head[10.1989 - 08.1990] 2C..CE95 |
11115-64170-B0 |
from US $59.10 |
||
|
11401
|
11401
11381-64020 Retainer, Engine Rear Oil Seal[10.1989 - 08.1990] 2C..CE95 |
11381-64020 |
US $63.77 |
||
|
11401
|
11401
15703-27010 Valve Sub-Assy, Oil Check[10.1989 - 08.1990] 2C..CE95 |
15703-27010 |
US $28.65 |
||
|
11401
|
11401
11401-69445 Block Sub-Assy, Cylinder[08.1990 - 06.1991] 2C..CE95 |
11401-69445 |
US $3,552.64 |
||
| replacements | |||||
|
11401
|
11401
11115-64170-B0 Gasket, Cylinder Head[08.1990 - 06.1991] 2C..CE95 |
11115-64170-B0 |
from US $59.10 |
||
|
11401
|
11401
11401-69399 Block Sub-assy, Cylinder[08.1990 - 06.1991] 2C..CE95 |
11401-69399 |
US $2,882.88 |
||
|
11401
|
11401
11381-64020 Retainer, Engine Rear Oil Seal[08.1990 - 06.1991] 2C..CE95 |
11381-64020 |
US $63.77 |
||
|
11401
|
11401
15703-27010 Valve Sub-Assy, Oil Check[08.1990 - 06.1991] 2C..CE95 |
15703-27010 |
US $28.65 |
||
|
11401C
|
11401C
16353-64010 Flange(For Water By-Pass)[05.1987 - 09.1991] 1C,2C..CE9# |
16353-64010 |
US $6.99 |
||
| replacement | |||||
|
11401C
|
11401C
16353-64011 Flange(For Water By-Pass)[05.1987 - 09.1991] 1C,2C..CE9# |
16353-64011 |
US $6.12 |
||
|
11415
|
11415
90910-09088
Cock Sub-Assy, Water Drain(For Cylinder Block)
[06.1989 - 09.1991] 1C,2C..CE9# |
90910-09088 |
— | ||
| replacement | |||||
|
11415
|
11415
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[06.1989 - 09.1991] 1C,2C..CE9# |
90345-52003 |
from US $3.41 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[06.1989 - 09.1991] 1C,2C..CE9# |
90910-09087 |
from US $3.68 |
||
|
11416
|
11416
90910-02061 Bolt(For Cylinder Head Set)[05.1987 - 09.1991] 1C,2C..CE9# |
90910-02061 |
US $3.68 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[05.1987 - 05.1992] 5AF#..AE91; 1C,2C..CE9# |
96411-43500 |
from US $3.86 |
||
|
11431B
|
11431B
96411-43000 Plug, Tight, No.1[05.1987 - 09.1991] 1C,2C..CE9# |
96411-43000 |
from US $3.74 |
||
|
11431C
|
11431C
96411-41800 Plug, Tight, No.1[05.1987 - 09.1991] 1C,2C..CE9# |
96411-41800 |
from US $1.72 |
||
|
11431D
|
11431D
96411-41800 Plug, Tight, No.1[05.1987 - 09.1991] 1C,2C..CE9# |
96411-41800 |
from US $1.72 |
||
|
11431E
|
11431E
96411-41800 Plug, Tight, No.1[08.1989 - 06.1991] 2C..CE95 |
96411-41800 |
from US $1.72 |
||
|
11431F
|
11431F
96411-42000 Plug, Tight, No.1[10.1989 - 06.1991] 2C..CE95 |
96411-42000 |
from US $3.20 |
||
|
11432T
|
11432T
90341-22001
Plug, W/head Straight Screw, No.3(For Cylinder Block)
[08.1989 - 09.1991] 1C,2C..CE90,95,97..5F |
90341-22001 |
— | ||
|
11432W
|
11432W
90430-22003 Gasket, Straight Screw Plug No.3(For Cylinder Block)[08.1989 - 09.1991] 1C,2C..CE90,95,97..5F |
90430-22003 |
from US $1.03 |
||
|
11434C
|
11434C
90253-14001 Pin, Straight (For Cylinder Head Set)[05.1987 - 09.1991] 1C,2C..CE9# 長さ＝９，外径＝１４ |
90253-14001 |
US $2.62 |
||
|
11434D
|
11434D
90250-06068 Pin, Straight[08.1989 - 12.1989] 1C,2C..CE9# 長さ＝１１，外径＝６; 2E,3E..EE9# 長さ＝１１，外径＝６ |
90250-06068 |
from US $1.05 |
||
|
11434G
|
11434G
90250-10113 Pin, Straight(For Timing Gear Cover Set)[05.1987 - 09.1991] 1C,2C..CE9# |
90250-10113 |
from US $1.03 |
||
|
11448
|
11448
11448-54010 Orifice, Cylinder Block Oil[08.1989 - 09.1990] 1C,2C..CE9# |
11448-54010 |
US $6.12 |
||
| replacement | |||||
|
11448
|
11448
11448-54020 Orifice, Cylinder Block Oil[08.1989 - 09.1990] 1C,2C..CE9# |
11448-54020 |
US $3.32 |
||
|
11448
|
11448
11448-54020 Orifice, Cylinder Block Oil[09.1990 - 09.1991] 1C,2C..CE9# |
11448-54020 |
US $3.32 |
||
|
11452
|
11452
11452-64030 Guide, Oil Level Gage[05.1987 - 09.1991] 1C,2C..CE9# |
11452-64030 |
US $20.82 |
||
|
11459
|
11459
90929-01049 Support, Oil Level Gage Guide[05.1987 - 09.1991] 1C,2C..CE9# |
90929-01049 |
US $2.48 |
||
|
12101
|
12101
12101-64100 Pan Sub-Assy, Oil[10.1989 - 06.1991] 2C..CE95 |
12101-64100 |
US $262.08 |
||
| replacement | |||||
|
12101
|
12101
12101-64101 Pan Sub-Assy, Oil[10.1989 - 06.1991] 2C..CE95 |
12101-64101 |
US $262.08 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[12.1988 - 02.1991] 1C,2C..CE9#; 2E,3E..EE9# |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[12.1988 - 02.1991] 1C,2C..CE9#; 2E,3E..EE9# |
90341-T0004 |
US $4.04 |
||
|
12101B
|
12101B
90430-12019
Gasket(For Oil Pan Drain Plug)
[05.1989 - 04.1990] 1C,2C..CE9#; 4A#,5AF#..AE9#; 2E,3E..EE9# |
90430-12019 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[05.1989 - 04.1990] 1C,2C..CE9#; 4A#,5AF#..AE9#; 2E,3E..EE9# |
90430-12028 |
from US $1.41 |
||
| replacement | |||||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[05.1989 - 04.1990] 1C,2C..CE9#; 4A#,5AF#..AE9#; 2E,3E..EE9# |
90430-12031 |
from US $0.88 |
||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[08.1990 - 08.1991] 1C,2C..CE9# |
90430-12028 |
from US $1.41 |
||
| replacement | |||||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[08.1990 - 08.1991] 1C,2C..CE9# |
90430-12031 |
from US $0.88 |
||
|
12112
|
12112
12112-64060 Pan, Oil No.2[10.1989 - 06.1991] 2C..CE95 |
12112-64060 |
US $115.02 |
||
|
15301
|
15301
15301-64040 Gage Sub-Assy, Oil Level[08.1989 - 11.1989] 1C,2C..CE9# |
15301-64040 |
US $16.89 |
||
| replacement | |||||
|
15301
|
15301
15301-64041 Gage Sub-Assy, Oil Level[08.1989 - 11.1989] 1C,2C..CE9# |
15301-64041 |
US $16.60 |
||
|
15301
|
15301
15301-64041 Gage Sub-Assy, Oil Level[11.1989 - 09.1991] 1C,2C..CE9# |
15301-64041 |
US $16.60 |
||
|
15605
|
15605
15605-64020
Valve Sub-Assy, Oil Check
[10.1989 - 06.1991] 2C..CE95 |
15605-64020 |
— | ||
|
15708
|
15708
15790-64020 Nozzle Sub-Assy, Oil, No.1[10.1989 - 05.1991] 2C..CE95 |
15790-64020 |
US $19.36 |
||
| replacements | |||||
|
15708
|
15708
15790-64030 Nozzle Sub-Assy, Oil, No.1[10.1989 - 05.1991] 2C..CE95 |
15790-64030 |
US $13.10 |
||
|
15708
|
15708
90110-06034
New Genuine Part
[10.1989 - 05.1991] 2C..CE95 |
90110-06034 |
— | ||
|
15708
|
15708
15790-64021 Nozzle Sub-Assy, Oil, No.1[05.1991 - 06.1991] 2C..CE95 |
15790-64021 |
US $19.07 |
||
| replacements | |||||
|
15708
|
15708
15790-64030 Nozzle Sub-Assy, Oil, No.1[05.1991 - 06.1991] 2C..CE95 |
15790-64030 |
US $13.10 |
||
|
15708
|
15708
90110-06034
New Genuine Part
[05.1991 - 06.1991] 2C..CE95 |
90110-06034 |
— | ||
|
9011906167
|
9011906167
90119-06167 New Genuine Part |
90119-06167 |
US $1.75 |
||
|
9017906100
|
9017906100
90179-06100
New Genuine Part
|
90179-06100 |
— | ||
| replacement | |||||
|
9017906100
|
9017906100
90179-06204 NUT |
90179-06204 |
US $1.92 |
||
|
9161560620
|
9161560620
91615-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91615-60620 |
US $1.60 |
||
| replacement | |||||
|
9161560620
|
9161560620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.44 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
