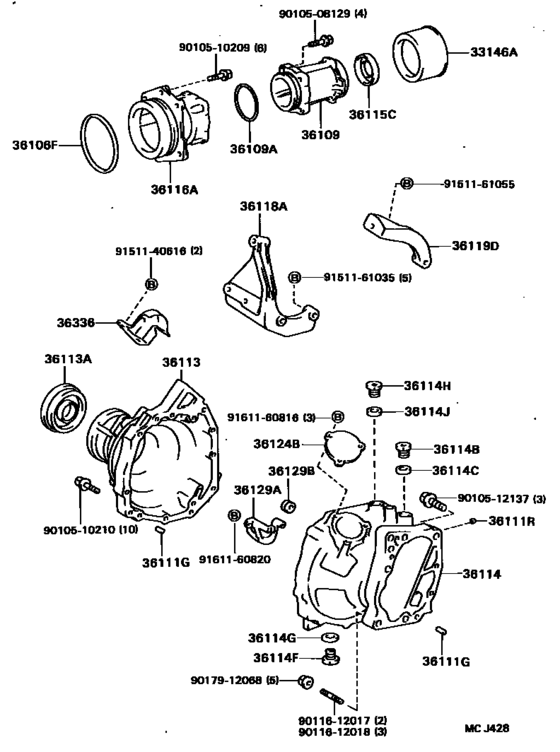

Transfer Case & Extension Housing ([10.1989 - ] E59F (8910- )CE95) Diagram Toyota COROLLA
- Year
- 1989 - 1991
- Sales region
- Japan
- Frame
- CE95
- grade
- TX
- body
- 4D
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 10.1989
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33146A
|
33146A
33146-30010
Deflector, Extension Housing Dust(Mtm)
[10.1987 - 06.1991] AE95,CE95 |
33146-30010 |
— | ||
| replacement | |||||
|
33146A
|
33146A
33146-30020 Deflector, Extension Housing Dust(Mtm)[10.1987 - 06.1991] AE95,CE95 |
33146-30020 |
from US $15.84 |
||
|
36106F
|
36106F
90301-99049 Ring, O (For Transfer Pinion Bearing Cage)[10.1987 - 06.1991] AE95,CE95..5F |
90301-99049 |
US $4.89 |
||
|
36109
|
36109
36109-12011 Housing Sub-Assy, Transfer Extension[08.1988 - 06.1991] AE95,CE95..5F |
36109-12011 |
US $142.69 |
||
|
36109A
|
36109A
90301-63005 Ring, O (For Transfer Extension Housing)[10.1987 - 06.1991] AE95,CE95 |
90301-63005 |
US $2.62 |
||
|
36111G
|
36111G
90250-10017 Pin, Straight(For Clutch Housing Set)[10.1987 - 06.1991] AE95,CE95..5F 長さ＝２０，外径＝１０ |
90250-10017 |
from US $2.08 |
||
|
36111G
|
36111G
90250-12005
Pin, Straight(For Manual Transmission Case)
[10.1987 - 06.1991] AE95,CE95..5F 長さ＝２４，外径＝１２ |
90250-12005 |
— | ||
|
36111R
|
36111R
90331-08002 Plug, Tight(For Front Transaxle Case)[10.1987 - 06.1991] AE95,CE95..5F |
90331-08002 |
US $1.46 |
||
|
36113
|
36113
36113-12030 Case, Transfer, Rh[10.1989 - 06.1991] CE95 |
36113-12030 |
US $313.04 |
||
|
36113A
|
36113A
90311-47003 Seal, Oil (For Transfer Case Rh)[10.1987 - 06.1991] AE95,CE95..5F |
90311-47003 |
from US $12.32 |
||
|
36114
|
36114
36114-12030 Case, Transfer, Lh[10.1989 - 06.1991] AE95,CE95..5F |
36114-12030 |
US $438.26 |
||
|
36114B
|
36114B
90341-22001
Plug, W/head Straight Screw, No.3(For Cylinder Block)
[10.1987 - 06.1991] AE95,CE95..5F |
90341-22001 |
— | ||
|
36114C
|
36114C
90430-22002 Gasket(For Manifold Plug)[10.1987 - 06.1991] AE95,CE95..5F |
90430-22002 |
US $4.48 |
||
|
36114F
|
36114F
90341-18006 Plug (No magnet)[10.1989 - 06.1991] AE95,CE95..5F |
90341-18006 |
from US $2.76 |
||
|
36114G
|
36114G
90430-18008 Gasket[10.1987 - 06.1991] AE95,CE95 |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
36114G
|
36114G
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[10.1987 - 06.1991] AE95,CE95 |
90430-T0021 |
— | ||
|
36114H
|
36114H
90341-18023 Plug, W/head Straight Screw, No.1[10.1989 - 06.1991] CE95 |
90341-18023 |
from US $3.04 |
||
|
36114J
|
36114J
90430-18008 Gasket[10.1989 - 08.1990] CE95 |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
36114J
|
36114J
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[10.1989 - 08.1990] CE95 |
90430-T0021 |
— | ||
|
36115C
|
36115C
90311-38032 Seal, Oil(For Manual Transmission Extension Housing)[10.1987 - 06.1991] AE95,CE95..5F |
90311-38032 |
from US $6.40 |
||
|
36116A
|
36116A
36116-12010 Cage Sub-Assy, Transfer Pinion Bearing[10.1987 - 06.1991] AE95,CE95..5F |
36116-12010 |
US $126.67 |
||
|
36118A
|
36118A
36118-12060 Plate, Transfer Stiffener, Rh[10.1989 - 06.1991] CE95 |
36118-12060 |
US $126.67 |
||
|
36119D
|
36119D
36119-12020 Plate, Transfer Stiffener, Center[10.1989 - 06.1991] CE95 |
36119-12020 |
US $37.13 |
||
|
36124B
|
36124B
36124-12010 Cover, Transfer Inspection Hole[10.1987 - 06.1991] AE95,CE95..5F |
36124-12010 |
US $6.84 |
||
|
36129A
|
36129A
36129-20010
Tube, Transfer Oil
[10.1987 - 06.1991] AE95,CE95..5F |
36129-20010 |
— | ||
|
36129B
|
36129B
90540-06027
Cushion (For Transfer Oil Tube)
[10.1987 - 06.1991] AE95,CE95..5F |
90540-06027 |
— | ||
|
36336
|
36336
36336-12010 Insulator, Transfer Heat[10.1989 - 06.1991] CE95 |
36336-12010 |
US $12.23 |
||
|
9010508129
|
9010508129
90105-08129
Bolt(For Alternator)
|
90105-08129 |
— | ||
| replacement | |||||
|
9010508129
|
9010508129
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.20 |
||
|
9010510209
|
9010510209
90105-10209 Bolt (For Transmission Control Cable Bracket) |
90105-10209 |
US $2.48 |
||
| replacement | |||||
|
9010510209
|
9010510209
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9010510210
|
9010510210
90105-10210 New Genuine Part |
90105-10210 |
US $3.20 |
||
|
9010512137
|
9010512137
90105-12137 Bolt (For Transfer & Transaxle Setting) |
90105-12137 |
US $4.08 |
||
|
9011612017
|
9011612017
90116-12017 Bolt, Stud (For Transfer & Transaxle Setting) |
90116-12017 |
US $5.53 |
||
| replacement | |||||
|
9011612017
|
9011612017
90116-12028 Bolt, Stud (For Transfer & Transaxle Setting) |
90116-12028 |
from US $3.72 |
||
|
9011612018
|
9011612018
90116-12018 Bolt, Stud (For Transfer & Transaxle Setting) |
90116-12018 |
US $5.53 |
||
|
9017912068
|
9017912068
90179-12068 Nut(For Transaxle Case Cover) |
90179-12068 |
US $1.76 |
||
|
9151140616
|
9151140616
91511-40616 New Genuine Part |
91511-40616 |
US $1.92 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $1.07 |
||
|
9151161055
|
9151161055
91511-61055 New Genuine Part |
91511-61055 |
US $2.48 |
||
| replacement | |||||
|
9151161055
|
9151161055
91512-61055 BOLT, FLANGE |
91512-61055 |
US $2.24 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
