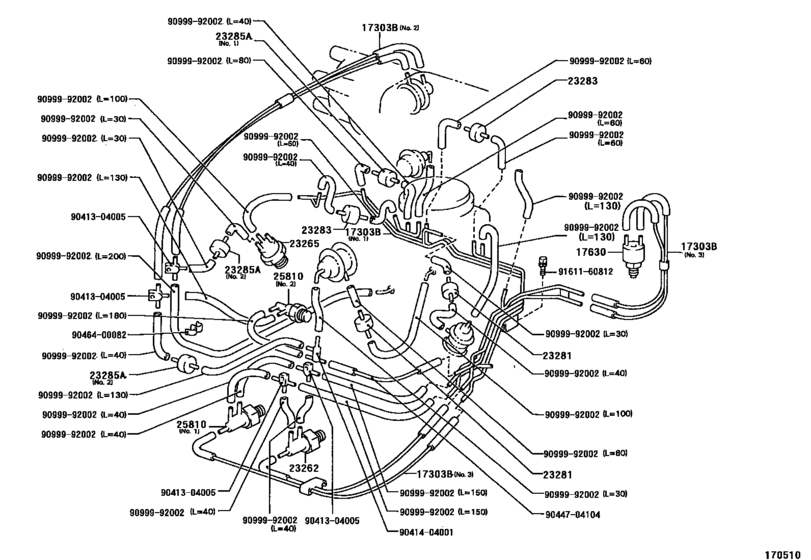

Vacuum Piping ([05.1992 - ] (9205- )2E) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- EE100
- grade
- XL
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-11440 Pipe Sub-Assy, Air, No.1AIR, NO.1 [05.1992 - 09.1995] 2E..EE100 NO.1 |
17303-11440 |
US $25.92 |
||
|
17303B
|
17303B
17303-11460 Pipe Sub-Assy, Air, No.1[05.1992 -] 2E..EE100 NO.2 |
17303-11460 |
US $19.95 |
||
|
17303B
|
17303B
17303-11550 Pipe Sub-Assy, Air, No.1AIR, NO.1 [05.1992 -] 2E..EE100 W(POWER STEERING) |
17303-11550 |
US $18.20 |
||
|
17303B
|
17303B
17303-11570 Pipe Sub-Assy, Air, No.1AIR, NO.1 [05.1992 -] 2E..EE100 NO.3 |
17303-11570 |
US $19.95 |
||
|
17630
|
17630
17630-15030 Valve Assy, Air Control[05.1992 -] 2E..EE100 |
17630-15030 |
US $189.28 |
||
|
23262
|
23262
25820-11040 Valve, Bimetal Vacuum Switching, No.1[05.1992 -] 2E..EE100 |
25820-11040 |
from US $60.78 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[05.1992 -] 2E..EE100 |
90917-11027 |
from US $23.71 |
||
|
23281
|
23281
90925-01101 Valve, Vacuum Transmitting, No.1[05.1992 -] 2E..EE100 |
90925-01101 |
US $28.54 |
||
|
23283
|
23283
90925-01091 Valve, Vacuum Transmitting, No.1[05.1992 -] 2E..EE100 |
90925-01091 |
US $29.35 |
||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[05.1992 -] 2E..EE100 NO.1 |
90917-10049 |
from US $6.59 |
||
|
25810
|
25810
25810-11070
Valve Assy, Bimetal
[05.1992 -] 2E..EE100 NO.1 |
25810-11070 |
— | ||
|
25810
|
25810
25810-11080 Valve, Bimetal Vacuum Switching, No.2[05.1992 -] 2E..EE100 NO.2 |
25810-11080 |
US $77.93 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9041404001
|
9041404001
90414-04001 Joint, No.1 (For Idle Up Divice) |
90414-04001 |
US $5.59 |
||
|
9044704104
|
9044704104
90447-04104 New Genuine Part |
90447-04104 |
US $6.26 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
