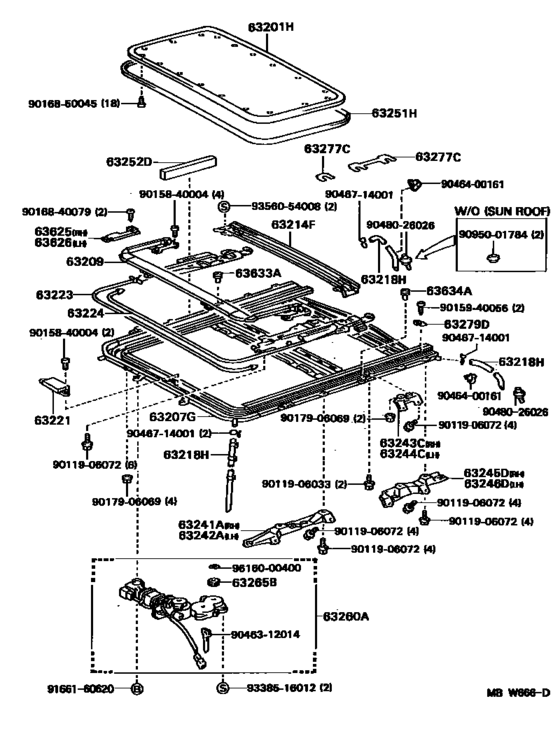

Roof Panel & Back Window Glass ([05.1992 - 05.1995] (9205-9505)LB) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- EE100
- grade
- XL
- body
- LB
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63201H
|
63201H
63201-12190 Panel Sub-Assy, Slide RoofSLIDE ROOF [05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63201-12190 |
US $297.02 |
||
|
63207G
|
63207G
63207-12111 Rail Sub-Assy, Sliding Roof Guide[05.1992 - 01.1994] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63207-12111 |
US $492.13 |
||
|
63207G
|
63207G
63207-12112 Rail Sub-Assy, Sliding Roof Guide[01.1994 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63207-12112 |
US $495.04 |
||
|
63209
|
63209
63209-12100 Panel Sub-Assy, Roof Wind Deflector[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63209-12100 |
US $193.65 |
||
|
63214F
|
63214F
63214-12040 Channel, Roof Drip, Rear[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63214-12040 |
US $42.81 |
||
|
63218H
|
63218H
63249-12210 Hose, Sliding Roof Drain[07.1993 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI FRONT |
63249-12210 |
US $19.66 |
||
|
63218H
|
63218H
63249-12220 Hose, Sliding Roof DrainSLIDING ROOF DRAIN [05.1992 - 05.1995] AE10#,CE100,EE10#..LB REAR |
63249-12220 |
US $18.35 |
||
| replacement | |||||
|
63218H
|
63218H
63247-30030 Hose, Sliding Roof Housing Drain[05.1992 - 05.1995] AE10#,CE100,EE10#..LB REAR |
63247-30030 |
US $19.51 |
||
|
63218H
|
63218H
63249-32090 Hose(For Sliding Roof Or Removable Roof Drain)[05.1992 - 07.1993] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI FRONT |
63249-32090 |
US $21.55 |
||
| replacement | |||||
|
63218H
|
63218H
63249-35020 Hose, Sliding Roof Drain[05.1992 - 07.1993] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI FRONT |
63249-35020 |
US $18.64 |
||
|
63221
|
63221
63221-12070 Casing, Sliding Roof Cable Guide[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63221-12070 |
US $29.41 |
||
|
63223
|
63223
63223-12080 Cable, Sliding Roof Drive, RhSLIDING ROOF DRIVE, RH [05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63223-12080 |
US $251.89 |
||
|
63224
|
63224
63224-12070 Cable, Sliding Roof Drive, LhSLIDING ROOF DRIVE, LH [05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63224-12070 |
US $251.89 |
||
|
63241A
|
63241A
63241-12060 Bracket, Sliding Roof Housing Front Mounting, RhSLIDING ROOF HOUSING FRONT MOUNTING, RH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
63241-12060 |
US $27.96 |
||
|
63242A
|
63242A
63242-12040 Bracket, Sliding Roof Housing Front Mounting, LhSLIDING ROOF HOUSING FRONT MOUNTING, LH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
63242-12040 |
US $27.96 |
||
|
63243C
|
63243C
63243-12070 Bracket, Sliding Roof Housing Center Mounting, RhSLIDING ROOF HOUSING CENTER MOUNTING, RH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
63243-12070 |
US $9.61 |
||
|
63244C
|
63244C
63244-12070 Bracket, Sliding Roof Housing Center Mounting, LhSLIDING ROOF HOUSING CENTER MOUNTING, LH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
63244-12070 |
US $9.61 |
||
|
63245D
|
63245D
63245-12050 Bracket, Sliding Roof Housing Rear Mounting, RhSLIDING ROOF HOUSING REAR MOUNTING, RH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
63245-12050 |
US $24.75 |
||
|
63246D
|
63246D
63246-12040 Bracket, Sliding Roof Housing Rear Mounting, LhSLIDING ROOF HOUSING REAR MOUNTING, LH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
63246-12040 |
US $24.75 |
||
|
63251H
|
63251H
63250-12020
Weatherstrip, Sliding Roof
[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63250-12020 |
— | ||
|
63252D
|
63252D
63252-12030
Weatherstrip, Sliding Roof Housing
[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63252-12030 |
— | ||
|
63260A
|
63260A
63260-12070 Gear Sub-Assy, Sliding Roof Drive[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63260-12070 |
US $630.45 |
||
|
63265B
|
63265B
63265-12020 Gear, Sliding Roof Drive[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63265-12020 |
US $7.72 |
||
|
63277C
|
63277C
63277-20020 Shim, Sliding Roof Rail[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI T=1.0,124X30 |
63277-20020 |
US $11.84 |
||
|
63277C
|
63277C
63277-20030 Shim, Sliding Roof Rail[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI T=1.0,28X30 |
63277-20030 |
US $4.48 |
||
|
63277C
|
63277C
63277-20040 Shim, Sliding Roof Rail[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI T=2.0,124X30 |
63277-20040 |
US $11.84 |
||
|
63277C
|
63277C
63277-20050 Shim, Sliding Roof Rail[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI T=2.0,28X30 |
63277-20050 |
US $3.84 |
||
|
63279D
|
63279D
63279-12020 Stopper, Sliding Roof Guide Rail[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63279-12020 |
US $7.72 |
||
|
63625
|
63625
63625-12010 Block, Sliding Roof Guide, Rh[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63625-12010 |
US $9.61 |
||
|
63626
|
63626
63626-12010 Block, Sliding Roof Guide, Lh[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63626-12010 |
US $9.61 |
||
|
63633A
|
63633A
63633-12010 Bush, Sliding Roof Housing, No.1[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63633-12010 |
US $1.89 |
||
|
63634A
|
63634A
63634-12010 Bush, Sliding Roof Housing, No.2[05.1992 -] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
63634-12010 |
US $1.89 |
||
|
9011906033
|
9011906033
90119-06033
Bolt
|
90119-06033 |
— | ||
| replacement | |||||
|
9011906033
|
9011906033
90119-06157 Bolt |
90119-06157 |
US $2.33 |
||
|
9011906072
|
9011906072
90119-06072 Bolt |
90119-06072 |
US $1.75 |
||
|
9015840004
|
9015840004
90158-40004 New Genuine Part |
90158-40004 |
US $1.60 |
||
|
9015940056
|
9015940056
90159-40056 New Genuine Part |
90159-40056 |
US $1.60 |
||
|
9016840079
|
9016840079
90168-40079 New Genuine Part |
90168-40079 |
US $1.75 |
||
|
9016850045
|
9016850045
90168-50045 New Genuine Part |
90168-50045 |
US $1.60 |
||
|
9017906069
|
9017906069
90179-06069
Direct
|
90179-06069 |
— | ||
| replacement | |||||
|
9017906069
|
9017906069
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9046312014
|
9046312014
90463-12014 Clamp, Hood Lock Control Wire |
90463-12014 |
US $1.76 |
||
|
9046400161
|
9046400161
90464-00161 New Genuine Part |
90464-00161 |
US $3.04 |
||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.76 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
|
9048026026
|
9048026026
90480-26026 Grommet, Sliding Roof Drain |
90480-26026 |
US $1.40 |
||
|
9095001784
|
9095001784
90950-01784 New Genuine Part |
90950-01784 |
US $3.04 |
||
|
9166160620
|
9166160620
91661-60620 New Genuine Part |
91661-60620 |
US $2.18 |
||
|
9338516012
|
9338516012
93385-16012 New Genuine Part |
93385-16012 |
US $1.02 |
||
|
9356054008
|
9356054008
93560-54008 New Genuine Part |
93560-54008 |
US $0.96 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
