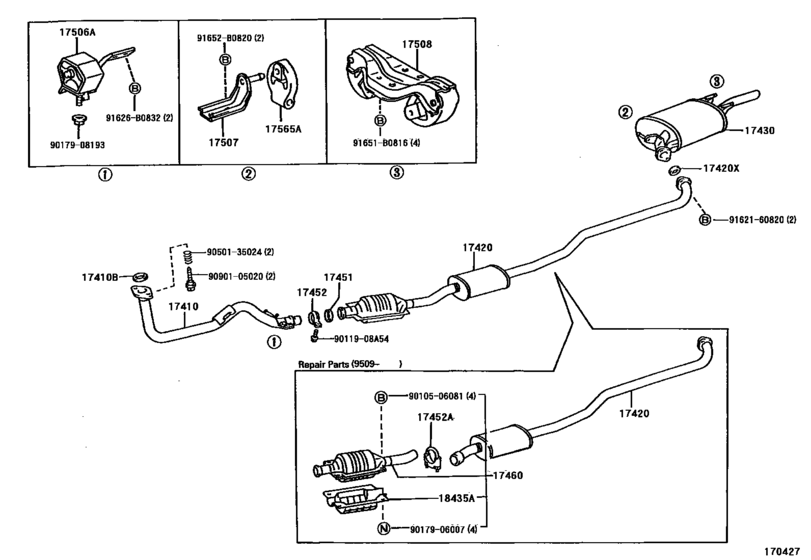

Exhaust Pipe ([05.1995 - ] (9505- )4EFE) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- EE101
- grade
- XLI
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-11610 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [05.1992 - 05.1995] 4EFE..EE101 |
17410-11610 |
US $289.74 |
||
|
17410
|
17410
17410-11810 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [05.1995 -] 4EFE..EE101 |
17410-11810 |
US $199.47 |
||
|
17410B
|
17410B
90917-06069 Gasket, Exhaust Pipe[05.1992 - 05.1995] 2E,4EFE..EE10# |
90917-06069 |
from US $2.42 |
||
|
17410B
|
17410B
90917-06080 Gasket, Exhaust Pipe[05.1995 -] 4EFE..EE101 |
90917-06080 |
from US $16.03 |
||
|
17420
|
17420
17420-11350 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [05.1995 -] 4EFE..EE101 |
17420-11350 |
US $1,499.68 |
||
|
17420
|
17420
17420-11360 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [09.1995 -] 4EFE..EE101 REPAIR PART |
17420-11360 |
US $393.12 |
||
|
17420
|
17420
17420-16580 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [05.1992 - 05.1995] 4EFE..EE101 |
17420-16580 |
US $416.42 |
||
| replacement | |||||
|
17420
|
17420
17420-16630 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [05.1992 - 05.1995] 4EFE..EE101 |
17420-16630 |
US $429.52 |
||
|
17420X
|
17420X
90917-06074 Gasket, Exhaust Pipe, Center[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
90917-06074 |
from US $6.94 |
||
|
17430
|
17430
17430-11640
Pipe Assy, Exhaust, Tail
[05.1992 -] 4AFE,4EFE..AE101,EE101 |
17430-11640 |
— | ||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[05.1992 - 05.1995] 4EFE..EE101 |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17451
|
17451
90080-43028 Gasket, Exhaust Pipe[05.1992 - 05.1995] 4EFE..EE101 |
90080-43028 |
US $19.44 |
||
|
17451
|
17451
90917-06082 Gasket, Exhaust Pipe, Center[05.1995 -] 4EFE..EE101 |
90917-06082 |
US $9.28 |
||
|
17452
|
17452
90461-15013 Clamp, Exhaust Pipe[05.1995 -] 4EFE..EE101 |
90461-15013 |
from US $13.79 |
||
|
17452A
|
17452A
17452-16120 Clamp, Exhaust Pipe[09.1995 -] 4EFE..EE101 |
17452-16120 |
US $31.62 |
||
|
17460
|
17460
17460-11020 Converter Assy, Catalytic W/pipeCATALYTIC W/PIPE [09.1995 -] 4EFE..EE101 |
17460-11020 |
US $1,244.88 |
||
|
17506A
|
17506A
17506-15080 Bracket Sub-Assy, Exhaust Pipe No.1 Support[05.1995 -] 4EFE..EE101 |
17506-15080 |
US $46.30 |
||
|
17506A
|
17506A
17506-16090 Bracket Sub-Assy, Exhaust Pipe No.1 SupportEXHAUST PIPE NO.1 SUPPORT [05.1992 - 02.1995] 4AFE,2C,4EFE..AE101,CE100,EE101 |
17506-16090 |
US $37.42 |
||
| replacement | |||||
|
17506A
|
17506A
17506-16140 Bracket Sub-Assy, Exhaust Pipe No.1 SupportEXHAUST PIPE NO.1 SUPPORT [05.1992 - 02.1995] 4AFE,2C,4EFE..AE101,CE100,EE101 |
17506-16140 |
US $37.56 |
||
|
17506A
|
17506A
17506-16140 Bracket Sub-Assy, Exhaust Pipe No.1 SupportEXHAUST PIPE NO.1 SUPPORT [02.1995 - 05.1995] 4AFE,2C,4EFE..AE101,CE100,EE101 |
17506-16140 |
US $37.56 |
||
|
17507
|
17507
17507-15040
Bracket Sub-Assy, Exhaust Pipe No.2 Support
[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
17507-15040 |
— | ||
|
17508
|
17508
17508-15050
Support Sub-Assy, Exhaust Pipe, No.3
[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
17508-15050 |
— | ||
|
17565A
|
17565A
17565-16230
Support, Exhaust Pipe, No.4
[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
17565-16230 |
— | ||
| replacement | |||||
|
17565A
|
17565A
17565-28020 Support, Exhaust Pipe, No.4[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
17565-28020 |
US $7.04 |
||
|
18435A
|
18435A
18435-11020
Protector, Monolithic Converter
[05.1995 -] 4EFE..EE101 |
18435-11020 |
— | ||
| replacement | |||||
|
18435A
|
18435A
18435-11040 Protector, Catalytic Converter[05.1995 -] 4EFE..EE101 |
18435-11040 |
US $42.28 |
||
|
91626B0832
|
91626B0832
91626-B0832
New Genuine Part
|
91626-B0832 |
— | ||
| replacement | |||||
|
91626B0832
|
91626B0832
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.44 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.56 |
||
|
91652B0820
|
91652B0820
91652-B0820
Bolt, Radiator Side Support Plate
|
91652-B0820 |
— | ||
| replacement | |||||
|
91652B0820
|
91652B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9011908A54
|
9011908A54
90119-08A54 BOLT WWASHER |
90119-08A54 |
US $2.08 |
||
|
9010506081
|
9010506081
90105-06081
BOLT FLANGE
|
90105-06081 |
— | ||
| replacement | |||||
|
9010506081
|
9010506081
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9050135024
|
9050135024
90501-35024 SPRING COMPRESSION |
90501-35024 |
from US $4.52 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
