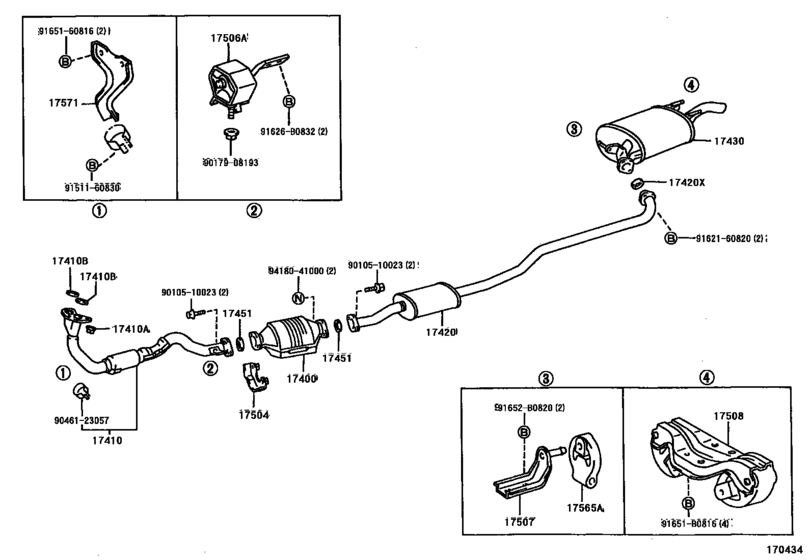

Exhaust Pipe ([05.1992 - 11.1995] (9205-9511)4EFE) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- EE101
- grade
- XLI
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 11.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-16250 Converter Assy, W/catalystW/CATALYST [05.1992 - 11.1995] 4EFE..EE101 |
18450-16250 |
US $1,485.12 |
||
|
17410
|
17410
17410-11610 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [05.1992 - 11.1995] 4EFE..EE101 |
17410-11610 |
US $289.74 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1991 - 09.1994] 4AF#,4AGE,7AFE,2E,4EFE..AE101,102,EE100,101,105 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1991 - 09.1994] 4AF#,4AGE,7AFE,2E,4EFE..AE101,102,EE100,101,105 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06069 Gasket, Exhaust Pipe[08.1991 - 04.1997] 2E,4EFE..EE100,101,105 |
90917-06069 |
from US $2.42 |
||
|
17420
|
17420
17420-16580 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [05.1992 - 11.1995] 4EFE..EE101 |
17420-16580 |
US $416.42 |
||
| replacement | |||||
|
17420
|
17420
17420-16630 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [05.1992 - 11.1995] 4EFE..EE101 |
17420-16630 |
US $429.52 |
||
|
17420X
|
17420X
90917-06074 Gasket, Exhaust Pipe, Center[08.1991 - 09.1994] 4AF#,7AFE,2C,2E,4EFE..AE101,102,CE100,EE100,101..SED,WG |
90917-06074 |
from US $6.94 |
||
|
17430
|
17430
17430-11640
Pipe Assy, Exhaust, Tail
[05.1992 - 11.1995] 4EFE..EE101 |
17430-11640 |
— | ||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[05.1992 - 11.1995] 4EFE..EE101 |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17451
|
17451
90080-43028 Gasket, Exhaust Pipe[05.1992 - 11.1995] 4EFE..EE101 |
90080-43028 |
US $19.44 |
||
|
17504
|
17504
17504-16011
Bracket Sub-Assy, Catalytic Converter
[05.1992 - 11.1995] 4EFE..EE101 |
17504-16011 |
— | ||
|
17506A
|
17506A
17506-15070 Bracket Sub-Assy, Exhaust Pipe No.1 Support[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE,2C,2E,3E,4EFE,5EFE..AE10#,CE100,EE10# |
17506-15070 |
US $84.50 |
||
| replacement | |||||
|
17506A
|
17506A
17506-16120 Bracket Sub-Assy, Exhaust Pipe No.1 Support[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE,2C,2E,3E,4EFE,5EFE..AE10#,CE100,EE10# |
17506-16120 |
from US $28.53 |
||
|
17506A
|
17506A
17506-16120 Bracket Sub-Assy, Exhaust Pipe No.1 Support[02.1995 - 09.1995] 4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE,5EFE..AE10#,CE100,EE10# |
17506-16120 |
from US $28.53 |
||
|
17507
|
17507
17507-15040
Bracket Sub-Assy, Exhaust Pipe No.2 Support
[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE100,101 |
17507-15040 |
— | ||
|
17508
|
17508
17508-15050
Support Sub-Assy, Exhaust Pipe, No.3
[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE100,101 |
17508-15050 |
— | ||
|
17565A
|
17565A
17565-16230
Support, Exhaust Pipe, No.4
[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE100,101 |
17565-16230 |
— | ||
| replacement | |||||
|
17565A
|
17565A
17565-28020 Support, Exhaust Pipe, No.4[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE100,101 |
17565-28020 |
US $7.04 |
||
|
17571
|
17571
17571-11190 Bracket, Exhaust Pipe Support, No.1EXHAUST PIPE SUPPORT, NO.1 [05.1992 - 11.1995] 4EFE..EE101 |
17571-11190 |
US $11.65 |
||
|
91626B0832
|
91626B0832
91626-B0832
New Genuine Part
|
91626-B0832 |
— | ||
| replacement | |||||
|
91626B0832
|
91626B0832
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.44 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.56 |
||
|
91652B0820
|
91652B0820
91652-B0820
Bolt, Radiator Side Support Plate
|
91652-B0820 |
— | ||
| replacement | |||||
|
91652B0820
|
91652B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9046123057
|
9046123057
90461-23057 New Genuine Part |
90461-23057 |
US $10.34 |
||
|
9151160830
|
9151160830
91511-60830
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-60830 |
— | ||
| replacement | |||||
|
9151160830
|
9151160830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $1.01 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
