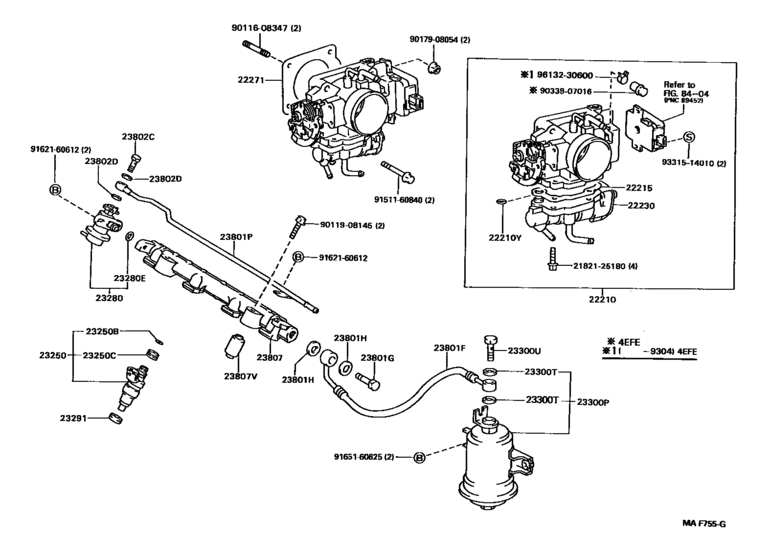

Fuel Injection System ([05.1992 - 04.1997] (9205-9704)4EFE,5EFE) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- EE101
- grade
- XLI
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 11.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-11340 Body Assy, ThrottleTHROTTLE [05.1992 - 11.1995] 4EFE..EE101..5F |
22210-11340 |
US $947.86 |
||
|
22210Y
|
22210Y
96711-19009 Ring, O(For Oil Level Gage Guide)[05.1992 - 05.1997] 4EFE,5EFE..EE101,104 |
96711-19009 |
US $1.92 |
||
|
22215
|
22215
22215-11110 Gasket, Throttle Body Cover[05.1992 - 05.1997] 4EFE,5EFE..EE101,104 |
22215-11110 |
US $5.42 |
||
|
22230
|
22230
22230-11100
Valve Assy, Auxiliary Air
[05.1992 - 05.1997] 4EFE,5EFE..EE101,104..5F |
22230-11100 |
— | ||
|
22271
|
22271
22271-11020
Gasket, Throttle Body
[05.1992 - 07.1994] 4EFE,5EFE..EE101,104 |
22271-11020 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-11030 Gasket, Throttle Body[05.1992 - 07.1994] 4EFE,5EFE..EE101,104 |
22271-11030 |
from US $2.34 |
||
|
22271
|
22271
22271-11030 Gasket, Throttle Body[07.1994 - 05.1997] 4EFE,5EFE..EE101,104 |
22271-11030 |
from US $2.34 |
||
|
23250
|
23250
23209-11100 Injector Assy, Fuel[05.1992 - 11.1995] 4EFE..EE101 |
23209-11100 |
US $276.64 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[05.1992 - 05.1997] 4EFE,5EFE..EE101,104 |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[05.1992 - 05.1997] 4EFE,5EFE..EE101,104 |
90480-13005 |
from US $2.50 |
||
|
23280
|
23280
23280-11070 Regulator Assy, Fuel PressureFUEL PRESSURE [05.1992 - 11.1995] 4EFE..EE101 |
23280-11070 |
US $132.50 |
||
|
23280E
|
23280E
90301-07001 Ring, O(For Fuel Injector)[05.1992 - 05.1997] 4EFE,5EFE..EE101,104 |
90301-07001 |
from US $2.93 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[05.1992 - 05.1997] 4EFE,5EFE..EE101,104 |
23291-41010 |
from US $2.87 |
||
|
23300P
|
23300P
23300-19285 Filter, Fuel(For Efi)FUEL(FOR EFI) [05.1992 - 11.1995] 4EFE..EE101 |
23300-19285 |
US $74.04 |
||
|
23300T
|
23300T
90430-12026 Gasket[05.1992 - 05.1997] 4EFE,5EFE..EE101,104 |
90430-12026 |
from US $0.88 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[05.1992 - 05.1997] 4EFE,5EFE..EE101,104 |
90401-12097 |
from US $3.08 |
||
|
23801F
|
23801F
23271-11130 Hose, Fuel, No.1[05.1992 - 05.1997] 4EFE,5EFE..EE101,104 |
23271-11130 |
US $125.22 |
||
|
23801G
|
23801G
90401-12029 Bolt, Union(For Fuel Pipe Or Hose Set)[05.1992 - 11.1995] 4EFE,5EFE..EE101,104 |
90401-12029 |
from US $8.04 |
||
|
23801H
|
23801H
90430-12026 Gasket[05.1992 - 11.1995] 4EFE,5EFE..EE101,104 |
90430-12026 |
from US $0.88 |
||
|
23801P
|
23801P
23801-11050 Pipe Sub-Assy, Fuel, No.1[05.1992 - 11.1995] 4EFE..EE101 |
23801-11050 |
US $35.82 |
||
|
23802C
|
23802C
90401-08004 Bolt Union(For Oil Jet)[05.1993 - 05.1997] 4EFE,5EFE..EE101,104 |
90401-08004 |
US $3.14 |
||
|
23802C
|
23802C
90401-08010
Bolt, Union(For Fuel Pipe No.2)
[05.1992 - 05.1993] 4EFE..EE101 |
90401-08010 |
— | ||
| replacement | |||||
|
23802C
|
23802C
90401-08004 Bolt Union(For Oil Jet)[05.1992 - 05.1993] 4EFE..EE101 |
90401-08004 |
US $3.14 |
||
|
23802D
|
23802D
90430-08012 Gasket[05.1992 - 05.1993] 4EFE..EE101 |
90430-08012 |
US $1.92 |
||
|
23802D
|
23802D
90430-08014 Gasket(For Oil Filter Outlet Pipe)[05.1993 - 05.1997] 4EFE,5EFE..EE101,104 |
90430-08014 |
from US $0.86 |
||
|
23807
|
23807
23814-11060
Pipe Sub-Assy, Fuel Delivery
[05.1992 - 11.1995] 4EFE..EE101 |
23814-11060 |
— | ||
|
23807V
|
23807V
23890-11010 Spacer, No.1(For Delivery Pipe)[05.1992 - 12.1995] 4EFE,5EFE..EE101,104 |
23890-11010 |
US $9.90 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
9011608347
|
9011608347
90116-08347 New Genuine Part |
90116-08347 |
US $1.31 |
||
|
9011908145
|
9011908145
90119-08145 Bolt(For Front Disc Brake Cylinder) |
90119-08145 |
US $3.32 |
||
|
9017908054
|
9017908054
90179-08054 Nut (For Connecting Rod Swivel) |
90179-08054 |
US $1.60 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.56 |
||
|
9151160840
|
9151160840
91511-60840
Bolt(For Alternator)
|
91511-60840 |
— | ||
| replacement | |||||
|
9151160840
|
9151160840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9165160625
|
9165160625
91651-60625 New Genuine Part |
91651-60625 |
US $2.56 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.80 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
