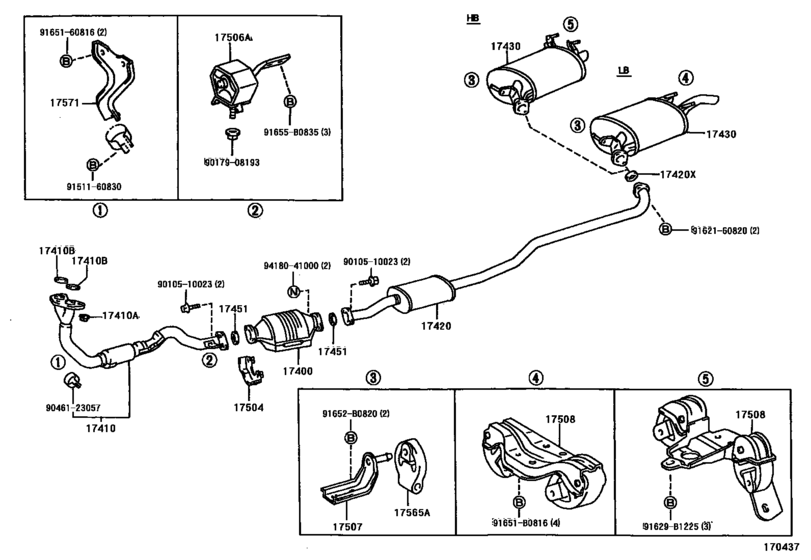

Exhaust Pipe ([05.1992 - 05.1995] (9205-9505)4EFE) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- EE101
- grade
- XLI
- body
- HB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-16250 Converter Assy, W/catalystW/CATALYST [05.1992 - 05.1995] 4EFE..EE101 |
18450-16250 |
US $1,485.12 |
||
|
17410
|
17410
17410-11610 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [05.1992 - 05.1995] 4EFE..EE101 |
17410-11610 |
US $289.74 |
||
|
17410
|
17410
17410-11810 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [05.1995 -] 4EFE..EE101 |
17410-11810 |
US $199.47 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.1992 - 05.1995] 4AFE,7AFE,2E,4EFE..AE10#,EE10# |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.1992 - 05.1995] 4AFE,7AFE,2E,4EFE..AE10#,EE10# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06069 Gasket, Exhaust Pipe[05.1992 - 05.1995] 2E,4EFE..EE10# |
90917-06069 |
from US $2.42 |
||
|
17410B
|
17410B
90917-06080 Gasket, Exhaust Pipe[05.1995 -] 4EFE..EE101 |
90917-06080 |
from US $16.03 |
||
|
17420
|
17420
17420-11350 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [05.1995 -] 4EFE..EE101 |
17420-11350 |
US $1,499.68 |
||
|
17420
|
17420
17420-11360 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [09.1995 -] 4EFE..EE101 REPAIR PART |
17420-11360 |
US $393.12 |
||
|
17420
|
17420
17420-16580 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [05.1992 - 05.1995] 4EFE..EE101 |
17420-16580 |
US $416.42 |
||
| replacement | |||||
|
17420
|
17420
17420-16630 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [05.1992 - 05.1995] 4EFE..EE101 |
17420-16630 |
US $429.52 |
||
|
17420X
|
17420X
90917-06074 Gasket, Exhaust Pipe, Center[05.1992 -] 4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10# |
90917-06074 |
from US $6.94 |
||
|
17430
|
17430
17430-1A300 Pipe Assy, Exhaust, TailEXHAUST, TAIL [05.1992 -] 4AFE,7AFE,4EFE..AE10#,EE101..HB |
17430-1A300 |
US $401.86 |
||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[05.1992 - 05.1995] 4EFE..EE101 |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17451
|
17451
90080-43028 Gasket, Exhaust Pipe[05.1992 - 05.1995] 4EFE..EE101 |
90080-43028 |
US $19.44 |
||
|
17451
|
17451
90917-06082 Gasket, Exhaust Pipe, Center[05.1995 -] 4EFE..EE101 |
90917-06082 |
US $9.28 |
||
|
17504
|
17504
17504-16011
Bracket Sub-Assy, Catalytic Converter
[05.1992 - 05.1995] 4EFE..EE101 |
17504-16011 |
— | ||
|
17506A
|
17506A
17506-15080 Bracket Sub-Assy, Exhaust Pipe No.1 Support[05.1995 -] 4EFE..EE101 |
17506-15080 |
US $46.30 |
||
|
17506A
|
17506A
17506-16090 Bracket Sub-Assy, Exhaust Pipe No.1 SupportEXHAUST PIPE NO.1 SUPPORT [05.1992 - 02.1995] 4AFE,7AFE,2C,4EFE..AE10#,CE100,EE101 |
17506-16090 |
US $37.42 |
||
| replacement | |||||
|
17506A
|
17506A
17506-16140 Bracket Sub-Assy, Exhaust Pipe No.1 SupportEXHAUST PIPE NO.1 SUPPORT [05.1992 - 02.1995] 4AFE,7AFE,2C,4EFE..AE10#,CE100,EE101 |
17506-16140 |
US $37.56 |
||
|
17506A
|
17506A
17506-16140 Bracket Sub-Assy, Exhaust Pipe No.1 SupportEXHAUST PIPE NO.1 SUPPORT [02.1995 - 05.1995] 4AFE,7AFE,2C,4EFE..AE10#,CE100,EE101 |
17506-16140 |
US $37.56 |
||
|
17507
|
17507
17507-15040
Bracket Sub-Assy, Exhaust Pipe No.2 Support
[05.1992 -] 4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10# |
17507-15040 |
— | ||
|
17508
|
17508
17508-16070 Support Sub-Assy, Exhaust Pipe, No.3[05.1992 - 05.1995] 4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10#..HB |
17508-16070 |
US $65.23 |
||
|
17508
|
17508
17508-16080
Support Sub-Assy, Exhaust Pipe, No.3
[05.1995 -] 4AFE,2C,4EFE..AE101,CE100,EE101 |
17508-16080 |
— | ||
|
17565A
|
17565A
17565-16230
Support, Exhaust Pipe, No.4
[05.1992 -] 4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10# |
17565-16230 |
— | ||
| replacement | |||||
|
17565A
|
17565A
17565-28020 Support, Exhaust Pipe, No.4[05.1992 -] 4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10# |
17565-28020 |
US $7.04 |
||
|
17571
|
17571
17571-11190 Bracket, Exhaust Pipe Support, No.1EXHAUST PIPE SUPPORT, NO.1 [05.1992 - 05.1995] 4EFE..EE101 |
17571-11190 |
US $11.65 |
||
|
91629B1225
|
91629B1225
91629-B1225 BOLT W-WASHER |
91629-B1225 |
US $4.16 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.56 |
||
|
91652B0820
|
91652B0820
91652-B0820
Bolt, Radiator Side Support Plate
|
91652-B0820 |
— | ||
| replacement | |||||
|
91652B0820
|
91652B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
91655B0835
|
91655B0835
91655-B0835
New Genuine Part
|
91655-B0835 |
— | ||
| replacement | |||||
|
91655B0835
|
91655B0835
91651-B0835 BOLT |
91651-B0835 |
US $1.60 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9046123057
|
9046123057
90461-23057 New Genuine Part |
90461-23057 |
US $10.34 |
||
|
9151160830
|
9151160830
91511-60830
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-60830 |
— | ||
| replacement | |||||
|
9151160830
|
9151160830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $1.01 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
