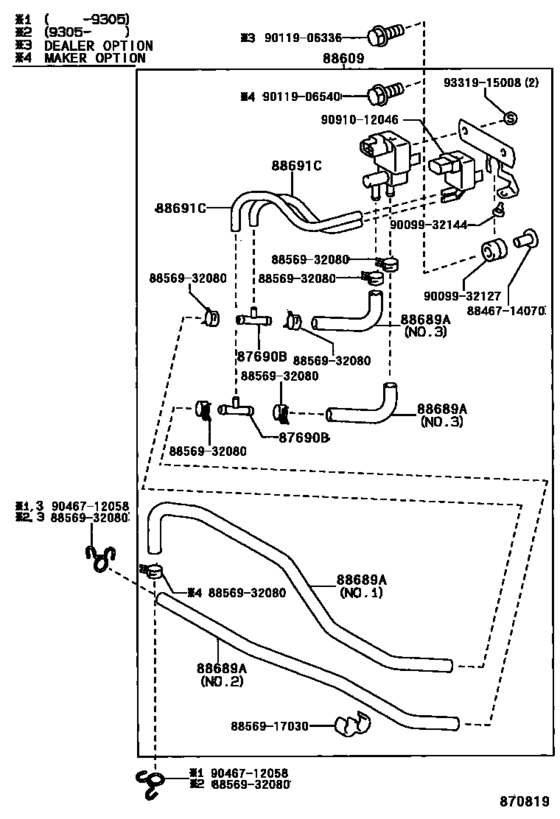

Heating & Air Conditioning - Vacuum Piping ([06.1991 - ] (9106- )EE101,104 ; (9106- )EE103..GL ; (9 106- )EE102..4F..02S ; (9106- )EE102,103..3FC, 4F..DX,DXJ..05S) Diagram Toyota COROLLA
- Year
- 1994 - 2002
- Sales region
- Japan
- Frame
- EE102
- grade
- DXJ
- body
- V
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 01.1994
- To
- 06.2002
- Gear Shift Type
- 3FC
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87690B
|
87690B
90413-08005
Way, 3
[06.1991 - 05.1997] EE101,102,103,104 |
90413-08005 |
— | ||
|
88609
|
88609
88690-12870
Device Sub-Assy, Idle Up
[06.1991 - 08.1995] EE101,102,103,104 |
88690-12870 |
— | ||
|
88689A
|
88689A
88689-12490
Hose, Cooler Vacuum No.1
[06.1991 - 05.1997] EE101,102,103,104 NO.1(IN) |
88689-12490 |
— | ||
|
88689A
|
88689A
88689-12500
Hose, Cooler Vacuum No.1
[06.1991 - 05.1997] EE101,102,103,104 NO.2(OUT) |
88689-12500 |
— | ||
|
88689A
|
88689A
88689-12510
Hose, Cooler Vacuum No.1
[06.1991 - 05.1997] EE101,102,103,104 ＮＯ．３ |
88689-12510 |
— | ||
|
88691C
|
88691C
90999-92002
Air Hose (300 mm)
[06.1991 - 05.1997] EE101,102,103,104 ＊Ｈ，Ｌ＝１５０，マーク＝＃０ |
90999-92002 |
— | ||
|
8846714070
|
8846714070
88467-14070
Insulator (For Power Take-Off Cable Bracket)
|
88467-14070 |
— | ||
|
8856917030
|
8856917030
88569-17030
Clamp (For Idle Up Divice), No.1
|
88569-17030 |
— | ||
|
8856932080
|
8856932080
88569-32080
Clamp (for Cooler Relay)
|
88569-32080 |
— | ||
|
9009932127
|
9009932127
90099-32127
Grommet (For Power Take-Off Cable Bracket)
|
90099-32127 |
— | ||
| replacement | |||||
|
9009932127
|
9009932127
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
9009932144
|
9009932144
90099-32144
New Genuine Part
|
90099-32144 |
— | ||
|
9011906336
|
9011906336
90119-06336 SCREW |
90119-06336 |
US $1.28 |
||
|
9011906540
|
9011906540
90119-06540
New Genuine Part
|
90119-06540 |
— | ||
|
9046712058
|
9046712058
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90467-12058 |
from US $0.76 |
||
|
9091012046
|
9091012046
90910-12046
Valve Assy, Vacuum Switching
|
90910-12046 |
— | ||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
