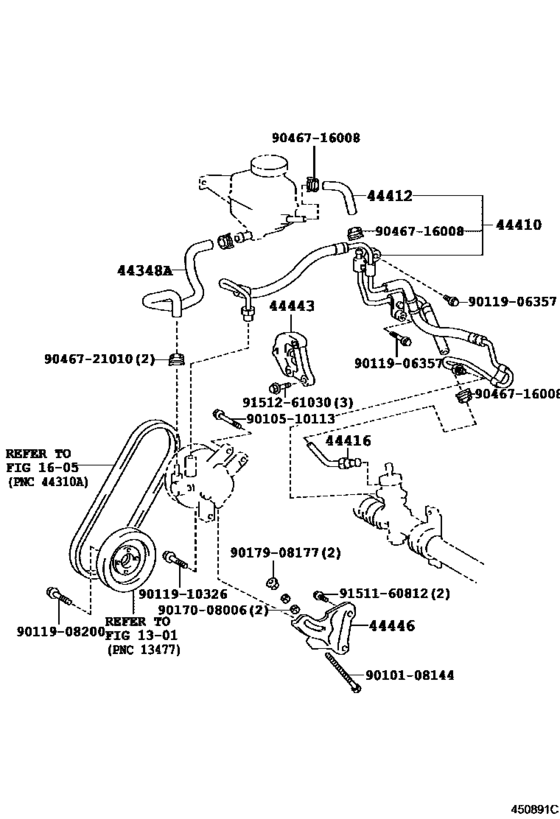

Power Steering Tube ([05.1995 - ] (9505- )EE10#) Diagram Toyota COROLLA
- Year
- 1994 - 2002
- Sales region
- Japan
- Frame
- EE102
- grade
- DXJ
- body
- V
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 01.1994
- To
- 06.2002
- Gear Shift Type
- 3FC
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44348A
|
44348A
44348-12070 Hose, Oil Reservoir To Pump, No.1[05.1995 -] EE10# |
44348-12070 |
US $69.71 |
||
|
44410
|
44410
44040-12190 Tube Assy, Pressure Feed[05.1993 - 07.1995] EE10# |
44040-12190 |
US $327.60 |
||
| replacements | |||||
|
44410
|
44410
44040-12191 Tube Assy, Pressure Feed[05.1993 - 07.1995] EE10# |
44040-12191 |
US $329.06 |
||
|
44410
|
44410
90119-06357 BOLT WWASHER[05.1993 - 07.1995] EE10# |
90119-06357 |
US $1.24 |
||
|
44410
|
44410
44040-12191 Tube Assy, Pressure Feed[07.1995 -] EE10# |
44040-12191 |
US $329.06 |
||
|
44412
|
44412
44412-12200 Hose, Return[06.1991 -] AE101,CE10#,EE10#..BZT,CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEL,XE |
44412-12200 |
US $12.48 |
||
|
44416
|
44416
44416-12210 Tube, Return(For Steering Gear Outlet)[04.1992 -] CE10#,EE10# |
44416-12210 |
US $14.41 |
||
|
44443
|
44443
44443-10030
Bracket, Pump
[06.1991 -] EE101,102,103,104 |
44443-10030 |
— | ||
|
44446
|
44446
44446-10050
Strut, Adjusting
[12.1991 -] EE101,102 |
44446-10050 |
— | ||
|
9010108144
|
9010108144
90101-08144 Bolt, Adjust, No.2(For Pump Bracket Assy) |
90101-08144 |
US $0.52 |
||
|
9010510113
|
9010510113
90105-10113 BOLT |
90105-10113 |
US $1.22 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9011908200
|
9011908200
90119-08200 BOLT |
90119-08200 |
from US $2.24 |
||
| replacement | |||||
|
9011908200
|
9011908200
90105-08112 New Genuine Part |
90105-08112 |
from US $2.04 |
||
|
9011910326
|
9011910326
90119-10326
New Genuine Part
|
90119-10326 |
— | ||
| replacement | |||||
|
9011910326
|
9011910326
90119-10719 BOLT WWASHER |
90119-10719 |
US $3.68 |
||
|
9017008006
|
9017008006
90170-08006 New Genuine Part |
90170-08006 |
US $1.22 |
||
|
9017908177
|
9017908177
90179-08177 New Genuine Part |
90179-08177 |
US $1.89 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $3.20 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $4.49 |
||
|
9151160812
|
9151160812
91511-60812
BOLT
|
91511-60812 |
— | ||
| replacement | |||||
|
9151160812
|
9151160812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
9151261030
|
9151261030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $2.72 |
||
