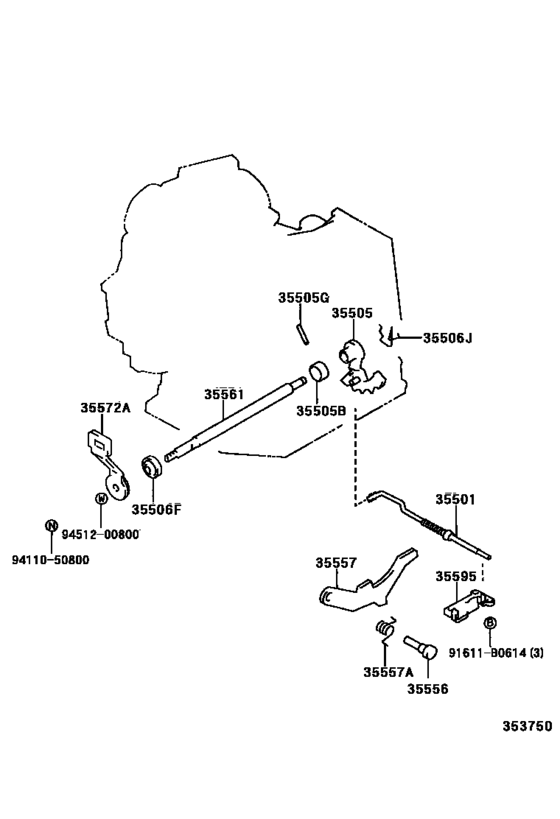

Throttle Link & Valve Lever (Atm) ([06.1991 - ] A131L,A132L (9106- )3FC) Diagram Toyota COROLLA
- Year
- 1994 - 2002
- Sales region
- Japan
- Frame
- EE102
- grade
- DXJ
- body
- V
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 01.1994
- To
- 06.2002
- Gear Shift Type
- 3FC
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-32030 Rod Sub-Assy, Parking Lock[06.1991 - 06.2002] AE100,EE10#..3FC |
35501-32030 |
US $19.66 |
||
|
35505
|
35505
35505-32040 Lever Sub-Assy, Manual Valve[06.1991 - 06.2002] AE100,EE10#..3FC |
35505-32040 |
US $25.19 |
||
|
35505B
|
35505B
90560-20006 Spacer (For Manual Valve Lever)[06.1991 - 06.2002] AE10#,CE100,101,102,106,107,108,EE10#..ATM |
90560-20006 |
from US $2.77 |
||
|
35505G
|
35505G
90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)[06.1991 - 06.2002] AE10#,CE100,101,102,106,107,108,EE10#..ATM |
90254-04011 |
US $1.40 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[06.1991 - 06.2002] AE10#,CE100,101,102,106,107,108,EE10#..ATM |
90311-12002 |
from US $4.29 |
||
|
35506J
|
35506J
90524-09001 Spring, Retainer (For Manual Valve Lever Shaft)[06.1991 -] AE100,EE10#..3FC |
90524-09001 |
US $1.89 |
||
|
35556
|
35556
35556-32010 Shaft, Parking Lock Pawl[06.1991 -] AE100,EE10#..3FC |
35556-32010 |
US $8.15 |
||
|
35557
|
35557
35557-32020 Pawl, Parking Lock[06.1991 - 06.2002] AE100,EE10#..3FC |
35557-32020 |
US $37.71 |
||
|
35557A
|
35557A
90508-26047 Spring, Torsion (For Parking Lock Pawl)[06.1991 - 06.2002] AE100,EE10#..3FC |
90508-26047 |
US $3.20 |
||
|
35561
|
35561
35561-32010 Shaft Sub-Assy, Manual Valve Lever[06.1991 -] AE100,EE10#..3FC |
35561-32010 |
US $28.54 |
||
|
35572A
|
35572A
35572-12110 Lever, Transmission Control Shaft[06.1991 -] AE100,EE10#..3FC |
35572-12110 |
US $8.30 |
||
|
35595
|
35595
35595-32010 Bracket, Parking Lock Pawl[06.1991 -] AE100,EE10#..3FC |
35595-32010 |
US $9.90 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
