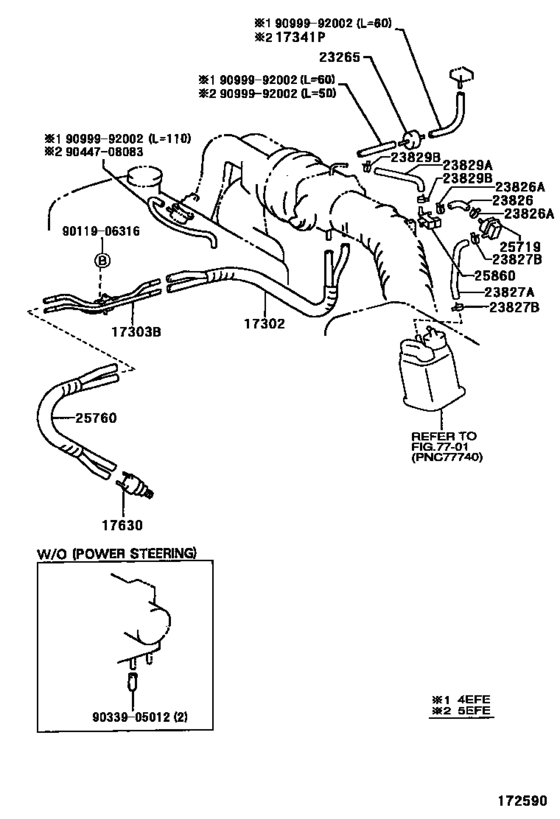

Vacuum Piping ([08.2000 - ] (0008- )4EFE,5EFE) Diagram Toyota COROLLA
- Year
- 1994 - 2002
- Sales region
- Japan
- Frame
- EE102
- grade
- DXJ
- body
- V
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 01.1994
- To
- 06.2002
- Gear Shift Type
- 3FC
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17302
|
17302
17302-11100
Hose Sub-Assy, Air
[04.1997 -] 4EFE,5EFE..EE10# |
17302-11100 |
— | ||
|
17303B
|
17303B
17303-11401 Pipe Sub-Assy, Air, No.1[06.1991 - 04.1997] 4EFE,5EFE..EE101,102,103,104 ＮＯ．１ |
17303-11401 |
US $90.27 |
||
|
17303B
|
17303B
17303-11700 Pipe Sub-Assy, Air, No.1[06.1991 - 04.1997] 5EFE..EE103;4EFE,5EFE..EE101,104..L,LX,XE ＮＯ．２; 4EFE..EE101,102..DX,DXJ ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
17303-11700 |
US $58.24 |
||
|
17303B
|
17303B
17303-11880 Pipe Sub-Assy, Air, No.1[04.1997 -] 4EFE,5EFE..EE10# |
17303-11880 |
US $36.25 |
||
|
17630
|
17630
17630-11050
Valve Assy, Air Control
[06.1991 - 04.1997] 4EFE,5EFE..EE101,102,103,104 ＮＯ．２ |
17630-11050 |
— | ||
|
17630
|
17630
17630-11060
Valve Assy, Air Control
[06.1991 -] 5EFE..EE103;4EFE..EE102..5F;4EFE..EE102..3FC..02S;4EFE,5EFE..EE101,104..L,LX,XE; 4EFE..EE101..DX;4EFE..EE102..4F..02S;4EFE..EE102..(3FC,4F)..05S ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
17630-11060 |
— | ||
|
23265
|
23265
90917-11030 Filter, Gas, No.1[06.1991 -] 4EFE,5EFE..EE101,102,103,104 |
90917-11030 |
from US $8.56 |
||
|
23826
|
23826
23826-22060 Hose, Fuel Vapor Feed, No.1[08.2000 -] 4EFE,5EFE..EE10# |
23826-22060 |
US $4.66 |
||
|
23826A
|
23826A
96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)[08.2000 -] 4EFE,5EFE..EE10# |
96132-41100 |
US $1.92 |
||
| replacement | |||||
|
23826A
|
23826A
96132-51100 Clip (For Hose)[08.2000 -] 4EFE,5EFE..EE10# |
96132-51100 |
from US $1.68 |
||
|
23827A
|
23827A
23827-11030 Hose, Fuel Vapor Feed, No.2[08.2000 -] 4EFE,5EFE..EE10# |
23827-11030 |
US $11.94 |
||
|
23827B
|
23827B
96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)[08.2000 -] 4EFE,5EFE..EE10# |
96132-41100 |
US $1.92 |
||
| replacement | |||||
|
23827B
|
23827B
96132-51100 Clip (For Hose)[08.2000 -] 4EFE,5EFE..EE10# |
96132-51100 |
from US $1.68 |
||
|
23829A
|
23829A
23829-11030 Hose, Fuel Vapor Feed[08.2000 -] 4EFE,5EFE..EE10# |
23829-11030 |
US $15 |
||
|
23829B
|
23829B
96132-41300
Clip, No.4(For Idle-Up Hose)
[08.2000 -] 4EFE,5EFE..EE10# |
96132-41300 |
— | ||
| replacement | |||||
|
23829B
|
23829B
96132-51300 Clip(For Ventilation Hose No.2)[08.2000 -] 4EFE,5EFE..EE10# |
96132-51300 |
from US $1.56 |
||
|
25719
|
25719
25719-62040 Tank, Vacuum Surge[08.2000 -] 4EFE,5EFE..EE10# |
25719-62040 |
US $14.69 |
||
|
25760
|
25760
25760-11230 Hose Assy, Vacuum Transmitting[06.1991 - 04.1997] 4EFE,5EFE..EE101,102,103,104 ＮＯ．３ |
25760-11230 |
US $66.10 |
||
|
25760
|
25760
25760-11250 Hose Assy, Vacuum Transmitting[06.1991 - 04.1997] 5EFE..EE103;4EFE,5EFE..EE101,104..L,LX,XE ＮＯ．１; 4EFE..EE101,102..DX,DXJ ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ),ＮＯ．１ |
25760-11250 |
US $56.78 |
||
|
25760
|
25760
25760-11260
Hose Assy, Vacuum Transmitting
[06.1991 - 04.1997] 4EFE..EE101,102..DX,DXJ ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ),ＮＯ．２ |
25760-11260 |
— | ||
|
25860
|
25860
25860-11320
Valve Assy, Vacuum Switching, No.1
[04.1997 - 08.2000] 4EFE,5EFE..EE10# |
25860-11320 |
— | ||
|
25860
|
25860
25860-11370 Valve Assy, Vacuum Switching, No.1[08.2000 -] 4EFE,5EFE..EE10# |
25860-11370 |
US $74.26 |
||
|
9011906316
|
9011906316
90119-06316 New Genuine Part |
90119-06316 |
US $1.75 |
||
|
9033905012
|
9033905012
90339-05012 New Genuine Part |
90339-05012 |
US $6.08 |
||
|
9044708083
|
9044708083
90447-08083
Hose, Front Differential Vacuum, No.3
|
90447-08083 |
— | ||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
