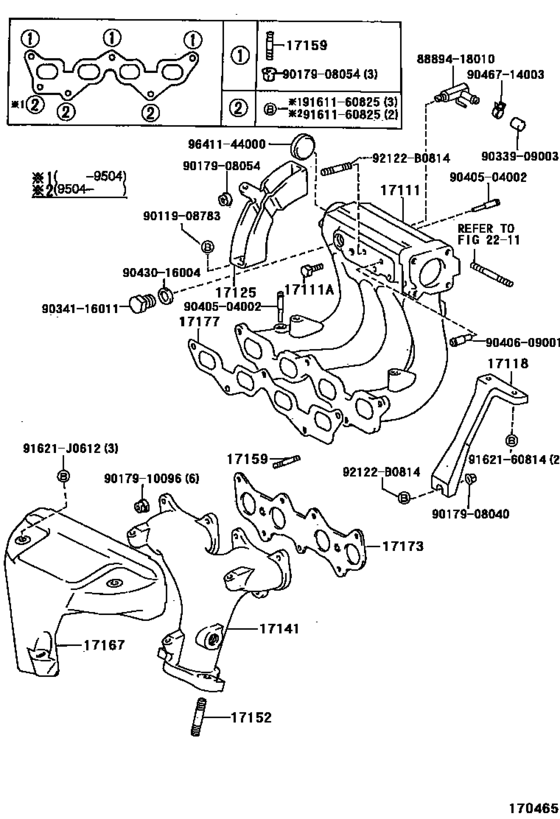

Manifold ([01.1994 - 04.1997] (9401-9704)5EFE) Diagram Toyota COROLLA
- Year
- 1994 - 1997
- Sales region
- General
- Frame
- EE104
- grade
- L
- body
- WG
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 01.1994
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-11261 Manifold, Intake[01.1994 - 04.1995] 5EFE..EE104 |
17101-11261 |
US $299.94 |
||
|
17111
|
17111
17101-11262 Manifold, Intake[04.1995 - 04.1997] 5EFE..EE104 |
17101-11262 |
US $299.94 |
||
|
17111A
|
17111A
90345-51006 Plug, W/head Taper Screw, No.2[12.1992 - 04.1997] 4EFE,5EFE..EE101,104 |
90345-51006 |
from US $0.96 |
||
|
17118
|
17118
17118-11180
Stay, Manifold
[01.1994 - 04.1997] 5EFE..EE104 |
17118-11180 |
— | ||
|
17125
|
17125
17125-11030 Stay, Surge Tank, No.1[05.1992 - 12.1995] 4EFE,5EFE..EE101,104 |
17125-11030 |
US $19.36 |
||
|
17125
|
17125
17125-11060 Stay, Surge Tank, No.1[12.1995 - 05.1997] 5EFE..EE104 |
17125-11060 |
US $19.36 |
||
|
17141
|
17141
17141-11280 Manifold, Exhaust[01.1994 - 04.1997] 5EFE..EE104 |
17141-11280 |
US $365.46 |
||
|
17152
|
17152
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[09.1991 - 04.1997] 3E,5EFE..EE104,108 |
90116-10017 |
from US $2.92 |
||
|
17159
|
17159
90116-10196 Bolt, Stud(For Manifold To Cylinder Head)[02.1995 - 04.1997] 4EFE,5EFE..EE101,104 EXHAUST MANIFOLD |
90116-10196 |
US $3.68 |
||
|
17159
|
17159
92122-61025 Bolt, Stud(For Manifold To Cylinder Head)[01.1994 - 02.1995] 4EFE,5EFE..EE101,104 EXHAUST MANIFOLD |
92122-61025 |
US $3.68 |
||
|
17159
|
17159
92132-60825 Bolt, Stud(For Manifold To Cylinder Head)[01.1994 - 04.1997] 4EFE,5EFE..EE101,104 INTAKE MANIFOLD |
92132-60825 |
US $3.20 |
||
|
17167
|
17167
17167-11210 Insulator, Exhaust Manifold Heat, No.1[01.1994 - 04.1997] 5EFE..EE104 |
17167-11210 |
US $90.27 |
||
| replacement | |||||
|
17167
|
17167
17167-11211 Insulator, Exhaust Manifold Heat, No.1[01.1994 - 04.1997] 5EFE..EE104 |
17167-11211 |
US $88.82 |
||
|
17173
|
17173
17173-11050 Gasket, Exhaust Manifold To Head[01.1994 - 04.1997] 5EFE..EE104 |
17173-11050 |
from US $15.85 |
||
|
17177
|
17177
17177-11020
Gasket, Intake Manifold To Head, No.1
[05.1992 - 09.1994] 4EFE,5EFE..EE101,104 |
17177-11020 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-11021
Gasket, Intake Manifold To Head, No.1
[05.1992 - 09.1994] 4EFE,5EFE..EE101,104 |
17177-11021 |
— | ||
|
17177
|
17177
17177-11021
Gasket, Intake Manifold To Head, No.1
[09.1994 - 04.1995] 4EFE,5EFE..EE101,104 |
17177-11021 |
— | ||
|
17177
|
17177
17177-11070 Gasket, Intake Manifold To Head, No.1[04.1995 - 04.1997] 4EFE,5EFE..EE101,104 |
17177-11070 |
from US $8.79 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
92122B0814
|
92122B0814
92122-B0814 New Genuine Part |
92122-B0814 |
US $2.04 |
||
|
8889418010
|
8889418010
88894-18010
Joint, No.1 (For Idle Up Divice)
|
88894-18010 |
— | ||
|
9011908783
|
9011908783
90119-08783 BOLT WWASHER |
90119-08783 |
from US $1.08 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017908054
|
9017908054
90179-08054 Nut (For Connecting Rod Swivel) |
90179-08054 |
US $1.60 |
||
|
9017910096
|
9017910096
90179-10096 New Genuine Part |
90179-10096 |
US $2.56 |
||
|
9033909003
|
9033909003
90339-09003 Plug(For Vacuum Hose Union) |
90339-09003 |
from US $3.36 |
||
|
9034116011
|
9034116011
90341-16011 New Genuine Part |
90341-16011 |
US $4.66 |
||
|
9040504002
|
9040504002
90405-04002
Union, Vacuum Hose
|
90405-04002 |
— | ||
|
9040609001
|
9040609001
90406-09001 Union(For Positive Crankcase Ventilation) |
90406-09001 |
US $2.62 |
||
|
9043016004
|
9043016004
90430-16004 Gasket, Union Bolt |
90430-16004 |
US $0.55 |
||
|
9046714003
|
9046714003
90467-14003 Clip Or Clamp(For Ventilation Hose) |
90467-14003 |
US $2.08 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
|
9162160814
|
9162160814
91621-60814
Bolt (For Transmission Control Cable Bracket)
|
91621-60814 |
— | ||
| replacement | |||||
|
9162160814
|
9162160814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.82 |
||
|
9641144000
|
9641144000
96411-44000 Plug, Tight, No.1 |
96411-44000 |
from US $4.19 |
||
