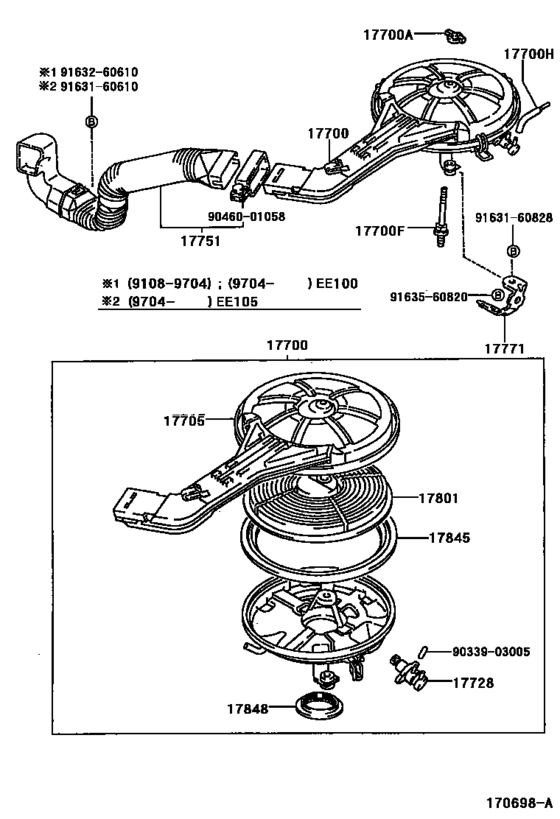

Air Cleaner ([08.1991 - ] (9108- )2E) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- EE105
- grade
- STD
- body
- WG
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-11780 Cleaner Assy, AirAIR [08.1991 - 10.1993] 2E..EE100..LHD..3FC;2E..EE100,105..MTM..(STD,XL)..GEN W(PRE AIR CLEANER & HOT AIR INTAKE) |
17700-11780 |
US $174.72 |
||
|
17700
|
17700
17700-11790 Cleaner Assy, AirAIR [05.1992 -] 2E..EE105;2E..EE100..RHD..GL;2E..EE100..LHD..SED..(STD,XL)..(GEN,TUR) MARK 11790 |
17700-11790 |
US $174.72 |
||
|
17700
|
17700
17700-11800
Cleaner Assy, Air
[08.1991 - 04.1997] 2E..EE100,105..GCC,GEN MARK 11800 |
17700-11800 |
— | ||
|
17700A
|
17700A
90175-06010
Nut, Wing(For Air Cleaner)
[08.1991 - 04.1997] 2E,3E..EE100,105,108 |
90175-06010 |
— | ||
|
17700F
|
17700F
90116-06142 Bolt, Stud(For Air Cleaner Setting)[08.1991 - 04.1997] 2E..EE100,105 |
90116-06142 |
US $2.53 |
||
|
17700H
|
17700H
17341-10010 Hose, No.1(For Air Injection System)[08.1991 - 04.1997] 2E,3E..EE100,105,108 |
17341-10010 |
US $12.06 |
||
|
17705
|
17705
17705-11190 Cap Sub-Assy, Air CleanerAIR CLEANER [08.1991 - 04.1997] 2E..EE100,105..GCC,GEN |
17705-11190 |
US $70.18 |
||
|
17705
|
17705
17705-11360
Cap Sub-Assy, Air Cleaner
[08.1991 - 04.1997] 2E..EE100,105..GEN W(HOT AIR INTAKE) |
17705-11360 |
— | ||
|
17705
|
17705
17705-11370
Cap Sub-Assy, Air Cleaner
[08.1991 - 10.1993] 2E..EE100,105 W(PRE AIR CLEANER & POWER STEERING) |
17705-11370 |
— | ||
|
17728
|
17728
17728-11080
Valve, Thermostatic
[08.1991 - 04.1997] 2E,3E..EE100,105,108 |
17728-11080 |
— | ||
|
17751
|
17751
17750-11010 Inlet, Air Cleaner, No.1[08.1991 - 10.1994] 2E..EE100,105 |
17750-11010 |
US $54.16 |
||
| replacement | |||||
|
17751
|
17751
17750-11011 Inlet, Air Cleaner, No.1AIR CLEANER, NO.1 [08.1991 - 10.1994] 2E..EE100,105 |
17750-11011 |
US $54.31 |
||
|
17751
|
17751
17750-11011 Inlet, Air Cleaner, No.1AIR CLEANER, NO.1 [10.1994 - 04.1997] 2E..EE100,105 |
17750-11011 |
US $54.31 |
||
|
17771
|
17771
17771-11020
Bracket, Air Cleaner Inlet Duct
[08.1991 - 04.1997] 2E..EE100,105 |
17771-11020 |
— | ||
|
17801
|
17801
17801-11100 Element Sub-Assy, Air Cleaner Filter[08.1991 - 04.1997] 2E..EE100,105 |
17801-11100 |
from US $17.30 |
||
|
17845
|
17845
17845-10020
Gasket, Filter Element
[08.1991 - 04.1997] 2E,3E..EE100,105,108 |
17845-10020 |
— | ||
|
17848
|
17848
17848-10021 Gasket, Air Cleaner To Carburetor[08.1991 - 04.1997] 2E,3E..EE100,105,108 |
17848-10021 |
US $5.24 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.76 |
||
|
9046001058
|
9046001058
90460-01058 Clamp, Hose(For Precleaner Hose) |
90460-01058 |
US $3.20 |
||
|
9163160610
|
9163160610
91631-60610
New Genuine Part
|
91631-60610 |
— | ||
| replacement | |||||
|
9163160610
|
9163160610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.16 |
||
|
9163260610
|
9163260610
91632-60610 New Genuine Part |
91632-60610 |
US $1.46 |
||
| replacement | |||||
|
9163260610
|
9163260610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
9163560820
|
9163560820
91635-60820 BOLTWWASHER |
91635-60820 |
US $1.75 |
||
| replacement | |||||
|
9163560820
|
9163560820
91631-B0818 BOLTWWASHER |
91631-B0818 |
US $2.08 |
||
