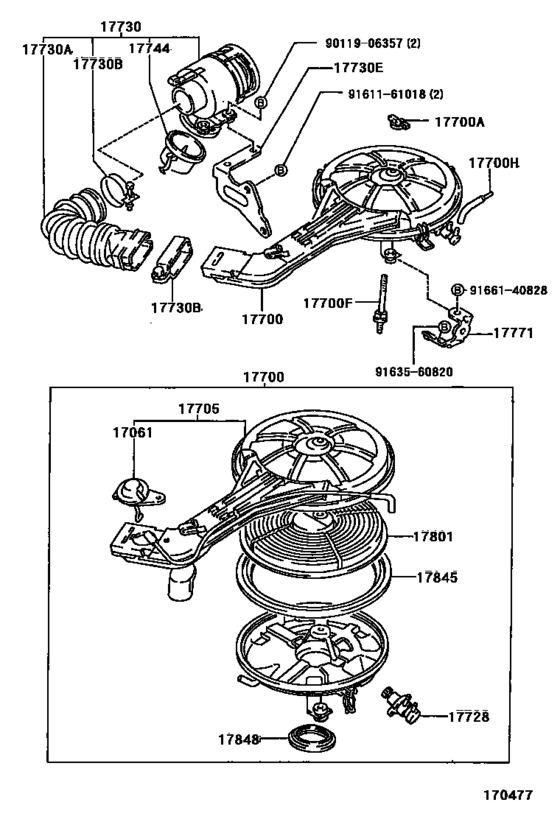

Air Cleaner ([08.1991 - ] W(POWER STEERING & PRE AIR CLEANER) (9108- )2E) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- EE105
- grade
- STD
- body
- WG
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-10010
Diaphragm Sub-Assy
[08.1991 - 04.1997] 2E..EE100,105..GEN,TUR |
17061-10010 |
— | ||
|
17700
|
17700
17700-11780 Cleaner Assy, AirAIR [08.1991 - 10.1993] 2E..EE100..LHD..3FC;2E..EE100,105..MTM..(STD,XL)..GEN W(PRE AIR CLEANER & HOT AIR INTAKE) |
17700-11780 |
US $174.72 |
||
|
17700
|
17700
17700-11790 Cleaner Assy, AirAIR [05.1992 -] 2E..EE105;2E..EE100..RHD..GL;2E..EE100..LHD..SED..(STD,XL)..(GEN,TUR) MARK 11790 |
17700-11790 |
US $174.72 |
||
|
17700
|
17700
17700-11800
Cleaner Assy, Air
[08.1991 - 04.1997] 2E..EE100,105..GCC,GEN MARK 11800 |
17700-11800 |
— | ||
|
17700A
|
17700A
90175-06010
Nut, Wing(For Air Cleaner)
[08.1991 - 04.1997] 2E,3E..EE100,105,108 |
90175-06010 |
— | ||
|
17700F
|
17700F
90116-06142 Bolt, Stud(For Air Cleaner Setting)[08.1991 - 04.1997] 2E..EE100,105 |
90116-06142 |
US $2.53 |
||
|
17700H
|
17700H
17341-10010 Hose, No.1(For Air Injection System)[08.1991 - 04.1997] 2E,3E..EE100,105,108 |
17341-10010 |
US $12.06 |
||
|
17705
|
17705
17705-11190 Cap Sub-Assy, Air CleanerAIR CLEANER [08.1991 - 04.1997] 2E..EE100,105..GCC,GEN |
17705-11190 |
US $70.18 |
||
|
17705
|
17705
17705-11360
Cap Sub-Assy, Air Cleaner
[08.1991 - 04.1997] 2E..EE100,105..GEN W(HOT AIR INTAKE) |
17705-11360 |
— | ||
|
17705
|
17705
17705-11370
Cap Sub-Assy, Air Cleaner
[08.1991 - 10.1993] 2E..EE100,105 W(PRE AIR CLEANER & POWER STEERING) |
17705-11370 |
— | ||
|
17728
|
17728
17728-11080
Valve, Thermostatic
[08.1991 - 04.1997] 2E,3E..EE100,105,108 |
17728-11080 |
— | ||
|
17730
|
17730
17730-11050 Precleaner Assy, Air W/hose[05.1992 - 10.1993] 2E..EE100,105 |
17730-11050 |
US $224.22 |
||
|
17730
|
17730
17730-11060 Precleaner Assy, Air W/hoseAIR W/HOSE [03.1992 - 10.1993] 2E..EE100,105 W(POWER STEERING) |
17730-11060 |
US $208.21 |
||
|
17730A
|
17730A
17881-11080 Hose, PrecleanerPRECLEANER [08.1991 - 10.1993] 2E..EE100,105 |
17881-11080 |
US $51.11 |
||
|
17730A
|
17730A
17881-11390
Hose, Precleaner
[03.1992 - 10.1993] 2E..EE100,105 W(POWER STEERING) |
17881-11390 |
— | ||
|
17730B
|
17730B
90460-01005 Clamp(For Air Cleaner Hose, No.2)[08.1991 - 10.1993] 2E..EE100,105 W(POWER STEERING) |
90460-01005 |
US $4.40 |
||
|
17730B
|
17730B
90460-01058 Clamp, Hose(For Precleaner Hose)[08.1991 - 04.1997] 2E..EE100,105..GEN W(HOT AIR INTAKE & PRE AIR CLEANER) |
90460-01058 |
US $3.20 |
||
|
17730E
|
17730E
17741-11010 Bracket, Precleaner, No.1PRECLEANER, NO.1 [08.1991 - 10.1993] 2E..EE100,105 |
17741-11010 |
US $60.72 |
||
|
17730E
|
17730E
17741-11030 Bracket, Precleaner, No.1PRECLEANER, NO.1 [03.1992 - 10.1993] 2E..EE100,105 W(POWER STEERING) |
17741-11030 |
US $23.88 |
||
|
17744
|
17744
17744-16020
Cup, Precleaner
[05.1992 - 04.1997] 2E..EE100,105..GCC,GEN |
17744-16020 |
— | ||
|
17771
|
17771
17771-11020
Bracket, Air Cleaner Inlet Duct
[08.1991 - 04.1997] 2E..EE100,105 |
17771-11020 |
— | ||
|
17801
|
17801
17801-11100 Element Sub-Assy, Air Cleaner Filter[08.1991 - 04.1997] 2E..EE100,105 |
17801-11100 |
from US $17.30 |
||
|
17845
|
17845
17845-10020
Gasket, Filter Element
[08.1991 - 04.1997] 2E,3E..EE100,105,108 |
17845-10020 |
— | ||
|
17848
|
17848
17848-10021 Gasket, Air Cleaner To Carburetor[08.1991 - 04.1997] 2E,3E..EE100,105,108 |
17848-10021 |
US $5.24 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9161161018
|
9161161018
91611-61018
Bolt (For Transfer Case)Cover No.2
|
91611-61018 |
— | ||
| replacement | |||||
|
9161161018
|
9161161018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9163560820
|
9163560820
91635-60820 BOLTWWASHER |
91635-60820 |
US $1.75 |
||
| replacement | |||||
|
9163560820
|
9163560820
91631-B0818 BOLTWWASHER |
91631-B0818 |
US $2.08 |
||
|
9166140828
|
9166140828
91661-40828
New Genuine Part
|
91661-40828 |
— | ||
