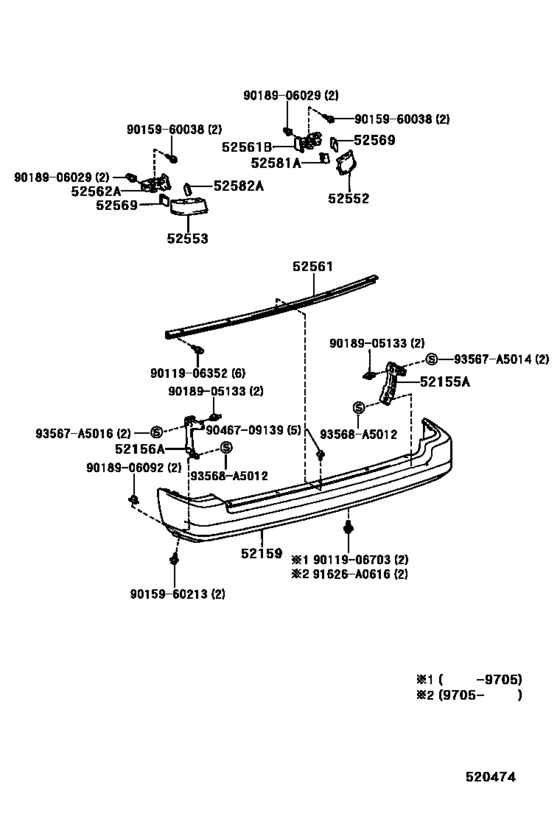

Rear Bumper & Bumper Stay ([09.1991 - ] (9109- )WG) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- EE105
- grade
- STD
- body
- WG
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52155A
|
52155A
52155-13050 Support, Rear Bumper Side, Rh[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
52155-13050 |
US $20.11 |
||
|
52156A
|
52156A
52156-13050 Support, Rear Bumper Side, Lh[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
52156-13050 |
US $20.11 |
||
|
52159
|
52159
52159-13080 Cover, Rear Bumper[09.1991 - 10.1999] AE101,EE100,104,105,108..WG |
52159-13080 |
US $329.35 |
||
|
52552
|
52552
52552-13020 Filler, Rear Bumper, Rh[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
52552-13020 |
US $14.56 |
||
|
52553
|
52553
52553-13020
Filler, Rear Bumper, Lh
[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
52553-13020 |
— | ||
|
52561
|
52561
52561-13030 Retainer, Rear Bumper, Upper Center[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
52561-13030 |
US $58.82 |
||
|
52561B
|
52561B
52561-13040 Retainer, Rear Bumper Filler, No.1[09.1991 - 10.1992] AE101,EE100,105,108..WG |
52561-13040 |
US $19.95 |
||
| replacement | |||||
|
52561B
|
52561B
52561-13041 Retainer, Rear Bumper Filler, No.1[09.1991 - 10.1992] AE101,EE100,105,108..WG |
52561-13041 |
US $19.95 |
||
|
52561B
|
52561B
52561-13041 Retainer, Rear Bumper Filler, No.1[10.1992 - 09.1995] AE101,EE100,104,105,108..WG |
52561-13041 |
US $19.95 |
||
|
52562A
|
52562A
52562-13020 Retainer, Rear Bumper Filler, No.2[09.1991 - 10.1992] AE101,EE100,105,108..WG |
52562-13020 |
US $19.95 |
||
| replacement | |||||
|
52562A
|
52562A
52562-13021
Retainer, Rear Bumper Filler, No.2
[09.1991 - 10.1992] AE101,EE100,105,108..WG |
52562-13021 |
— | ||
|
52562A
|
52562A
52562-13021
Retainer, Rear Bumper Filler, No.2
[10.1992 - 09.1995] AE101,EE100,104,105,108..WG |
52562-13021 |
— | ||
|
52569
|
52569
52569-13010 Pad, Rear Bumper Filler[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
52569-13010 |
US $2.52 |
||
|
52581A
|
52581A
52581-13020 Protector, Rear Bumper Filler[09.1991 - 09.1992] AE101,EE100,105,108..WG |
52581-13020 |
US $2.77 |
||
|
52582A
|
52582A
52582-13020 Protector, Rear Bumper Filler, Lh[09.1991 - 09.1992] AE101,EE100,105,108..WG |
52582-13020 |
US $2.48 |
||
|
91626A0616
|
91626A0616
91626-A0616 BOLT WWASHER |
91626-A0616 |
US $5.44 |
||
|
93567A5014
|
93567A5014
93567-A5014 SCREW TAPPING |
93567-A5014 |
from US $0.74 |
||
|
93567A5016
|
93567A5016
93567-A5016 New Genuine Part |
93567-A5016 |
US $1.92 |
||
|
93568A5012
|
93568A5012
93568-A5012 SCREW TAPPING |
93568-A5012 |
US $0.79 |
||
|
9011906352
|
9011906352
90119-06352
New Genuine Part
|
90119-06352 |
— | ||
| replacement | |||||
|
9011906352
|
9011906352
90119-06430 BOLT WWASHER |
90119-06430 |
from US $1.54 |
||
|
9011906703
|
9011906703
90119-06703 New Genuine Part |
90119-06703 |
US $1.60 |
||
|
9015960038
|
9015960038
90159-60038 SCREWTAPPING |
90159-60038 |
US $3.04 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.28 |
||
|
9018905133
|
9018905133
90189-05133 CLIP |
90189-05133 |
from US $0.92 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
from US $0.98 |
||
|
9018906092
|
9018906092
90189-06092 New Genuine Part |
90189-06092 |
US $1.75 |
||
|
9046709139
|
9046709139
90467-09139 CLIP |
90467-09139 |
from US $3.84 |
||
