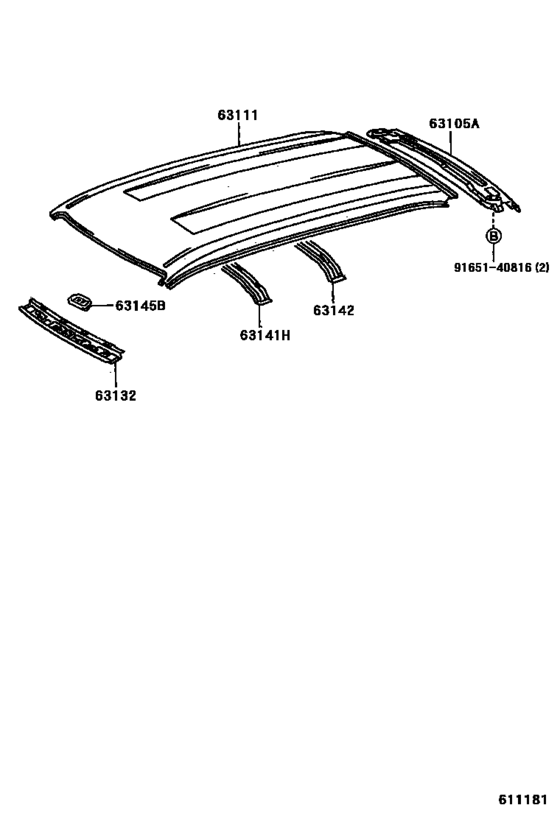

Roof Panel & Back Window Glass ([09.1991 - ] (9109- )WG) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- EE105
- grade
- STD
- body
- WG
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63105A
|
63105A
63105-13070 Frame Sub-Assy, Back Door Opening[09.1991 - 10.1999] EE104,105,108 |
63105-13070 |
US $100.46 |
||
|
63111
|
63111
63111-13190 Panel, Roof[09.1991 - 10.1999] AE101,EE100,104,105,108..WG |
63111-13190 |
US $697.42 |
||
| replacement | |||||
|
63111
|
63111
63111-13191 Panel, Roof[09.1991 - 10.1999] AE101,EE100,104,105,108..WG |
63111-13191 |
US $697.42 |
||
|
63132
|
63132
63102-13020 Panel, Windshield Header, Inner[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
63102-13020 |
US $47.32 |
||
|
63141H
|
63141H
63141-13060 Reinforcement, Roof Panel, Center[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
63141-13060 |
US $57.08 |
||
|
63142
|
63142
63142-13050 Reinforcement, Roof Panel, No.2[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
63142-13050 |
US $57.08 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
