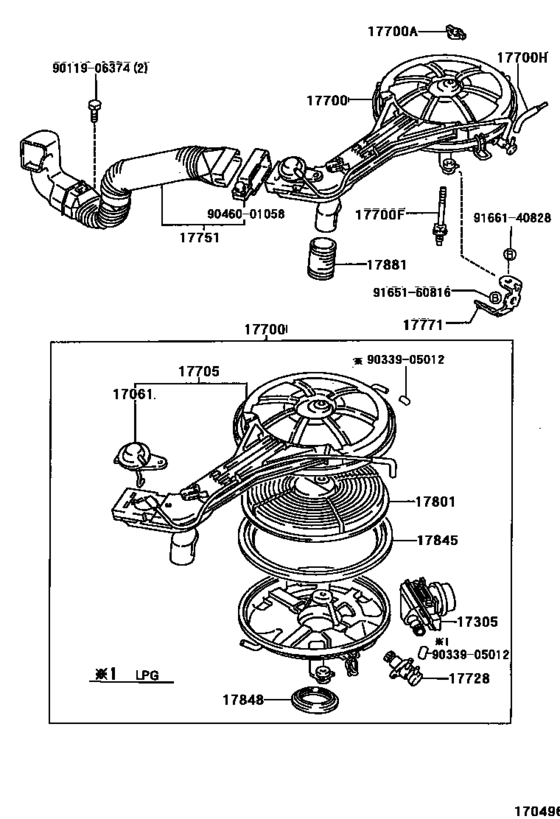

Air Cleaner ([09.1991 - 01.1994] (9109-9401)2E) Diagram Toyota COROLLA
- Year
- 1991 - 1994
- Sales region
- Japan
- Frame
- EE106
- grade
- DX
- body
- V
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 09.1991
- To
- 01.1994
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-10010
Diaphragm Sub-Assy
[09.1991 - 01.1994] 2E..EE106 |
17061-10010 |
— | ||
|
17305
|
17305
17350-11050 Valve Sub-Assy, Reed[09.1991 - 01.1994] 2E,3E..EE106,107,108 |
17350-11050 |
US $173.26 |
||
|
17700
|
17700
17700-11760 Cleaner Assy, Air[09.1991 - 01.1994] 2E..EE106 |
17700-11760 |
US $675.58 |
||
|
17700A
|
17700A
90175-06010
Nut, Wing(For Air Cleaner)
[09.1991 - 01.1994] 2E,3E..EE106,107,108 |
90175-06010 |
— | ||
|
17700F
|
17700F
90116-06142 Bolt, Stud(For Air Cleaner Setting)[09.1991 - 01.1994] 2E..EE106 |
90116-06142 |
US $2.53 |
||
|
17700H
|
17700H
17341-10010 Hose, No.1(For Air Injection System)[09.1991 - 01.1994] 2E,3E..EE106,107,108 |
17341-10010 |
US $12.06 |
||
|
17705
|
17705
17705-11520
Cap Sub-Assy, Air Cleaner
[09.1991 - 01.1994] 2E..EE106 |
17705-11520 |
— | ||
|
17728
|
17728
17728-11080
Valve, Thermostatic
[09.1991 - 01.1994] 2E,3E..EE106,107,108 |
17728-11080 |
— | ||
|
17751
|
17751
17750-11010 Inlet, Air Cleaner, No.1[09.1991 - 01.1994] 2E..EE106 |
17750-11010 |
US $54.16 |
||
| replacement | |||||
|
17751
|
17751
17750-11011 Inlet, Air Cleaner, No.1AIR CLEANER, NO.1 [09.1991 - 01.1994] 2E..EE106 |
17750-11011 |
US $54.31 |
||
|
17771
|
17771
17771-11020
Bracket, Air Cleaner Inlet Duct
[09.1991 - 01.1994] 2E..EE106 |
17771-11020 |
— | ||
|
17801
|
17801
17801-11100 Element Sub-Assy, Air Cleaner Filter[09.1991 - 01.1994] 2E..EE106 |
17801-11100 |
from US $17.30 |
||
|
17845
|
17845
17845-10020
Gasket, Filter Element
[09.1991 - 01.1994] 2E,3E..EE106,107,108 |
17845-10020 |
— | ||
|
17848
|
17848
17848-10021 Gasket, Air Cleaner To Carburetor[09.1991 - 01.1994] 2E,3E..EE106,107,108 |
17848-10021 |
US $5.24 |
||
|
17881
|
17881
17881-10032
Hose, Air Cleaner, No.1
[09.1991 - 10.1991] 2E..EE106 |
17881-10032 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-10033 Hose, Air Cleaner, No.1[09.1991 - 10.1991] 2E..EE106 |
17881-10033 |
US $4.89 |
||
|
17881
|
17881
17881-10033 Hose, Air Cleaner, No.1[10.1991 - 01.1994] 2E..EE106 |
17881-10033 |
US $4.89 |
||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.96 |
||
|
9033905012
|
9033905012
90339-05012 New Genuine Part |
90339-05012 |
US $6.08 |
||
|
9046001058
|
9046001058
90460-01058 Clamp, Hose(For Precleaner Hose) |
90460-01058 |
US $3.20 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9166140828
|
9166140828
91661-40828
New Genuine Part
|
91661-40828 |
— | ||
