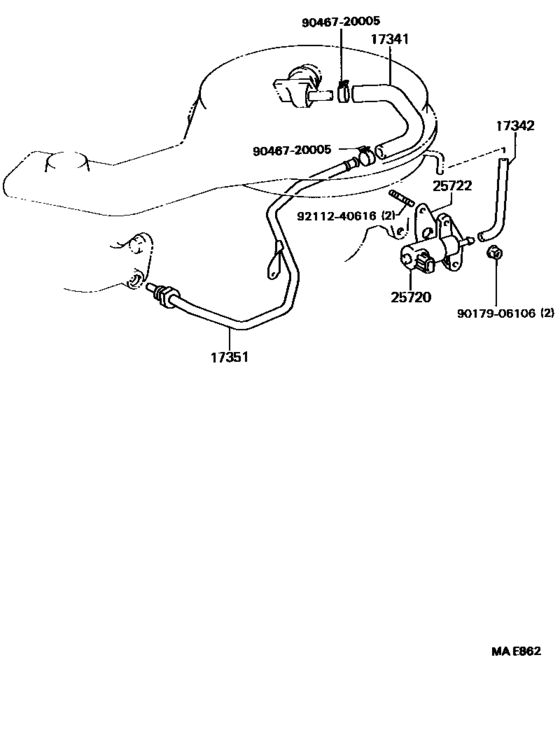

Manifold Air Injection System ([09.1991 - 01.1994] (9109-9401)3E) Diagram Toyota COROLLA
- Year
- 1991 - 1994
- Sales region
- General
- Frame
- EE108
- grade
- L
- body
- WG
- ENGINE
- 3E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1991
- To
- 01.1994
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341
|
17341
17341-11120 Hose, No.1(For Air Injection System)[09.1991 - 01.1994] 3E..EE108 |
17341-11120 |
US $16.31 |
||
|
17342
|
17342
17342-11090 Hose, No.2(For Air Injection System)[09.1991 - 01.1994] 3E..EE108 |
17342-11090 |
US $28.25 |
||
|
17351
|
17351
17306-11090 Manifold, Air Injection[09.1991 - 01.1994] 3E..EE108 |
17306-11090 |
US $41.79 |
||
|
25720
|
25720
25720-11080 Valve Assy, Electric Air Control[09.1991 - 01.1994] 3E..EE108 |
25720-11080 |
US $460.10 |
||
|
25722
|
25722
25722-11010 Gasket, Electric Air Control Valve[09.1991 - 01.1994] 3E..EE108 |
25722-11010 |
US $4.66 |
||
|
9017906106
|
9017906106
90179-06106 NUT |
90179-06106 |
US $1.92 |
||
|
9046720005
|
9046720005
90467-20005
Clip(For Ventilation Hose No.2)
|
90467-20005 |
— | ||
| replacement | |||||
|
9046720005
|
9046720005
96134-41900 Clip Or Clamp(For Ventilation Hose) |
96134-41900 |
from US $1.44 |
||
|
9211240616
|
9211240616
92112-40616
Bolt, Stud(For Cold Start Injector)
|
92112-40616 |
— | ||
