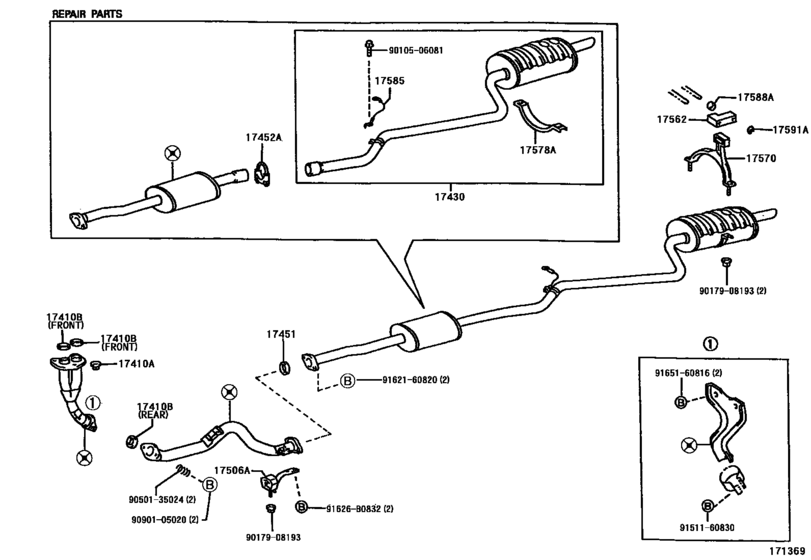

Exhaust Pipe ([11.1997 - ] (9711- )2E..PHL,VEN) Diagram Toyota COROLLA
- Year
- 1997 - 2004
- Sales region
- General
- Frame
- EE110
- grade
- XL
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.1997
- To
- 11.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[04.1997 - 01.1999] 4AFE..AE111..MA;4AFE..AE111..GLI,XLI;4AF,7AFE,2E..AE111,112,EE110 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[04.1997 - 01.1999] 4AFE..AE111..MA;4AFE..AE111..GLI,XLI;4AF,7AFE,2E..AE111,112,EE110 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06069 Gasket, Exhaust Pipe[04.1997 -] 2E..EE110 FRONT |
90917-06069 |
US $5.76 |
||
|
17410B
|
17410B
90917-06080 Gasket, Exhaust Pipe[04.1997 - 10.1999] 2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);5AFE,2C,4EFE..AE110,CE110,EE111..(XL ,XLI)..GEN REAR; 2C,2E..CE110,EE110;4EFE..EE111..GLI,XLI;5AFE,2CE..AE110,CE110..NZ,TH REAR |
90917-06080 |
from US $16.03 |
||
|
17430
|
17430
17430-11820 Pipe Assy, Exhaust, TailEXHAUST, TAIL [04.1997 - 11.1998] 4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL,VEN);4AF,7AFE,2E..AE111,112,EE110..GCC, GEN,GENKD,IDN,PHL,VEN W/O(CONVERTER) |
17430-11820 |
US $476.11 |
||
| replacement | |||||
|
17430
|
17430
17430-11821 Pipe Assy, Exhaust, TailEXHAUST, TAIL [04.1997 - 11.1998] 4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL,VEN);4AF,7AFE,2E..AE111,112,EE110..GCC, GEN,GENKD,IDN,PHL,VEN W/O(CONVERTER) |
17430-11821 |
US $477.57 |
||
|
17430
|
17430
17430-11821 Pipe Assy, Exhaust, TailEXHAUST, TAIL [11.1998 - 09.1999] 2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF#,7AFE..AE111,112..GCC,GEN,VEN W/O(CONVERTER); 4AF#,7AFE,2E..AE111,112,EE110..GCC,GEN,GENKD,IDN,PHL,VEN W/O(CONVERTER) |
17430-11821 |
US $477.57 |
||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[11.1997 - 09.1999] 4AFE,7AFE,2E..AE111,112,EE110..PHL,VEN W/O(CONVERTER) |
90917-06039 |
from US $2.36 |
||
|
17452A
|
17452A
17452-16120 Clamp, Exhaust Pipe[04.1997 - 09.1999] 4AFE..AE111..VEN;2E..EE110..LHD..3FC;7AFE..AE112..GEN,VEN;2E..EE110..MTM..(GCC,GEN ); 4AFE..AE111..MA,VEN;7AFE..AE112..GEN,VEN;2E..EE110..GCC,GEN,GENKD,PHL,VEN |
17452-16120 |
US $31.62 |
||
|
17506A
|
17506A
17506-11100 Bracket Sub-Assy, Exhaust Pipe No.1 Support[04.1997 -] 2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF,5AFE..AE110,111..GL,GLI,XL;4AFE. .AE111..RHD..(GLI,XLI)..GEN;7AFE,4EFE..AE112,EE111..ARL,GCC,GEN,VEN;4AFE..AE111..L HD..SED..(GCC,GEN,TUR,VEN); 5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG.. |
17506-11100 |
US $45.78 |
||
|
17562
|
17562
17562-16240 Support, Exhaust Pipe, No.2[04.1997 -] 5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE ..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE ,7AFE,2C#,2E..AE11#,CE110,EE110..GL,GLI,SEG,STD,XL |
17562-16240 |
from US $18.60 |
||
|
17570
|
17570
17570-16020 Bracket Assy, Exhaust Pipe Support[04.1997 - 06.2003] 4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(G LI,XLI);7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF,7AFE,2CE,2E..AE111,112,CE110,EE110. .GL,GLI,SEG,STD,XL |
17570-16020 |
from US $17.96 |
||
|
17570
|
17570
17570-16030
Bracket Assy, Exhaust Pipe Support
[06.2003 -] 2E..EE110 |
17570-16030 |
— | ||
|
17578A
|
17578A
17578-11030 Clamp, Muffler[11.1998 -] 4AFE..AE111..LHD..GEN;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE..AE111..ARL,GCC,GENK D,MA,PHL,VEN;4AF,7AFE,2E..AE111,112,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GE NKD,IDN,PHL,VEN) |
17578-11030 |
US $43.68 |
||
|
17578A
|
17578A
17578-16040 Clamp, MufflerMUFFLER [04.1997 - 08.1998] 4AFE..AE111..MA;4AFE..AE111..4FC..TUR;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PH L,VEN);4AF,7AFE,2CE,2E..AE111,112,CE110,EE110..GCC,GEN,GENKD,IDN,NZ,PHL,VEN |
17578-16040 |
US $28.10 |
||
| replacement | |||||
|
17578A
|
17578A
17578-11030 Clamp, Muffler[04.1997 - 08.1998] 4AFE..AE111..MA;4AFE..AE111..4FC..TUR;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PH L,VEN);4AF,7AFE,2CE,2E..AE111,112,CE110,EE110..GCC,GEN,GENKD,IDN,NZ,PHL,VEN |
17578-11030 |
US $43.68 |
||
|
17585
|
17585
17585-16060 Hanger, Exhaust Pipe[04.1997 - 09.1999] 5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..4FC..TUR;4AFE..AE111 ..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN);4AF,7AFE,2E,4EFE..AE111,112,EE11#.. ARL,BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,VEN |
17585-16060 |
US $9.03 |
||
|
17588A
|
17588A
17588-16020 Spacer, Exhaust Pipe Hanger[04.1997 -] 5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE ..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE ,7AFE,2C#,2E..AE11#,CE110,EE110..GL,GLI,SEG,STD,XL |
17588-16020 |
US $6.88 |
||
|
17591A
|
17591A
17591-16020 Stopper, Exhaust Pipe Support[04.1997 -] 5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE ..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE ,7AFE,2C#,2E..AE11#,CE110,EE110..GL,GLI,SEG,STD,XL |
17591-16020 |
from US $0.82 |
||
|
91626B0832
|
91626B0832
91626-B0832
New Genuine Part
|
91626-B0832 |
— | ||
| replacement | |||||
|
91626B0832
|
91626B0832
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.44 |
||
|
9010506081
|
9010506081
90105-06081
BOLT FLANGE
|
90105-06081 |
— | ||
| replacement | |||||
|
9010506081
|
9010506081
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9050135024
|
9050135024
90501-35024 SPRING COMPRESSION |
90501-35024 |
from US $4.45 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9151160830
|
9151160830
91511-60830
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-60830 |
— | ||
| replacement | |||||
|
9151160830
|
9151160830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.98 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
