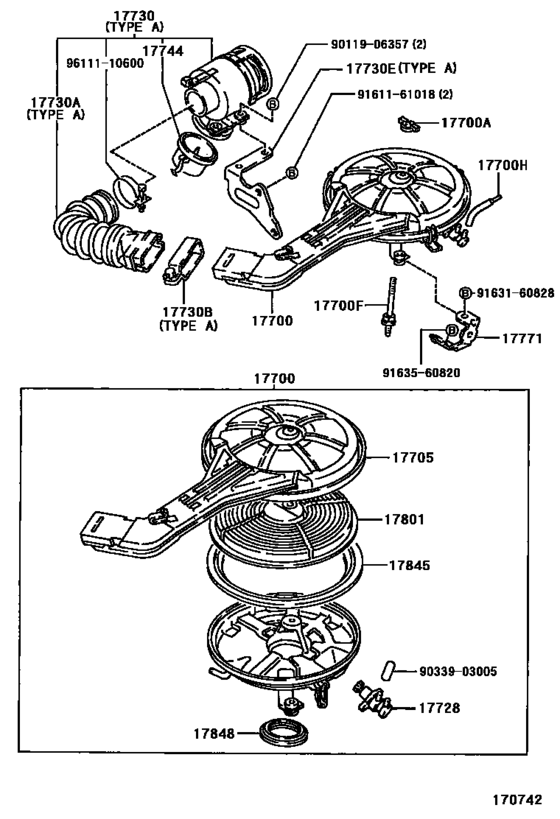

Air Cleaner ([04.1997 - ] W(HOT AIR INTAKE & PRE AIR CLEANER) (9704- )2E) Diagram Toyota COROLLA
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- EE110
- grade
- XL
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1995
- To
- 09.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-11780 Cleaner Assy, AirAIR [05.1995 - 10.1999] 2E..EE110..GCC,GEN MARK 11780 |
17700-11780 |
US $174.72 |
||
|
17700
|
17700
17700-11790 Cleaner Assy, AirAIR [04.1997 - 10.1999] 2E..EE110..MTM..GEN;2E..EE110..LHD..3FC MARK 11790; 2E..EE110..GEN MARK 11790 |
17700-11790 |
US $174.72 |
||
|
17700
|
17700
17700-11800
Cleaner Assy, Air
[04.1997 - 10.1999] 2E..EE110..GCC,GEN MARK 11800 |
17700-11800 |
— | ||
|
17700A
|
17700A
90175-06010
Nut, Wing(For Air Cleaner)
[05.1995 - 09.2001] 2E..EE110..GCC,GEN |
90175-06010 |
— | ||
|
17700F
|
17700F
90116-06142 Bolt, Stud(For Air Cleaner Setting)[05.1995 - 09.2001] 2E..EE110..GCC,GEN |
90116-06142 |
US $2.53 |
||
|
17700H
|
17700H
17341-10010 Hose, No.1(For Air Injection System)[05.1995 - 09.2001] 2E..EE110..GCC,GEN |
17341-10010 |
US $12.06 |
||
|
17705
|
17705
17705-11190 Cap Sub-Assy, Air CleanerAIR CLEANER [05.1995 - 10.1999] 2E..EE110..GCC,GEN MARK 1119 |
17705-11190 |
US $70.18 |
||
|
17705
|
17705
17705-11360
Cap Sub-Assy, Air Cleaner
[04.1997 - 10.1999] 2E..EE110..MTM..GEN;2E..EE110..LHD..3FC MARK 1136; 2E..EE110..GEN MARK 1136 |
17705-11360 |
— | ||
|
17705
|
17705
17705-11370
Cap Sub-Assy, Air Cleaner
[04.1997 - 10.1999] 2E..EE110..GCC,GEN MARK 1137 |
17705-11370 |
— | ||
|
17728
|
17728
17728-11080
Valve, Thermostatic
[05.1995 - 09.2001] 2E..EE110..GCC,GEN |
17728-11080 |
— | ||
|
17730
|
17730
17730-11050 Precleaner Assy, Air W/hose[04.1997 - 10.1999] 2E..EE110..LHD..3FC;2E..EE110..MTM..(STD,XL)..GEN TYPE A:REFER TO ILLUSTRATION; 2E..EE110..(STD,XL)..GEN TYPE A:REFER TO ILLUSTRATION |
17730-11050 |
US $224.22 |
||
|
17730
|
17730
17730-11060 Precleaner Assy, Air W/hoseAIR W/HOSE [04.1997 - 10.1999] 2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION; 2E..EE110..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
17730-11060 |
US $208.21 |
||
|
17730A
|
17730A
17881-11080 Hose, PrecleanerPRECLEANER [04.1997 - 10.1999] 2E..EE110..LHD..3FC;2E..EE110..MTM..(STD,XL)..GEN TYPE A:REFER TO ILLUSTRATION; 2E..EE110..(STD,XL)..GEN TYPE A:REFER TO ILLUSTRATION |
17881-11080 |
US $51.11 |
||
|
17730A
|
17730A
17881-11390
Hose, Precleaner
[04.1997 - 10.1999] 2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION; 2E..EE110..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
17881-11390 |
— | ||
|
17730B
|
17730B
90460-01005 Clamp(For Air Cleaner Hose, No.2)[04.1997 - 10.1999] 2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION; 2E..EE110..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
90460-01005 |
US $4.40 |
||
|
17730B
|
17730B
90460-01058 Clamp, Hose(For Precleaner Hose)[04.1997 - 10.1999] 2E..EE110..LHD..3FC;2E..EE110..MTM..(STD,XL)..GEN TYPE A:REFER TO ILLUSTRATION; 2E..EE110..(STD,XL)..GEN TYPE A:REFER TO ILLUSTRATION |
90460-01058 |
US $3.20 |
||
|
17730E
|
17730E
17741-11010 Bracket, Precleaner, No.1PRECLEANER, NO.1 [04.1997 - 10.1999] 2E..EE110..LHD..3FC;2E..EE110..MTM..(STD,XL)..GEN TYPE A:REFER TO ILLUSTRATION; 2E..EE110..(STD,XL)..GEN TYPE A:REFER TO ILLUSTRATION |
17741-11010 |
US $60.72 |
||
|
17730E
|
17730E
17741-11030 Bracket, Precleaner, No.1PRECLEANER, NO.1 [04.1997 - 10.1999] 2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION; 2E..EE110..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
17741-11030 |
US $23.88 |
||
|
17744
|
17744
17744-16020
Cup, Precleaner
[04.1997 - 10.1999] 2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN); 4AF..AE111; 2E..EE110..GCC,GEN |
17744-16020 |
— | ||
|
17771
|
17771
17771-11020
Bracket, Air Cleaner Inlet Duct
[05.1995 - 09.2001] 2E..EE110..GCC,GEN |
17771-11020 |
— | ||
|
17801
|
17801
17801-11100 Element Sub-Assy, Air Cleaner Filter[05.1995 - 09.2001] 2E..EE110..GCC,GEN |
17801-11100 |
from US $17.30 |
||
|
17845
|
17845
17845-10020
Gasket, Filter Element
[05.1995 - 09.2001] 2E..EE110..GCC,GEN |
17845-10020 |
— | ||
|
17848
|
17848
17848-10021 Gasket, Air Cleaner To Carburetor[05.1995 - 09.2001] 2E..EE110..GCC,GEN |
17848-10021 |
US $5.24 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.76 |
||
|
9161161018
|
9161161018
91611-61018
Bolt (For Transfer Case)Cover No.2
|
91611-61018 |
— | ||
| replacement | |||||
|
9161161018
|
9161161018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.16 |
||
|
9163560820
|
9163560820
91635-60820 BOLTWWASHER |
91635-60820 |
US $1.75 |
||
| replacement | |||||
|
9163560820
|
9163560820
91631-B0818 BOLTWWASHER |
91631-B0818 |
US $2.08 |
||
|
9611110600
|
9611110600
96111-10600 Clamp Or Clip, Hose(For Radiator Outlet No.1) |
96111-10600 |
US $2.08 |
||
