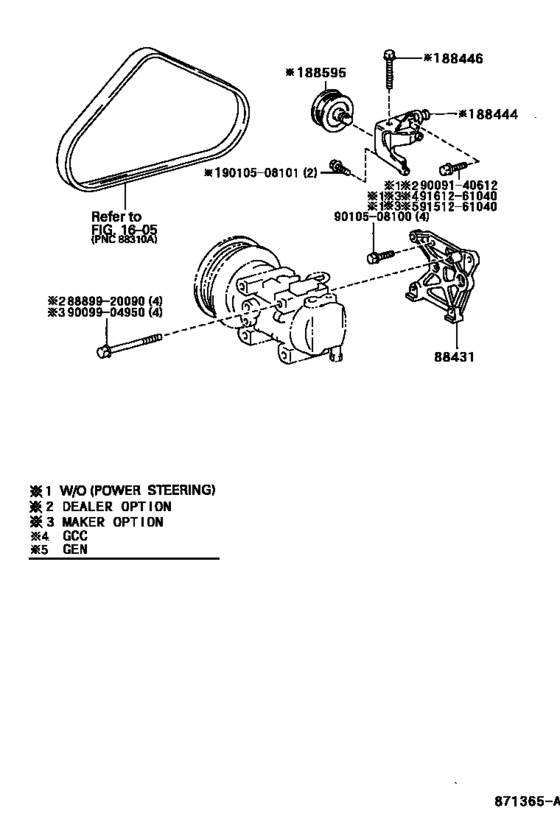

Heating & Air Conditioning - Compressor ([04.1997 - ] (9704- )EE110) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- General
- Frame
- EE110
- grade
- XL
- body
- LB
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA LB
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla LB
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88431
|
88431
88431-12540
Bracket, Compressor Mounting, No.1
[04.1997 - 10.1999] EE110 |
88431-12540 |
— | ||
|
88444
|
88444
88444-10031
Bracket, Idle Pulley
[04.1997 - 10.1999] EE110 |
88444-10031 |
— | ||
|
88446
|
88446
88446-12030
Bolt, Idle Pulley
[04.1997 - 10.1999] AE11#,EE110 |
88446-12030 |
— | ||
|
88595
|
88595
88440-12240 Pulley, Cooler Compressor IdleCOOLER COMPRESSOR IDLE [04.1997 - 10.1999] EE110..GCC; EE110 |
88440-12240 |
US $51.25 |
||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9009140612
|
9009140612
90091-40612
New Genuine Part
|
90091-40612 |
— | ||
|
9009904950
|
9009904950
90099-04950 BOLT |
90099-04950 |
from US $1.89 |
||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.19 |
||
|
9010508101
|
9010508101
90105-08101 New Genuine Part |
90105-08101 |
US $1.22 |
||
|
9151261040
|
9151261040
91512-61040 New Genuine Part |
91512-61040 |
US $2.80 |
||
|
9161261040
|
9161261040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.08 |
