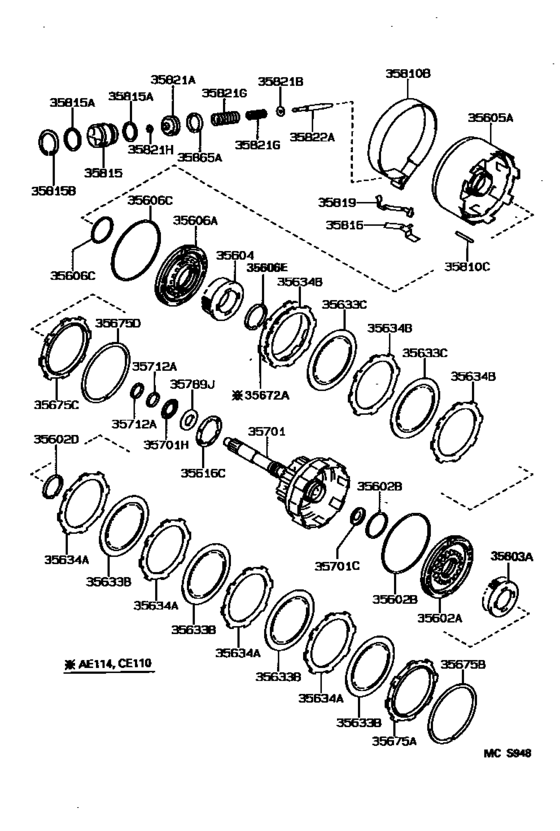

Brake Band & Multiple Disc Clutch (Atm) ([05.1995 - ] A132L,A240L,A241H,A241L (9505- )AE110,114,CE110,113,EE111..ATM) Diagram Toyota COROLLA
- Year
- 1995 - 2000
- Sales region
- Japan
- Frame
- EE111
- grade
- DX
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1995
- To
- 08.2000
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35602A
|
35602A
35602-12070 Piston Sub-Assy, Forward Clutch[06.1997 - 08.2000] AE110,114,CE110,113,EE111..ATM |
35602-12070 |
US $54.60 |
||
|
35602A
|
35602A
35602-32050
Piston Sub-Assy, Forward Clutch
[05.1995 - 04.1997] EE111..3FC |
35602-32050 |
— | ||
|
35602B
|
35602B
90301-46002 Ring, O (For Forward Clutch Piston)[05.1995 - 04.1997] AE110,114,CE110,EE111..ATM 内側 |
90301-46002 |
US $9.60 |
||
|
35602B
|
35602B
90301-99016 Ring, O (For Overdrive Direct Clutch Piston)[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 外側 |
90301-99016 |
US $12.80 |
||
|
35602D
|
35602D
90520-44001
Ring, Shaft Snap(For Forward Clutch Piston Return Spring)
[05.1995 - 04.1997] AE110,114,CE110,EE111..ATM |
90520-44001 |
— | ||
|
35603A
|
35603A
35603-12030 Spring Sub-Assy, Forward Clutch Return[06.1997 - 08.2000] AE110,114,CE110,113,EE111..ATM |
35603-12030 |
US $18.35 |
||
|
35603A
|
35603A
35603-32030
Spring Sub-Assy, Forward Clutch Return
[05.1995 - 04.1997] EE111..3FC |
35603-32030 |
— | ||
|
35604
|
35604
35604-32010 Spring Sub-Assy, Direct Clutch Return[05.1995 - 04.1997] AE110,114,CE110,EE111..ATM |
35604-32010 |
US $12.08 |
||
|
35605A
|
35605A
35605-20020 Drum Sub-Assy, Direct Clutch[05.1995 - 04.1997] AE110,EE111..ATM |
35605-20020 |
US $202.38 |
||
|
35606A
|
35606A
35606-20010 Piston Sub-Assy, Direct Clutch[05.1995 - 04.1997] AE11#,CE110,EE111..ATM |
35606-20010 |
US $42.37 |
||
|
35606C
|
35606C
90301-57188 Ring, O (For Underdrive Clutch Piston)[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 内側 |
90301-57188 |
US $10.08 |
||
| replacement | |||||
|
35606C
|
35606C
90301-56007 Ring, O (For Underdrive Clutch Piston)[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 内側 |
90301-56007 |
US $2.72 |
||
|
35606C
|
35606C
90301-99016 Ring, O (For Overdrive Direct Clutch Piston)[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 外側 |
90301-99016 |
US $12.80 |
||
|
35606E
|
35606E
90520-52002 Ring, Shaft Snap (For Direct Clutch Piston Return Spring)[05.1995 - 04.1997] AE11#,CE110,EE111..ATM |
90520-52002 |
US $2.91 |
||
|
35616C
|
35616C
35616-32021 Washer, Clutch Drum Thrust (For Direct Clutch Drum)[05.1995 - 04.1997] AE110,114,CE110,EE111..ATM |
35616-32021 |
US $28.10 |
||
|
35633B
|
35633B
35633-12040 Disc, Clutch (For Forward Multiple Disc Clutch)[05.1995 - 04.1997] EE111..3FC |
35633-12040 |
US $36.11 |
||
|
35633B
|
35633B
35633-16020 Disc, Clutch (For Forward Multiple Disc Clutch)[06.1997 - 08.2000] AE110,EE111..ATM |
35633-16020 |
US $36.11 |
||
|
35633C
|
35633C
35633-20031 Disc, Clutch (For Direct Multiple Disc Clutch)[05.1995 - 04.1997] AE114,CE110,EE111..ATM |
35633-20031 |
US $36.11 |
||
|
35634A
|
35634A
35634-12040 Plate, Clutch (For Forward Multiple Disc Clutch)[05.1995 - 04.1997] AE110,EE111..ATM 厚さ＝１．８ |
35634-12040 |
US $27.96 |
||
|
35634B
|
35634B
35634-12040 Plate, Clutch (For Forward Multiple Disc Clutch)[05.1995 - 04.1997] AE110,114,CE110,EE111..ATM 厚さ＝１．８ |
35634-12040 |
US $27.96 |
||
|
35675A
|
35675A
35635-50030 Flange, Forward Clutch[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 厚さ＝３．６０，マーク ６２ |
35635-50030 |
US $43.10 |
||
| replacement | |||||
|
35675A
|
35675A
35635-30060 Flange, Forward Clutch[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 厚さ＝３．６０，マーク ６２ |
35635-30060 |
US $31.45 |
||
|
35675A
|
35675A
35635-50040 Flange, Forward Clutch[05.1995 - 12.1995] AE114,CE110,EE111..ATM 厚さ＝３．４０，マーク ４５ |
35635-50040 |
US $43.10 |
||
| replacement | |||||
|
35675A
|
35675A
35635-30070 Flange, Forward Clutch[05.1995 - 12.1995] AE114,CE110,EE111..ATM 厚さ＝３．４０，マーク ４５ |
35635-30070 |
US $27.08 |
||
|
35675A
|
35675A
35675-12010 Flange, Forward Clutch[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 厚さ＝３．２ |
35675-12010 |
US $56.93 |
||
| replacement | |||||
|
35675A
|
35675A
35675-12060 Flange, Forward Clutch[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 厚さ＝３．２ |
35675-12060 |
US $56.20 |
||
|
35675A
|
35675A
35675-17010 Flange, Forward Clutch[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 厚さ＝２．８ |
35675-17010 |
US $56.93 |
||
| replacement | |||||
|
35675A
|
35675A
35675-12040
Flange, Forward Clutch
[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 厚さ＝２．８ |
35675-12040 |
— | ||
|
35675A
|
35675A
35675-32010
Flange, Forward Clutch
[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 厚さ＝３．０ |
35675-32010 |
— | ||
| replacement | |||||
|
35675A
|
35675A
35675-12050 Flange, Forward Clutch[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 厚さ＝３．０ |
35675-12050 |
US $53.87 |
||
|
35675A
|
35675A
35675-32061 Flange, Forward Clutch[12.1995 - 04.1997] AE11#,CE110,EE111..ATM 厚さ＝３．４ |
35675-32061 |
US $15.43 |
||
|
35675B
|
35675B
90521-99001 Ring, Hole Snap, No.2 (For Overdrive)[05.1995 - 04.1997] AE11#,CE110,EE111..ATM |
90521-99001 |
US $4.72 |
||
|
35675C
|
35675C
35675-12010 Flange, Forward Clutch[05.1995 - 04.1997] AE111,EE111..ATM 厚さ＝３．２ |
35675-12010 |
US $56.93 |
||
| replacement | |||||
|
35675C
|
35675C
35675-12060 Flange, Forward Clutch[05.1995 - 04.1997] AE111,EE111..ATM 厚さ＝３．２ |
35675-12060 |
US $56.20 |
||
|
35675C
|
35675C
35675-32010
Flange, Forward Clutch
[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 厚さ＝３．０ |
35675-32010 |
— | ||
| replacement | |||||
|
35675C
|
35675C
35675-12050 Flange, Forward Clutch[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 厚さ＝３．０ |
35675-12050 |
US $53.87 |
||
|
35675C
|
35675C
35675-32020 Flange, Forward Clutch[05.1995 - 12.1995] EE111..3FC 厚さ＝３．３７ |
35675-32020 |
US $56.64 |
||
| replacement | |||||
|
35675C
|
35675C
35675-32061 Flange, Forward Clutch[05.1995 - 12.1995] EE111..3FC 厚さ＝３．３７ |
35675-32061 |
US $15.43 |
||
|
35675C
|
35675C
35675-32061 Flange, Forward Clutch[05.1995 - 12.1995] EE111..3FC 厚さ＝３．４ |
35675-32061 |
US $15.43 |
||
|
35675D
|
35675D
90520-99037 Ring, Hole Snap (For Overdrive Clutch Flange)[04.1997 - 08.2000] EE111..3FC |
90520-99037 |
US $4.95 |
||
|
35675D
|
35675D
90521-99001 Ring, Hole Snap, No.2 (For Overdrive)[05.1995 - 04.1997] AE11#,CE110,EE111..ATM |
90521-99001 |
US $4.72 |
||
|
35701
|
35701
35701-12070 Shaft Sub-Assy, Input[12.1998 - 02.2000] EE111..3FC |
35701-12070 |
US $361.09 |
||
|
35701
|
35701
35701-32021 Shaft Sub-Assy, Input[05.1995 - 04.1997] EE111..3FC |
35701-32021 |
US $343.62 |
||
| replacement | |||||
|
35701
|
35701
35701-12070 Shaft Sub-Assy, Input[05.1995 - 04.1997] EE111..3FC |
35701-12070 |
US $361.09 |
||
|
35701C
|
35701C
35789-32040 Race, Thrust Bearing (For Input Shaft Rear)[05.1995 - 04.1997] AE110,114,CE110,EE111..ATM |
35789-32040 |
US $9.32 |
||
|
35701H
|
35701H
90374-28005
Bearing, Thrust Needle Roller (For Input Shaft)
[05.1995 - 04.1997] AE110,114,CE110,EE111..ATM 外径＝４２．０ |
90374-28005 |
— | ||
|
35712A
|
35712A
35712-32010 Ring, Input Shaft Oil Seal[05.1995 - 04.1997] AE110,114,CE110,EE111..ATM |
35712-32010 |
US $5.68 |
||
|
35789J
|
35789J
35789-32010
Race, Thrust Bearing (For Input Shaft Front)
[05.1995 - 04.1997] AE110,114,CE110,EE111..ATM |
35789-32010 |
— | ||
|
35810B
|
35810B
35810-32020 Band Assy, 2Nd Coast Brake[05.1995 - 04.1997] AE11#,CE110,EE111..ATM |
35810-32020 |
US $101.92 |
||
|
35810C
|
35810C
90250-07001 Pin (For 2Nd Coast Brake Band)[05.1995 - 04.1997] AE110,114,CE110,EE111..ATM |
90250-07001 |
US $3.06 |
||
|
35815
|
35815
35815-32010 Cover, 2Nd Coast Brake[05.1995 - 04.1997] AE110,114,CE110,EE111..ATM |
35815-32010 |
US $15.72 |
||
|
35815A
|
35815A
90301-41002 Ring, O (For 2Nd Coast Brake Cover)[05.1995 - 04.1997] AE11#,CE110,EE111..ATM |
90301-41002 |
US $7.86 |
||
|
35815B
|
35815B
90521-53001 Ring, Hole Snap (For 2Nd Coast Brake Cover)[05.1995 - 04.1997] AE110,114,CE110,EE111..ATM |
90521-53001 |
US $4.80 |
||
|
35816
|
35816
35816-12010 Retainer, Brake Band Guide Plate[05.1995 - 04.1997] AE11#,CE110,EE111..ATM |
35816-12010 |
US $2.91 |
||
|
35819
|
35819
35819-12010 Plate, 2Nd Coast Brake Band Guide[05.1995 - 04.1997] EE111..3FC |
35819-12010 |
US $4.95 |
||
|
35821A
|
35821A
35821-32010 Piston, 2Nd Coast Brake[05.1995 - 04.1997] AE11#,CE110,EE111..ATM |
35821-32010 |
US $19.66 |
||
|
35821B
|
35821B
90201-06557 Washer, Plate (For 2Nd Coast Brake Piston)[05.1995 - 04.1997] AE11#,CE110,EE111..ATM |
90201-06557 |
US $0.96 |
||
|
35821G
|
35821G
90501-20051 Spring, Compression (For 2Nd Coast Brake Piston)[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 内側 |
90501-20051 |
US $1.75 |
||
|
35821G
|
35821G
90501-26024 Spring, Compression (For 2Nd Coast Brake Piston)[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 外側 |
90501-26024 |
US $6.29 |
||
|
35821H
|
35821H
96160-00500 Ring, E(For Over Center Lever)[05.1995 - 04.1997] AE11#,CE110,EE111..ATM |
96160-00500 |
from US $0.86 |
||
|
35822A
|
35822A
35822-32010 Rod, 2Nd Coast Brake Piston[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 長さ＝７０．９ |
35822-32010 |
US $8.44 |
||
|
35822A
|
35822A
35822-32020 Rod, 2Nd Coast Brake Piston[05.1995 - 04.1997] AE11#,CE110,EE111..ATM 長さ＝７２．４ |
35822-32020 |
US $8.44 |
||
|
35865A
|
35865A
35865-32010 Ring, 2Nd Coast Brake Piston Oil Seal[05.1995 - 04.1997] AE11#,CE110,EE111..ATM |
35865-32010 |
US $11.07 |
||
