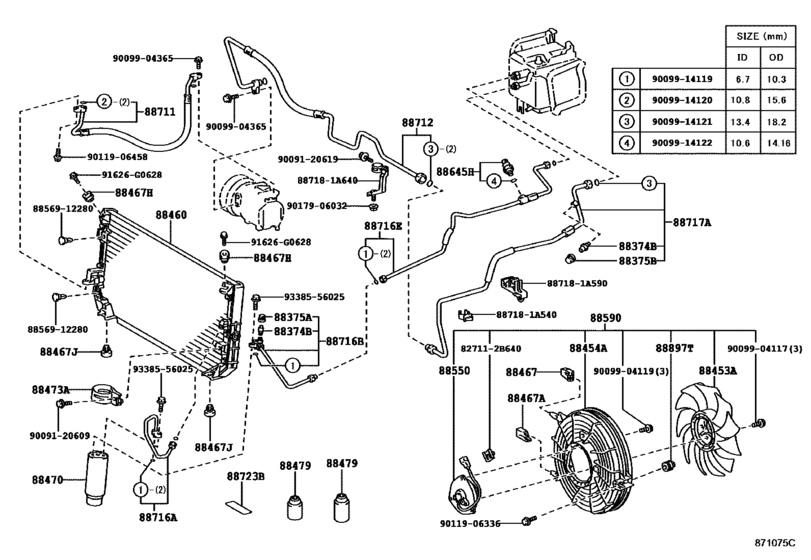

Heating & Air Conditioning - Cooler Piping ([05.1995 - ] ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ (9505- )AE110,114,EE111..DX,LX,XESAL) Diagram Toyota COROLLA
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- EE111
- grade
- DX
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[04.1997 - 08.2000] CE11#;AE110,114,EE111..DX,LX,XESAL |
88374-30010 |
from US $3.28 |
||
|
88375A
|
88375A
88375-30280 Cap, Service Valve (For Cooler Pipe)[04.1997 - 08.2000] AE11#,CE11#,EE111 |
88375-30280 |
from US $0.98 |
||
|
88375B
|
88375B
88375-30290 Cap, Service Valve (For Cooler Pipe)[04.1997 - 08.2000] AE11#,CE11#,EE111 |
88375-30290 |
from US $0.94 |
||
|
88453A
|
88453A
88453-10022
Fan, Cooling (For Condenser)
[04.1997 - 08.2000] AE11#,EE111..GT,SESAL,XESAL ＤＥＮＳＯ; AE110,114,EE111..DX,LX |
88453-10022 |
— | ||
|
88454A
|
88454A
88454-12160
Shroud, Fan
[04.1997 - 08.2000] AE11#,EE111..GT,SESAL,XESAL ＤＥＮＳＯ; EE111..5F;AE110,114..DX,LX;EE111..(3FC,4F)..(DX,LX) |
88454-12160 |
— | ||
|
88460
|
88460
88460-12480
Condenser Assy, Cooler
[04.1997 - 08.2000] AE11#,CE11#,EE111 |
88460-12480 |
— | ||
|
88467
|
88467
88467-12130
Cushion, Cooler Condenser, No.1
[04.1997 - 08.2000] AE11#,EE111 |
88467-12130 |
— | ||
|
88467A
|
88467A
88467-12140
Cushion, Cooler Condenser, No.2
[04.1997 - 08.2000] AE11#,EE111 |
88467-12140 |
— | ||
|
88467H
|
88467H
88897-12250
Cushion, Condenser Bracket, No.1
[04.1997 - 08.2000] AE11#,CE11#,EE111 |
88897-12250 |
— | ||
|
88467J
|
88467J
88467-12100 Cushion, Cooler Condenser, No.1[04.1997 - 08.2000] AE11#,CE11#,EE111 |
88467-12100 |
US $4.54 |
||
|
88470
|
88470
88471-60010 Receiver & Dryer Assy, Cooler[04.1997 - 08.2000] AE11#,CE11#,EE111 |
88471-60010 |
from US $87.54 |
||
|
88473A
|
88473A
88473-20070
Holder, Receiver
[04.1997 - 08.2000] AE11#,CE11#,EE111 |
88473-20070 |
— | ||
|
88479
|
88479
90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)[04.1997 - 08.2000] AE110,114,CE110,114,EE111..DX,LX,XESAL ２００Ｇ |
90986-02008 |
US $22.80 |
||
|
88550
|
88550
88550-12160 Motor, Cooling Fan[04.1997 - 08.2000] AE11#,EE111..GT,SESAL,XESAL ＤＥＮＳＯ; EE111..5F;AE110,114..DX,LX;EE111..(3FC,4F)..(DX,LX) |
88550-12160 |
from US $171.36 |
||
|
88590
|
88590
88590-12250
Blower Assy, W/shroud
[04.1997 - 08.2000] AE11#,EE111..GT,SESAL,XESAL ＤＥＮＳＯ; EE111..5F;AE110,114..DX,LX;EE111..(3FC,4F)..(DX,LX) |
88590-12250 |
— | ||
|
88645H
|
88645H
88645-20050 Switch, Pressure[04.1997 - 08.2000] AE11#,CE11#,EE111 |
88645-20050 |
US $159.08 |
||
|
88711
|
88711
88711-1A431 Hose, Cooler Refrigerant Discharge, No.1[04.1997 - 08.2000] EE111 |
88711-1A431 |
US $173.26 |
||
|
88712
|
88712
88712-1A440 Hose, Cooler Refrigerant Suction, No.1[04.1997 - 08.2000] EE111 |
88712-1A440 |
US $132.50 |
||
|
88716A
|
88716A
88726-12470
Pipe, Cooler Refrigerant Liquid, A
[04.1997 - 08.2000] AE11#,CE11#,EE111 |
88726-12470 |
— | ||
|
88716B
|
88716B
88716-1A470 Pipe, Cooler Refrigerant Liquid, B[04.1997 - 08.2000] AE110,114,EE111..DX,LX,XESAL |
88716-1A470 |
US $44.55 |
||
|
88716E
|
88716E
88716-1A480 Pipe, Cooler Refrigerant Liquid, E[04.1997 - 08.2000] AE110,114,EE111..DX,LX,XESAL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
88716-1A480 |
US $53.87 |
||
|
88717A
|
88717A
88717-13020 Pipe, Cooler Refrigerant Suction, No.1[04.1997 - 08.2000] AE11#,EE111 |
88717-13020 |
US $193.65 |
||
|
88723B
|
88723B
88723-12110
Label, Cooler Service Caution
[04.1997 - 08.2000] AE11#,CE11#,EE111 |
88723-12110 |
— | ||
|
88897T
|
88897T
88897-12250
Cushion, Condenser Bracket, No.1
[04.1997 - 08.2000] AE110,114,EE111..DX,LX,XESAL |
88897-12250 |
— | ||
|
91626G0628
|
91626G0628
91626-G0628 New Genuine Part |
91626-G0628 |
US $1.46 |
||
|
827112B640
|
827112B640
82711-2B640 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B640 |
US $1.76 |
||
|
887181A540
|
887181A540
88718-1A540
Clamp(For Cooler Refrigerant Hose), No.1
|
88718-1A540 |
— | ||
|
887181A590
|
887181A590
88718-1A590
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A590 |
— | ||
|
887181A640
|
887181A640
88718-1A640
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A640 |
— | ||
|
8856912280
|
8856912280
88569-12280
Clamp (for Cooler Relay)
|
88569-12280 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.44 |
||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
US $0.70 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.68 |
||
|
9009904365
|
9009904365
90099-04365
New Genuine Part
|
90099-04365 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.83 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.74 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.13 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.77 |
||
|
9009914122
|
9009914122
90099-14122 O-RING |
90099-14122 |
from US $1.27 |
||
|
9011906336
|
9011906336
90119-06336 SCREW |
90119-06336 |
US $1.28 |
||
|
9011906458
|
9011906458
90119-06458 New Genuine Part |
90119-06458 |
US $1.89 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9338556025
|
9338556025
93385-56025 New Genuine Part |
93385-56025 |
US $0.44 |
||
