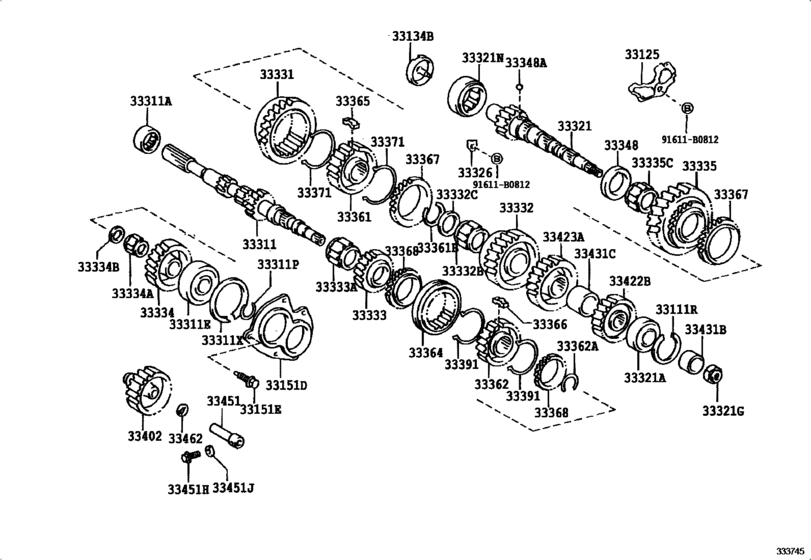

Transmission Gear (Mtm) ([05.1995 - ] C40 (9505- )EE111..MTM) Diagram Toyota COROLLA
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- EE111
- grade
- DX
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33111R
|
33111R
90520-57002 Ring, Hole Snap(For Output Shaft Rear Bearing)[04.1997 - 08.2000] AE110,111,EE111..MTM |
90520-57002 |
US $3.04 |
||
|
33125
|
33125
33125-12011 Receiver, Manual Transaxle Case[04.1997 - 08.2000] AE110,111,EE111..MTM |
33125-12011 |
US $2.18 |
||
|
33134B
|
33134B
33134-12022 Cover, Output Shaft(Mtm)[04.1997 - 08.2000] AE110,111,EE111..MTM |
33134-12022 |
US $3.68 |
||
|
33151D
|
33151D
33151-12021
Retainer, Bearing, Rear(Mtm)
[04.1997 - 08.2000] AE110,111,EE111..MTM |
33151-12021 |
— | ||
| replacement | |||||
|
33151D
|
33151D
33151-52010 Retainer, Bearing, Rear(Mtm)[04.1997 - 08.2000] AE110,111,EE111..MTM |
33151-52010 |
from US $34.25 |
||
|
33151E
|
33151E
90119-08944 Bolt(For Rear Bearing Retainer)[04.1997 - 08.2000] AE110,111,EE111..MTM |
90119-08944 |
US $1.44 |
||
|
33311
|
33311
33311-12170 Shaft, Input[04.1997 - 08.2000] AE110,EE111..5F |
33311-12170 |
US $429.52 |
||
| replacement | |||||
|
33311
|
33311
33311-12231 Shaft, InputINPUT [04.1997 - 08.2000] AE110,EE111..5F |
33311-12231 |
US $270.82 |
||
|
33311A
|
33311A
90365-25021 Bearing (For Input Shaft Front)[04.1997 - 08.2000] AE110,111,EE111..MTM |
90365-25021 |
from US $22.19 |
||
|
33311E
|
33311E
90363-25048
Bearing, Radial Ball (For Input Shaft Rear)
[04.1997 - 08.2000] EE111..MTM; AE110..5F TYPE 2(*94) |
90363-25048 |
— | ||
| replacement | |||||
|
33311E
|
33311E
90363-25091 Bearing, Radial Ball (For Input Shaft Rear)[04.1997 - 08.2000] EE111..MTM; AE110..5F TYPE 2(*94) |
90363-25091 |
from US $24.06 |
||
|
33311P
|
33311P
90520-22006 Ring, Shaft Snap (For Input Shaft Rear Bearing)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．２９−２．３４，マーク Ａ |
90520-22006 |
US $1.76 |
||
|
33311P
|
33311P
90520-22007 Ring, Shaft Snap (For Input Shaft Rear Bearing)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．３５−２．４０，マーク Ｂ |
90520-22007 |
US $1.76 |
||
|
33311P
|
33311P
90520-22008 Ring, Shaft Snap (For Input Shaft Rear Bearing)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．４１−２．４６，マーク Ｃ |
90520-22008 |
US $1.76 |
||
|
33311P
|
33311P
90520-22009 Ring, Shaft Snap (For Input Shaft Rear Bearing)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．４７−２．５２，マーク Ｄ |
90520-22009 |
US $1.76 |
||
|
33311P
|
33311P
90520-22010 Ring, Shaft Snap (For Input Shaft Rear Bearing)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．５３−２．５８，マーク Ｅ |
90520-22010 |
US $1.76 |
||
|
33311P
|
33311P
90520-22011 Ring, Shaft Snap (For Input Shaft Rear Bearing)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．５９−２．６４，マーク Ｆ |
90520-22011 |
US $1.76 |
||
|
33311X
|
33311X
90520-64002 Ring, Hole Snap (For Input Shaft Rear Bearing)[04.1997 - 08.2000] AE110,111,EE111..MTM |
90520-64002 |
US $3.04 |
||
|
33321
|
33321
33321-12051 Shaft, Output[04.1997 - 08.2000] AE110,EE111..MTM |
33321-12051 |
US $196.56 |
||
| replacement | |||||
|
33321
|
33321
33321-52081 Shaft, OutputOUTPUT [04.1997 - 08.2000] AE110,EE111..MTM |
33321-52081 |
US $122.30 |
||
|
33321A
|
33321A
90363-25066
Bearing (For Output Shaft Rear)
[04.1997 - 08.2000] EE111..MTM |
90363-25066 |
— | ||
|
33321G
|
33321G
90179-18005 Nut (For Manual Transmission Output Shaft Rear Set)[04.1997 - 08.2000] AE110,EE111..MTM |
90179-18005 |
from US $3.04 |
||
|
33321N
|
33321N
90365-33005 Bearing (For Output Shaft Front)[04.1997 - 08.2000] AE110,111,EE111..MTM |
90365-33005 |
from US $46.06 |
||
|
33326
|
33326
33326-12010 Plate, Bearing Lock[04.1997 - 08.2000] AE110,111,EE111..MTM |
33326-12010 |
US $3.32 |
||
|
33331
|
33331
33331-12022
Gear, Reverse
[04.1997 - 07.1999] AE110..5F TYPE 2(*94); AE111,EE111..MTM |
33331-12022 |
— | ||
|
33331
|
33331
33331-12060 Gear, Reverse[07.1999 - 08.2000] AE110..5F TYPE 2(*94); AE111,EE111..MTM |
33331-12060 |
from US $185 |
||
|
33332
|
33332
33033-12060 Gear, 2Nd[04.1997 - 08.2000] AE110,EE111..MTM |
33033-12060 |
US $260.62 |
||
| replacement | |||||
|
33332
|
33332
33033-12090 Gear, 2Nd[04.1997 - 08.2000] AE110,EE111..MTM |
33033-12090 |
US $272.56 |
||
|
33332B
|
33332B
90364-32014 Ring, Hole Snap(For Output Shaft Rear Bearing)[04.1997 - 08.2000] AE110,EE111..MTM |
90364-32014 |
from US $25.38 |
||
| replacement | |||||
|
33332B
|
33332B
90364-T0046
Bearing, Needle Roller (For 2Nd Gear)
[04.1997 - 08.2000] AE110,EE111..MTM |
90364-T0046 |
— | ||
|
33332C
|
33332C
90560-32008 Spacer (For 2Nd Gear Bearing)[04.1997 - 08.2000] AE110,EE111..MTM |
90560-32008 |
US $0.79 |
||
|
33333
|
33333
33034-12110
Gear, 3Rd
[04.1997 - 08.2000] EE111..MTM |
33034-12110 |
— | ||
| replacements | |||||
|
33333
|
33333
33034-12150 Gear, 3Rd[04.1997 - 08.2000] EE111..MTM |
33034-12150 |
US $138.03 |
||
|
33333
|
33333
33368-12150 Ring, Synchronizer, No.2[04.1997 - 08.2000] EE111..MTM |
33368-12150 |
US $47.17 |
||
|
33333
|
33333
33368-12160 Ring, Synchronizer, No.2[04.1997 - 08.2000] EE111..MTM |
33368-12160 |
US $47.17 |
||
|
33333
|
33333
33368-12170 Ring, Synchronizer, No.2[04.1997 - 08.2000] EE111..MTM |
33368-12170 |
US $47.17 |
||
|
33333
|
33333
33368-12220 Ring, Synchronizer, No.2[04.1997 - 08.2000] EE111..MTM |
33368-12220 |
US $46.88 |
||
|
33333
|
33333
33368-12230 Ring, Synchronizer, No.2[04.1997 - 08.2000] EE111..MTM |
33368-12230 |
US $46.88 |
||
|
33333
|
33333
33368-12240 Ring, Synchronizer, No.2[04.1997 - 08.2000] EE111..MTM |
33368-12240 |
US $47.17 |
||
|
33333
|
33333
33368-12250 Ring, Synchronizer, No.2[04.1997 - 08.2000] EE111..MTM |
33368-12250 |
US $47.17 |
||
|
33333
|
33333
33368-12260 Ring, Synchronizer, No.2[04.1997 - 08.2000] EE111..MTM |
33368-12260 |
US $47.17 |
||
|
33333
|
33333
33368-12270
Ring, Synchronizer, No.2
[04.1997 - 08.2000] EE111..MTM |
33368-12270 |
— | ||
|
33333
|
33333
33368-12280
Ring, Synchronizer, No.2
[04.1997 - 08.2000] EE111..MTM |
33368-12280 |
— | ||
|
33333
|
33333
33368-12290
Ring, Synchronizer, No.2
[04.1997 - 08.2000] EE111..MTM |
33368-12290 |
— | ||
|
33333A
|
33333A
90364-31002 Bearing, Needle Roller (For 3Rd Gear)[04.1997 - 08.2000] AE110,EE111..MTM |
90364-31002 |
from US $23.26 |
||
|
33334
|
33334
33035-12090
Gear, 4Th
[04.1997 - 07.1999] EE111..MTM |
33035-12090 |
— | ||
| replacements | |||||
|
33334
|
33334
33035-12093 GEAR SUB-ASSY, 4TH[04.1997 - 07.1999] EE111..MTM |
33035-12093 |
US $158.70 |
||
|
33334
|
33334
33368-12280
Ring, Synchronizer, No.2
[04.1997 - 07.1999] EE111..MTM |
33368-12280 |
— | ||
|
33334
|
33334
33368-12290
Ring, Synchronizer, No.2
[04.1997 - 07.1999] EE111..MTM |
33368-12290 |
— | ||
|
33334
|
33334
33035-20080 Gear, 4Th[07.1999 - 05.2000] EE111..5F |
33035-20080 |
US $158.70 |
||
| replacements | |||||
|
33334
|
33334
33035-12180 Gear, 4Th[07.1999 - 05.2000] EE111..5F |
33035-12180 |
US $121.61 |
||
|
33334
|
33334
33368-12180 Ring, Synchronizer, No.2[07.1999 - 05.2000] EE111..5F |
33368-12180 |
US $47.17 |
||
|
33334
|
33334
33368-12190 Ring, Synchronizer, No.2[07.1999 - 05.2000] EE111..5F |
33368-12190 |
US $47.17 |
||
|
33334
|
33334
33035-20160 Gear, 4Th[05.2000 - 08.2000] EE111..5F |
33035-20160 |
US $158.70 |
||
| replacements | |||||
|
33334
|
33334
33035-12180 Gear, 4Th[05.2000 - 08.2000] EE111..5F |
33035-12180 |
US $121.61 |
||
|
33334
|
33334
33368-12180 Ring, Synchronizer, No.2[05.2000 - 08.2000] EE111..5F |
33368-12180 |
US $47.17 |
||
|
33334
|
33334
33368-12190 Ring, Synchronizer, No.2[05.2000 - 08.2000] EE111..5F |
33368-12190 |
US $47.17 |
||
|
33334A
|
33334A
90364-29002 Bearing, Needle Roller (For 4Th Gear)[04.1997 - 08.2000] AE110,111,EE111..MTM |
90364-29002 |
from US $10.04 |
||
|
33334B
|
33334B
90560-29001 Spacer (For 4Th Gear Bearing)[04.1997 - 08.2000] AE110,111,EE111..MTM |
90560-29001 |
US $1.44 |
||
|
33335
|
33335
33032-12060 Gear, 1St[04.1997 - 08.2000] AE110,EE111..MTM |
33032-12060 |
US $206.75 |
||
| replacement | |||||
|
33335
|
33335
33032-12130 Gear, 1St[04.1997 - 08.2000] AE110,EE111..MTM |
33032-12130 |
US $171.81 |
||
|
33335C
|
33335C
90364-38007 Bearing, Needle Roller(For 1St Gear)[04.1997 - 08.2000] AE110,EE111..MTM |
90364-38007 |
from US $21.39 |
||
|
33348
|
33348
33348-12010 Washer, 1St Gear Thrust[04.1997 - 08.2000] AE110,111,EE111..MTM |
33348-12010 |
US $4.95 |
||
|
33348A
|
33348A
90360-05012 Ball, Reverse Shift Restrict[04.1997 - 08.2000] AE110,111,EE111..MTM |
90360-05012 |
from US $0.92 |
||
|
33361
|
33361
33361-12030 Hub, Transmission Clutch, No.1[04.1997 - 08.2000] EE111..MTM; AE110..5F TYPE 2(*94) |
33361-12030 |
US $45.14 |
||
|
33361B
|
33361B
90520-29018 Ring, Shaft Snap (For Clutch Hub No.1)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．５０−２．５５，マーク Ａ |
90520-29018 |
US $0.84 |
||
|
33361B
|
33361B
90520-29019 Ring, Shaft Snap (For Clutch Hub No.1)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．５６−２．６１，マーク Ｂ |
90520-29019 |
US $1.76 |
||
|
33361B
|
33361B
90520-29020 Ring, Shaft Snap (For Clutch Hub No.1)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．６２−２．６７，マーク Ｃ |
90520-29020 |
US $0.96 |
||
|
33361B
|
33361B
90520-29021 Ring, Shaft Snap (For Clutch Hub No.1)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．６８−２．７３，マーク Ｄ |
90520-29021 |
US $1.76 |
||
|
33361B
|
33361B
90520-29022 Ring, Shaft Snap (For Clutch Hub No.1)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．７４−２．７９，マーク Ｅ |
90520-29022 |
US $1.38 |
||
|
33361B
|
33361B
90520-29023 Ring, Shaft Snap (For Clutch Hub No.1)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．８０−２．８５，マーク Ｆ |
90520-29023 |
US $1.38 |
||
|
33362
|
33362
33362-12020 Hub, Transmission Clutch, No.2[04.1997 - 08.2000] EE111..MTM; AE110..5F TYPE 2(*94) |
33362-12020 |
US $62.72 |
||
|
33362A
|
33362A
90520-27046 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．３０−２．３５，マーク ０ |
90520-27046 |
US $1.60 |
||
|
33362A
|
33362A
90520-27047 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．３６−２．４１，マーク １ |
90520-27047 |
US $0.79 |
||
|
33362A
|
33362A
90520-27048 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．４２−２．４７，マーク ２ |
90520-27048 |
US $1.60 |
||
|
33362A
|
33362A
90520-27049 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．４８−２．５３，マーク ３ |
90520-27049 |
US $1.60 |
||
|
33362A
|
33362A
90520-27050 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．５４−２．５９，マーク ４ |
90520-27050 |
US $1.60 |
||
|
33362A
|
33362A
90520-27051 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[04.1997 - 08.2000] AE110,111,EE111..MTM 厚さ＝２．６０−２．６５，マーク ５ |
90520-27051 |
US $1.60 |
||
|
33364
|
33364
33364-12012
Sleeve, Transmission Hub, No.2
[04.1997 - 07.1999] AE110,111,EE111..MTM |
33364-12012 |
— | ||
|
33364
|
33364
33364-20030
Sleeve, Transmission Hub, No.2
[07.1999 - 08.2000] EE111..5F |
33364-20030 |
— | ||
|
33365
|
33365
33365-12021 Key, Synchromesh Shifting, No.1[04.1997 - 08.2000] EE111..MTM; AE110..5F TYPE 2(*94) |
33365-12021 |
US $4.80 |
||
|
33366
|
33366
33366-12020 Key, Synchromesh Shifting, No.2[04.1997 - 08.2000] EE111..MTM; AE110..5F TYPE 2(*94) |
33366-12020 |
US $3.68 |
||
|
33367
|
33367
33367-12070 Ring, Synchronizer, No.1[04.1997 - 07.1999] EE111..MTM １ＳＴギヤ側; AE110..5F １ＳＴ ギヤ，ＴＹＰＥ １（＊９４） |
33367-12070 |
US $45.95 |
||
|
33367
|
33367
33367-12081
Ring, Synchronizer, No.1
[04.1997 - 07.1999] EE111..MTM ２ＮＤギヤ側; AE110..5F ２ＮＤ ギヤ，ＴＹＰＥ ２（＊９４） |
33367-12081 |
— | ||
|
33367
|
33367
33367-12140 Ring, Synchronizer, No.1[07.1999 - 08.2000] AE110..5F １ＳＴ ギヤ，ＴＹＰＥ ２（＊９４）; EE111..5F １ＳＴギヤ側 |
33367-12140 |
US $45.78 |
||
|
33367
|
33367
33367-12150 Ring, Synchronizer, No.1[07.1999 - 08.2000] AE110..5F ２ＮＤ ギヤ，ＴＹＰＥ ２（＊９４）; EE111..5F ２ＮＤギヤ側 |
33367-12150 |
US $53.05 |
||
|
33368
|
33368
33368-12060 Ring, Synchronizer, No.2[04.1997 - 07.1999] EE111..MTM ４ＴＨギヤ側; AE110..5F ４ＴＨ ギヤ ＴＹＰＥ ２（＊９４） |
33368-12060 |
US $43.68 |
||
|
33368
|
33368
33368-12100 Ring, Synchronizer, No.2[04.1997 - 07.1999] EE111..MTM ３ＲＤギヤ側; AE110..5F 3RD GEAR TYPE 2(*94) |
33368-12100 |
US $47.17 |
||
|
33368
|
33368
33368-12130 Ring, Synchronizer, No.2[07.1999 - 08.2000] AE110..5F ３ＲＤ ギヤ ＴＹＰＥ ２（＊９４）; EE111..5F ３ＲＤギヤ側 |
33368-12130 |
US $38.51 |
||
|
33368
|
33368
33368-12140 Ring, Synchronizer, No.2[07.1999 - 08.2000] AE110,EE111..5F ４ＴＨ ギヤ ＴＹＰＥ ２（＊９４） |
33368-12140 |
US $41.35 |
||
|
33371
|
33371
33371-12020 Spring, Synchromesh Shifting Key, No.1[04.1997 - 08.2000] EE111..MTM; AE110..5F TYPE 2(*94) |
33371-12020 |
US $3.52 |
||
|
33391
|
33391
33391-12020 Spring, Synchromesh Shifting Key, No.2[04.1997 - 08.2000] EE111..MTM; AE110..5F TYPE 2(*94) |
33391-12020 |
US $3.68 |
||
|
33402
|
33402
33402-12041 Gear Sub-Assy, Reverse Idler[04.1997 - 08.2000] AE110,EE111..MTM |
33402-12041 |
US $154.34 |
||
| replacement | |||||
|
33402
|
33402
33402-12042 Gear Sub-Assy, Reverse Idler[04.1997 - 08.2000] AE110,EE111..MTM |
33402-12042 |
US $94.64 |
||
|
33422B
|
33422B
33422-12050 Gear, 4Th Driven[04.1997 - 08.2000] EE111..MTM |
33422-12050 |
US $133.95 |
||
| replacement | |||||
|
33422B
|
33422B
33422-12090 Gear, 4Th Driven[04.1997 - 08.2000] EE111..MTM |
33422-12090 |
US $78.03 |
||
|
33423A
|
33423A
33423-12010 Gear, 3Rd Driven[04.1997 - 08.2000] EE111..MTM |
33423-12010 |
US $69.01 |
||
|
33431C
|
33431C
33431-12010 Spacer, Output Gear[04.1997 - 08.2000] AE110,111,EE111..MTM |
33431-12010 |
US $10.83 |
||
|
33451
|
33451
33451-12021 Shaft, Reverse Idler Gear[04.1997 - 08.2000] AE110,EE111..MTM |
33451-12021 |
US $14.41 |
||
|
33451H
|
33451H
90109-08097 Bolt (For Reverse Idler Gear Shaft)[04.1997 - 08.2000] AE110,111,EE111..MTM |
90109-08097 |
US $1.89 |
||
|
33451J
|
33451J
90430-08010 Gasket (For Reverse Idler Gear Shaft)[04.1997 - 08.2000] AE11#,CE11#,EE111..MTM |
90430-08010 |
from US $1.12 |
||
|
33462
|
33462
33462-12010 Washer, Reverse Idler Thrust[04.1997 - 08.2000] AE110,111,CE110,113,EE111..MTM |
33462-12010 |
US $2.77 |
||
|
91611B0812
|
91611B0812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
