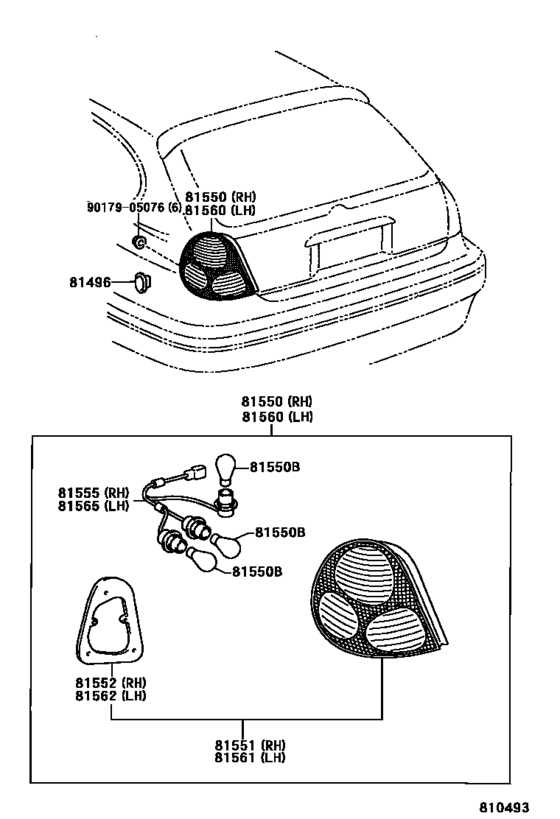

Rear Combination Lamp ([04.1997 - ] (9704- )JPP..LB) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-12010 Guide, Rear Combination Lamp[04.1997 - 10.1999] AE111,CE110,EE111..JPP |
81496-12010 |
US $4.80 |
||
|
81550
|
81550
81550-1E070
Lamp Assy, Rear Combination, Rh
[04.1997 - 10.1999] AE111,CE110,EE111..JPP..LHD..LB |
81550-1E070 |
— | ||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[04.1997 - 10.1999] AE111,CE110,EE111..JPP..LB 12V 21W |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[04.1997 - 10.1999] AE111,CE110,EE111..JPP 12V 21/5W |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-1E070 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [04.1997 - 10.1999] AE111,CE110,EE111..JPP..LHD..LB |
81551-1E070 |
US $260.62 |
||
|
81552
|
81552
81552-1E060
Gasket, Rear Combination Lamp Lens, Rh
[04.1997 - 10.1999] AE111,CE110,EE111..JPP..LB |
81552-1E060 |
— | ||
|
81555
|
81555
81555-1E070
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[04.1997 - 10.1999] AE111,CE110,EE111..JPP..LHD..LB |
81555-1E070 |
— | ||
|
81560
|
81560
81560-1E020
Lamp Assy, Rear Combination, Lh
[04.1997 - 10.1999] AE111,CE110,EE111..JPP..LHD..LB |
81560-1E020 |
— | ||
|
81561
|
81561
81561-1E020 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [04.1997 - 10.1999] AE111,CE110,EE111..JPP..LHD..LB |
81561-1E020 |
US $260.62 |
||
|
81562
|
81562
81562-1E020
Gasket, Rear Combination Lamp Lens, Lh
[04.1997 - 10.1999] AE111,CE110,EE111..JPP..LB |
81562-1E020 |
— | ||
|
81565
|
81565
81555-1E060 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [04.1997 - 10.1999] AE111,CE110,EE111..JPP..LHD..LB |
81555-1E060 |
US $33.20 |
||
|
9017905076
|
9017905076
90179-05076
NUT
|
90179-05076 |
— | ||
| replacement | |||||
|
9017905076
|
9017905076
90179-05030 NUT |
90179-05030 |
US $1.92 |
||
