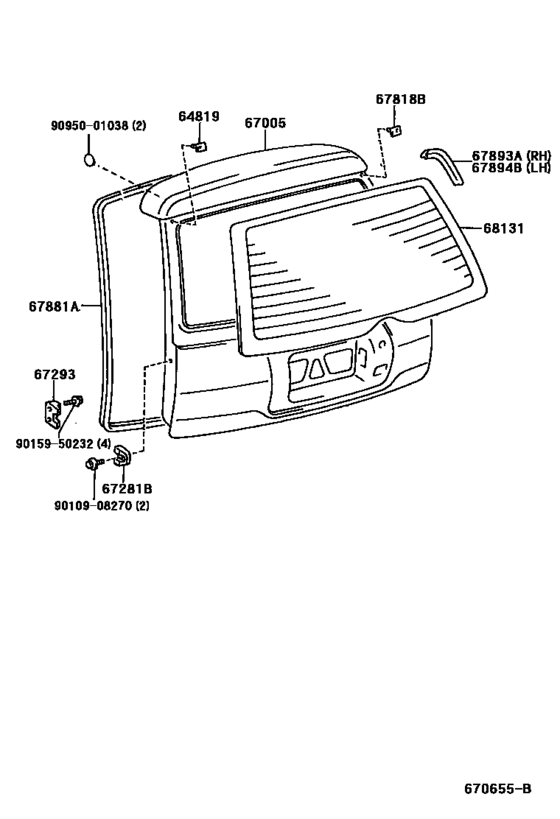

Back Door Panel & Glass ([04.1997 - ] (9704- )WG) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- WG
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64819
|
64819
64819-13010 Spacer, Back Window Glass, No.2[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
64819-13010 |
US $2.77 |
||
|
67005
|
67005
67005-1F520 Panel Sub-Assy, Back DoorBACK DOOR [04.1997 - 10.1999] AE11#,CE110,EE111..WG |
67005-1F520 |
US $748.38 |
||
|
67005
|
67005
67005-1F530 Panel Sub-Assy, Back DoorBACK DOOR [04.1997 - 10.1999] AE11#,CE110,EE111..WG W(REAR SPOILER) |
67005-1F530 |
US $748.38 |
||
|
67281B
|
67281B
67281-12061 Stopper, Back Door, Lower[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
67281-12061 |
US $13.40 |
||
|
67293
|
67293
67293-13040 Cushion, Back Door Lower Stopper[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
67293-13040 |
US $8.59 |
||
|
67818B
|
67818B
64818-13030 Spacer, Back Window Glass[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
64818-13030 |
US $2.33 |
||
|
67881A
|
67881A
67881-13220 Weatherstrip, Back Door[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
67881-13220 |
US $117.94 |
||
|
67893A
|
67893A
67893-12010 Protector, Back Door Panel, No.1[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
67893-12010 |
US $16.16 |
||
|
67894B
|
67894B
67894-12010 Protector, Back Door Panel, No.2[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
67894-12010 |
US $16.16 |
||
|
68131
|
68131
68131-13350
Glass, Back Door
[04.1997 - 10.1999] AE11#,CE110,EE111..WG *EHTT,T=3.5,GREEN |
68131-13350 |
— | ||
|
68131
|
68131
68131-13360
Glass, Back Door
[04.1997 - 10.1999] AE11#,CE110,EE111..LHD..WG *EHTT,T=3.5,GREEN,COLD SPEC |
68131-13360 |
— | ||
|
9010908270
|
9010908270
90109-08270 New Genuine Part |
90109-08270 |
US $1.60 |
||
|
9015950232
|
9015950232
90159-50232 SCREW WWASHER |
90159-50232 |
US $1.92 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
