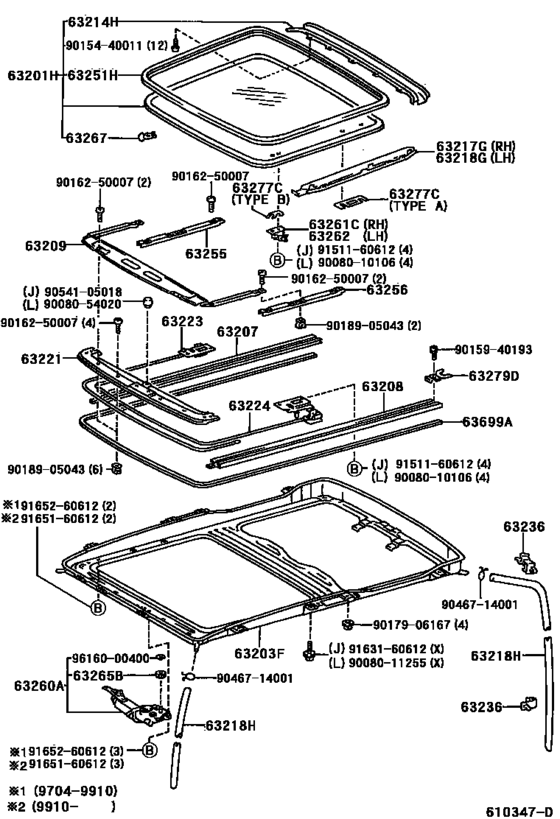

Roof Panel & Back Window Glass ([04.1997 - ] (9704- )WG) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- WG
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63201H
|
63201H
63201-13010 Panel Sub-Assy, Slide Roof[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63201-13010 |
US $1,246.34 |
||
|
63203F
|
63203F
63203-13010 Housing Sub-Assy, Sliding Roof[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63203-13010 |
US $499.41 |
||
|
63207
|
63207
63207-13010 Rail Sub-Assy, Sliding Roof Guide, Rh[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63207-13010 |
US $122.30 |
||
|
63208
|
63208
63208-13010 Rail Sub-Assy, Sliding Roof Guide, Lh[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63208-13010 |
US $122.30 |
||
|
63209
|
63209
63209-13010 Panel Sub-Assy, Roof Wind Deflector[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63209-13010 |
US $334.88 |
||
|
63214H
|
63214H
63214-13011 Panel, Sliding Roof, Rear[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63214-13011 |
US $56.35 |
||
|
63217G
|
63217G
63217-13010 Garnish, Sliding Roof Side, Rh[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63217-13010 |
US $36.11 |
||
|
63218G
|
63218G
63218-13010
Garnish, Sliding Roof Side, Lh
[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63218-13010 |
— | ||
|
63218H
|
63218H
63249-12210 Hose, Sliding Roof Drain[04.1997 - 10.1999] AE11#,CE110,EE111..WG FRONT |
63249-12210 |
US $19.66 |
||
|
63218H
|
63218H
63249-13020 Hose, Sliding Roof Drain[04.1997 - 10.1999] AE11#,CE110,EE111..WG REAR |
63249-13020 |
US $18.78 |
||
| replacement | |||||
|
63218H
|
63218H
63249-35020 Hose, Sliding Roof Drain[04.1997 - 10.1999] AE11#,CE110,EE111..WG REAR |
63249-35020 |
US $18.64 |
||
|
63221
|
63221
63221-13010 Casing, Sliding Roof Cable Guide[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63221-13010 |
US $241.70 |
||
|
63223
|
63223
63223-13010 Cable, Sliding Roof Drive, Rh[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63223-13010 |
US $138.32 |
||
|
63224
|
63224
63224-13010 Cable, Sliding Roof Drive, Lh[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63224-13010 |
US $138.32 |
||
|
63236
|
63236
63236-13010 Clamp, Sliding Roof Or Removable Roof Drain Hose[04.1997 - 10.1999] AE11#,CE110,EE111..WG UPPER |
63236-13010 |
US $4.66 |
||
|
63236
|
63236
63236-13020 Clamp, Sliding Roof Or Removable Roof Drain Hose[04.1997 - 10.1999] AE11#,CE110,EE111..WG LOWER |
63236-13020 |
US $1.89 |
||
|
63251H
|
63251H
63251-13010
Weatherstrip, Sliding Roof
[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63251-13010 |
— | ||
|
63255
|
63255
63255-13010 Cover, Sliding Roof Guide Rail, Rh[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63255-13010 |
US $28.39 |
||
|
63256
|
63256
63255-13010 Cover, Sliding Roof Guide Rail, Rh[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63255-13010 |
US $28.39 |
||
|
63260A
|
63260A
63260-13010 Gear Sub-Assy, Sliding Roof Drive[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63260-13010 |
US $631.90 |
||
|
63261C
|
63261C
63261-10030 Shoe, Sliding Roof, Front Rh[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63261-10030 |
US $16.45 |
||
|
63262
|
63262
63262-10020 Shoe, Sliding Roof, Front Lh[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63262-10020 |
US $16.45 |
||
|
63265B
|
63265B
63265-20010 Gear, Sliding Roof Drive[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63265-20010 |
US $22.71 |
||
|
63267
|
63267
63267-12020 Protector, Sliding Roof Weatherstrip[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63267-12020 |
US $5.24 |
||
|
63277C
|
63277C
63277-24010 Shim, Sliding Roof Rail[04.1997 - 10.1999] AE11#,CE110,EE111..WG T=1.0,TYPE A:REFER TO ILLUSTRATION |
63277-24010 |
US $10.19 |
||
|
63277C
|
63277C
63277-30020 Shim, Sliding Roof Rail[04.1997 - 10.1999] AE11#,CE110,EE111..WG T=1.0,TYPE B:REFER TO ILLUSTRATION |
63277-30020 |
US $2.91 |
||
|
63277C
|
63277C
63277-32010 Shim, Sliding Roof Rail[04.1997 - 10.1999] AE11#,CE110,EE111..WG T=2.0,TYPE B:REFER TO ILLUSTRATION |
63277-32010 |
US $3.93 |
||
|
63277C
|
63277C
63277-32020 Shim, Sliding Roof Rail[04.1997 - 10.1999] AE11#,CE110,EE111..WG T=2.0,TYPE A:REFER TO ILLUSTRATION |
63277-32020 |
US $15 |
||
|
63279D
|
63279D
63279-13010 Stopper, Sliding Roof Guide Rail[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63279-13010 |
US $7.28 |
||
|
63699A
|
63699A
63699-12040
Seal, Sliding Roof Guide Rail
[04.1997 - 10.1999] AE11#,CE110,EE111..WG |
63699-12040 |
— | ||
|
9008010106
|
9008010106
90080-10106
New Genuine Part
|
90080-10106 |
— | ||
|
9008011255
|
9008011255
90080-11255
New Genuine Part
|
90080-11255 |
— | ||
|
9008054020
|
9008054020
90080-54020
New Genuine Part
|
90080-54020 |
— | ||
|
9015440011
|
9015440011
90154-40011 New Genuine Part |
90154-40011 |
US $1.75 |
||
|
9015940193
|
9015940193
90159-40193 New Genuine Part |
90159-40193 |
US $1.60 |
||
|
9016250007
|
9016250007
90162-50007
New Genuine Part
|
90162-50007 |
— | ||
|
9017906167
|
9017906167
90179-06167 Direct |
90179-06167 |
US $1.60 |
||
| replacement | |||||
|
9017906167
|
9017906167
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9018905043
|
9018905043
90189-05043 Clip, Rear Door Service Hole |
90189-05043 |
US $1.60 |
||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.76 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
|
9054105018
|
9054105018
90541-05018 Cushion(For Fuel Inlet Box Cover) |
90541-05018 |
from US $1.89 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9163160612
|
9163160612
91631-60612
New Genuine Part
|
91631-60612 |
— | ||
| replacement | |||||
|
9163160612
|
9163160612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9165260612
|
9165260612
91652-60612
New Genuine Part
|
91652-60612 |
— | ||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
