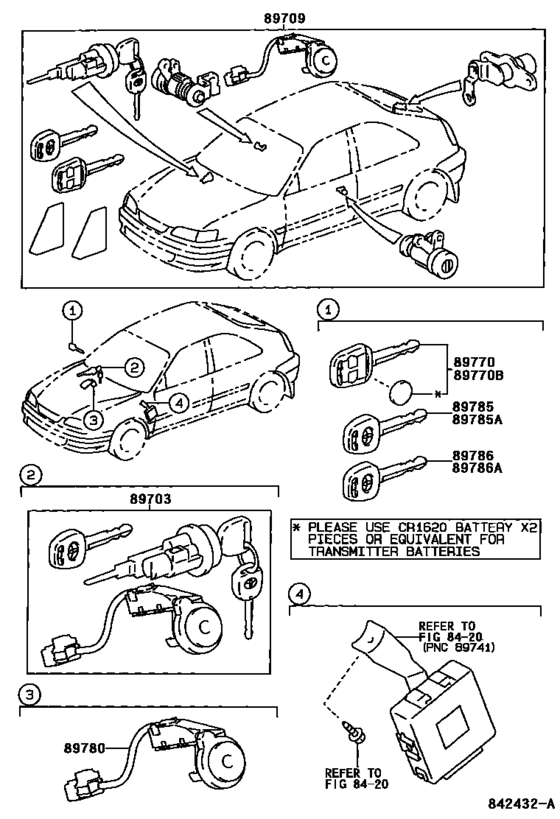

Anti-Theft Device ([09.1998 - 11.1999] (9809-9911)UKP) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89703
|
89703
89703-02010
Cylinder & Key Set, Ignition W/transponder
[09.1998 - 11.1999] AE111,EE111..UKP |
89703-02010 |
— | ||
|
89709
|
89709
89709-02010
Computer Set, Transponder Key
[09.1998 - 11.1999] AE111,EE111..UKP..RHD W(KEY LESS ENTRY); AE111,EE111..UKP..LHD AUSTRIA OR GERMANY OR NORWAY OR SWITZERLAND SPEC |
89709-02010 |
— | ||
|
89709
|
89709
89709-02020
Computer Set, Transponder Key
[09.1998 - 11.1999] AE111,EE111..UKP..TERRA |
89709-02020 |
— | ||
|
89709
|
89709
89709-02030
Computer Set, Transponder Key
[09.1998 - 11.1999] AE111,EE111..UKP..LHD W(KEY LESS ENTRY) |
89709-02030 |
— | ||
|
89709
|
89709
89709-02040
Computer Set, Transponder Key
[09.1998 - 11.1999] AE111,EE111..UKP..LHD FRANCE SPEC |
89709-02040 |
— | ||
|
89709
|
89709
89709-02050
Computer Set, Transponder Key
[09.1998 - 11.1999] AE111,EE111..UKP..LHD DENMARK OR SWEDEN SPEC |
89709-02050 |
— | ||
|
89770
|
89770
89770-02020
Transmitter Assy,transponder Immobilizer&wireless(Blank)
[09.1998 - 11.1999] AE111,EE111..UKP..RHD W(KEY LESS ENTRY); AE111,EE111..UKP..LHD AUSTRIA OR GERMANY OR NORWAY OR SWITZERLAND SPEC |
89770-02020 |
— | ||
|
89770
|
89770
89770-02070
Transmitter Assy,transponder Immobilizer&wireless(Blank)
[09.1998 - 11.1999] AE111,EE111..UKP..LHD W(KEY LESS ENTRY) |
89770-02070 |
— | ||
|
89770
|
89770
89770-02080
Transmitter Assy,transponder Immobilizer&wireless(Blank)
[09.1998 - 11.1999] AE111,EE111..UKP..LHD FRANCE SPEC |
89770-02080 |
— | ||
|
89770
|
89770
89770-02090
Transmitter Assy,transponder Immobilizer&wireless(Blank)
[09.1998 - 11.1999] AE111,EE111..UKP..LHD DENMARK OR SWEDEN SPEC |
89770-02090 |
— | ||
|
89770B
|
89770B
89770-02030
Transmitter Assy, Transponder W/immobilizer & Wireless(Cut)
[09.1998 - 11.1999] AE111,EE111..UKP..RHD W(KEY LESS ENTRY); AE111,EE111..UKP..LHD AUSTRIA OR GERMANY OR NORWAY OR SWITZERLAND SPEC |
89770-02030 |
— | ||
|
89770B
|
89770B
89770-02100
Transmitter Assy, Transponder W/immobilizer & Wireless(Cut)
[09.1998 - 11.1999] AE111,EE111..UKP..LHD W(KEY LESS ENTRY) |
89770-02100 |
— | ||
|
89770B
|
89770B
89770-02110
Transmitter Assy, Transponder W/immobilizer & Wireless(Cut)
[09.1998 - 11.1999] AE111,EE111..UKP..LHD FRANCE SPEC |
89770-02110 |
— | ||
|
89770B
|
89770B
89770-02120
Transmitter Assy, Transponder W/immobilizer & Wireless(Cut)
[09.1998 - 11.1999] AE111,EE111..UKP..LHD DENMARK OR SWEDEN SPEC |
89770-02120 |
— | ||
|
89780
|
89780
89780-02010
Computer Assy, Transponder Key
[09.1998 - 11.1999] AE111,EE111..UKP |
89780-02010 |
— | ||
|
89785
|
89785
89785-02050
Transmitter, Transponder Key Master
[09.1998 - 11.2001] AE111,EE111,WZE110..UKP..(LUNA,TERRA) |
89785-02050 |
— | ||
|
89785A
|
89785A
89785-02060
Transmitter, Transponder Cut Key Master
[09.1998 - 11.2001] AE111,EE111,WZE110..UKP..(LUNA,TERRA) |
89785-02060 |
— | ||
|
89786
|
89786
89786-02020
Transmitter, Transponder Key Sub
[09.1998 - 11.2001] AE111,EE111,WZE110..UKP |
89786-02020 |
— | ||
|
89786A
|
89786A
89786-02030
Transmitter, Transponder Cut Key Sub
[09.1998 - 11.2001] AE111,EE111,WZE110..UKP |
89786-02030 |
— |
