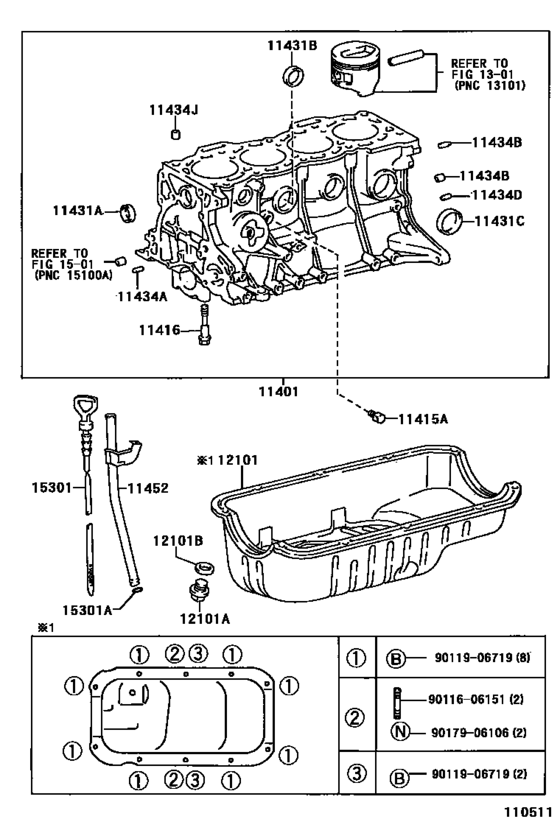

Cylinder Block ([04.1997 - ] (9704- )4EFE) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-80695 Block Sub-Assy, CylinderCYLINDER [09.1998 - 11.1999] 4EFE..EE111..UKP |
11401-80695 |
US $2,198.56 |
||
|
11415A
|
11415A
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[09.1998 - 11.1999] 4EFE..EE111..UKP |
90345-52001 |
from US $3.68 |
||
|
11416
|
11416
90910-02019 Bolt(For Crankshaft Bearing Cap Set)[09.1998 - 11.1999] 4EFE..EE111..UKP |
90910-02019 |
US $3.32 |
||
|
11431A
|
11431A
96411-42500 Plug, Tight, No.1[09.1998 - 11.1999] 4EFE..EE111..UKP |
96411-42500 |
from US $2.95 |
||
|
11431B
|
11431B
96411-43000 Plug, Tight, No.1[09.1998 - 11.1999] 4EFE..EE111..UKP |
96411-43000 |
from US $3.84 |
||
|
11431C
|
11431C
96411-43500 Plug, Tight, No.1[09.1998 - 11.1999] 4EFE..EE111..UKP |
96411-43500 |
from US $3.88 |
||
|
11434A
|
11434A
90250-06068 Pin, Straight[09.1998 - 11.1999] 4EFE..EE111..UKP L=11,OD=6 |
90250-06068 |
from US $1.93 |
||
|
11434B
|
11434B
90250-10017 Pin, Straight(For Clutch Housing Set)[09.1998 - 11.1999] 4EFE..EE111..UKP L=20,OD=10 |
90250-10017 |
from US $2.08 |
||
|
11434B
|
11434B
90253-15003 Pin, Straight(For Clutch Housing Set)[09.1998 - 11.1999] 4EFE..EE111..UKP L=17,OD=15 |
90253-15003 |
US $2.18 |
||
|
11434D
|
11434D
90250-06068 Pin, Straight[09.1998 - 11.1999] 4EFE..EE111..UKP L=11,OD=6 |
90250-06068 |
from US $1.93 |
||
|
11434J
|
11434J
90253-12001 Pin, Ring W/head[09.1998 - 11.1999] 4EFE..EE111..UKP |
90253-12001 |
US $5.52 |
||
|
11452
|
11452
11452-11041 Guide, Oil Level Gage[09.1998 - 11.1999] 4EFE..EE111..UKP |
11452-11041 |
US $28.39 |
||
|
12101
|
12101
12101-11060 Pan Sub-Assy, Oil[09.1998 - 11.1999] 4EFE..EE111..UKP |
12101-11060 |
US $172.97 |
||
|
12101A
|
12101A
90341-12026
Plug, Drain
[09.1998 - 11.1999] 4AFE..AE111..UKP; 4EFE..EE111..UKP |
90341-12026 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[09.1998 - 11.1999] 4AFE..AE111..UKP; 4EFE..EE111..UKP |
90341-12012 |
from US $2.56 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[09.1998 - 11.1999] 4AFE..AE111..UKP; 4EFE..EE111..UKP |
90430-12031 |
from US $0.88 |
||
|
15301
|
15301
15301-11050
Gage Sub-Assy, Oil Level
[09.1998 - 11.1999] 4EFE..EE111..UKP |
15301-11050 |
— | ||
|
15301A
|
15301A
96721-19010 Ring, O(For Oil Level Gage Guide)[09.1998 - 11.1999] 4EFE..EE111..UKP |
96721-19010 |
from US $1.64 |
||
|
9011606151
|
9011606151
90116-06151 New Genuine Part |
90116-06151 |
US $0.96 |
||
|
9011906719
|
9011906719
90119-06719 New Genuine Part |
90119-06719 |
US $1.76 |
||
|
9017906106
|
9017906106
90179-06106 NUT |
90179-06106 |
US $1.92 |
||
