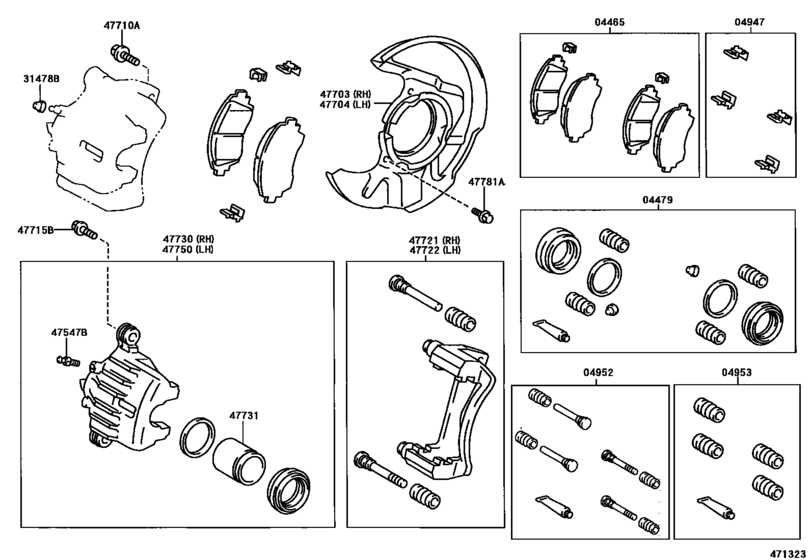

Front Disc Brake Caliper & Dust Cover ([09.1998 - ] (9809- )UKP) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-02030
Pad Kit, Disc Brake, Front
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP MARK NBK PN540H |
04465-02030 |
— | ||
| replacement | |||||
|
04465
|
04465
04465-02140
Pad Kit, Disc Brake, Front
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP MARK NBK PN540H |
04465-02140 |
— | ||
|
04479
|
04479
04479-02060
Cylinder Kit, Disc Brake, Front
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
04479-02060 |
— | ||
|
04947
|
04947
04947-02030
Fitting Kit, Disc Brake, Front
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
04947-02030 |
— | ||
|
04952
|
04952
04952-02010
Pin Kit, Front Disc Brake Cylinder Slide
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
04952-02010 |
— | ||
|
04953
|
04953
04953-02010
Boot Kit, Front Disc Brake Cylinder Slide Pin
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
04953-02010 |
— | ||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[09.1998 - 11.2001] AE111,EE111..UKP;CDE110,WZE110,ZZE11# |
31478-30010 |
from US $1.66 |
||
|
47547B
|
47547B
90080-93014
Plug, Bleeder(For Front Disc Brake)
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
90080-93014 |
— | ||
|
47703
|
47703
47781-02020
Cover Sub-Assy, Disc Brake Dust, Front Rh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
47781-02020 |
— | ||
|
47704
|
47704
47782-02020
Cover Sub-Assy, Disc Brake Dust, Front Lh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
47782-02020 |
— | ||
|
47710A
|
47710A
90119-12040 Bolt, Hexagon(For Front Disc Brake Caliper)[09.1998 - 11.2001] AE111,EE111..UKP;CDE110,WZE110,ZZE11# *12-1.25PX25.8-19.5 |
90119-12040 |
from US $3.68 |
||
|
47715B
|
47715B
90080-10190 Bolt(For Front Disc Brake Cylinder Mounting)[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
90080-10190 |
US $0.96 |
||
|
47721
|
47721
47721-09020
Mounting, Front Disc Brake Cylinder, Rh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
47721-09020 |
— | ||
|
47722
|
47722
47721-09020
Mounting, Front Disc Brake Cylinder, Rh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
47721-09020 |
— | ||
|
47730
|
47730
47730-02060
Cylinder Assy, Front Disc Brake, Rh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
47730-02060 |
— | ||
|
47731
|
47731
47731-02060
Piston, Front Disc Brake
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
47731-02060 |
— | ||
|
47750
|
47750
47750-02060
Cylinder Assy, Disc Brake, Lh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
47750-02060 |
— | ||
|
47781A
|
47781A
90119-06227 Bolt(For Dust Cover To Steering Knuckle Arm Setting)[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
90119-06227 |
from US $0.72 |
||
