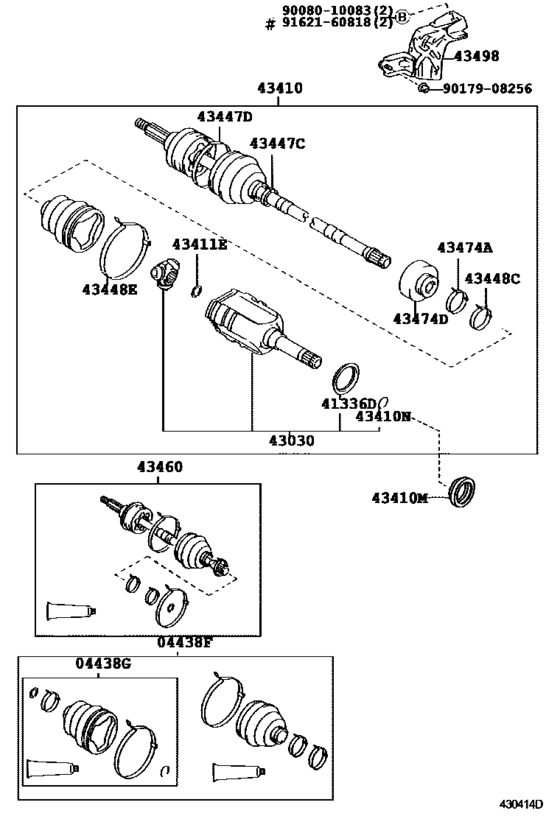

Front Drive Shaft ([09.1998 - ] RH (9809- )UKP) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-05060
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[09.1998 - 01.1999] AE111,EE111..UKP |
04438-05060 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04438-05140
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[09.1998 - 01.1999] AE111,EE111..UKP |
04438-05140 |
— | ||
|
04438F
|
04438F
04438-05140
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[01.1999 - 11.2001] AE111,EE111,ZZE11#..UKP |
04438-05140 |
— | ||
|
04438G
|
04438G
04438-05050
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[09.1998 - 01.1999] AE111,EE111..UKP |
04438-05050 |
— | ||
| replacement | |||||
|
04438G
|
04438G
04438-05130
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[09.1998 - 01.1999] AE111,EE111..UKP |
04438-05130 |
— | ||
|
04438G
|
04438G
04438-05130
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[01.1999 - 11.2001] AE111,EE111,ZZE11#..UKP |
04438-05130 |
— | ||
|
41336D
|
41336D
41336-05010
Cover, Front Drive Shaft Dust, Rh
[09.1998 - 11.2001] AE111,EE111,ZZE11#..UKP |
41336-05010 |
— | ||
|
43030
|
43030
43403-05030
Joint Assy, Front Drive Inboard, Rh
[09.1998 - 11.2001] AE111,EE111,ZZE11#..UKP |
43403-05030 |
— | ||
|
43410
|
43410
43410-05190 Shaft Assy, Front Drive, RhFRONT DRIVE, RH [09.1998 - 11.2001] AE111,EE111,ZZE11#..UKP..(3FC,4FC,5F) |
43410-05190 |
US $1,113.84 |
||
|
43410
|
43410
43410-05200
Shaft Assy, Front Drive, Rh
[09.1998 - 11.2001] AE111,EE111,ZZE11#..UKP W(ABS) |
43410-05200 |
— | ||
|
43410M
|
43410M
90311-34016 Seal, Oil, No.2(For Transaxle Case)[09.1998 - 08.2000] ZZE11#..MTM; AE111,EE111..UKP..5F |
90311-34016 |
from US $4.32 |
||
|
43410N
|
43410N
90080-52056 Ring, Hole Snap (For Front Drive Shaft Rh)[09.1998 - 11.2001] AE111,EE111,ZZE11#..UKP |
90080-52056 |
from US $0.80 |
||
|
43411E
|
43411E
90080-52090
Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
[09.1998 - 11.2001] AE111,EE111,ZZE11#..UKP |
90080-52090 |
— | ||
|
43447C
|
43447C
42345-05050
Clamp (For Front Axle Outboard Joint Boot Rh)
[09.1998 - 11.2001] AE111,EE111,ZZE11#..UKP ID=29.5 |
42345-05050 |
— | ||
|
43447D
|
43447D
42345-05060
Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
[09.1998 - 11.2001] AE111,EE111,ZZE11#..UKP ID=84.5 |
42345-05060 |
— | ||
|
43448C
|
43448C
42345-05010
Clamp (For Front Axle Inboard Joint Boot Rh)
[09.1998 - 11.2001] AE111,EE111,ZZE11#..UKP |
42345-05010 |
— | ||
|
43448E
|
43448E
42345-05020
Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)
[09.1998 - 11.2001] AE111,EE111,ZZE11#..UKP |
42345-05020 |
— | ||
|
43460
|
43460
43460-09260
Shaft Assy, Front Drive Outboard Joint, Rh
[09.1998 - 11.2001] AE111,EE111,ZZE11#..UKP..(3FC,4FC,5F) |
43460-09260 |
— | ||
|
43460
|
43460
43460-09270
Shaft Assy, Front Drive Outboard Joint, Rh
[09.1998 - 11.2001] AE111,EE111,ZZE11#..UKP W(ABS) |
43460-09270 |
— | ||
|
43474A
|
43474A
42345-05110 Clamp (For Front Drive Shaft Damper Lh)[01.1999 - 11.1999] AE111,EE111..UKP..5F LH |
42345-05110 |
US $3.20 |
||
|
43474A
|
43474A
90080-46119 Clamp (For Drive Shaft Damper Setting)[09.1998 - 01.1999] AE111,EE111..UKP |
90080-46119 |
US $3.20 |
||
|
43474D
|
43474D
43474-12070
Damper, Front Drive Shaft, Rh
[09.1998 - 11.2001] AE111,EE111,ZZE11#..UKP |
43474-12070 |
— | ||
|
9008010083
|
9008010083
90080-10083
Bolt(For Automatic Transmission Case Protector)
|
90080-10083 |
— | ||
|
9017908256
|
9017908256
90179-08256 NUT |
90179-08256 |
US $1.28 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
