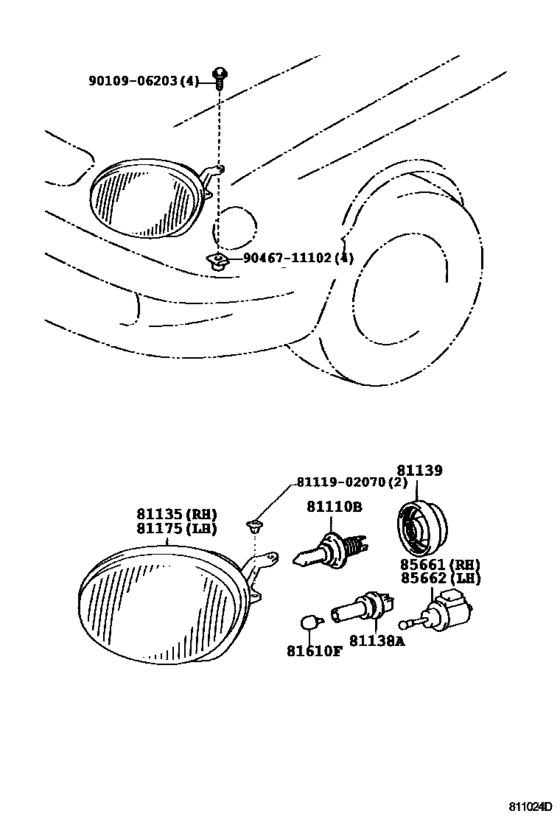

Headlamp ([09.1998 - 11.1999] (9809-9911)UKP) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110B
|
81110B
90080-81031
Bulb(For Headlamp, No.1)
[09.1998 - 11.1999] AE111,EE111..UKP 12V 60/55W,*HAL *WH |
90080-81031 |
— | ||
|
81135
|
81135
81130-02080
Unit Assy, Headlamp, Rh
[09.1998 - 11.1999] AE111,EE111..UKP..LHD; AE111,EE111..UKP..RHD RH TRAFFIC SPEC |
81130-02080 |
— | ||
|
81138A
|
81138A
81138-02070
Socket & Wire, Headlamp
[09.1998 - 11.1999] AE111,EE111..UKP |
81138-02070 |
— | ||
|
81139
|
81139
81139-02070
Cover, Headlamp Socket
[09.1998 - 11.1999] AE111,EE111..UKP |
81139-02070 |
— | ||
|
81175
|
81175
81170-02070
Unit Assy, Headlamp, Lh
[09.1998 - 11.1999] AE111,EE111..UKP..LHD; AE111,EE111..UKP..RHD RH TRAFFIC SPEC |
81170-02070 |
— | ||
|
81610F
|
81610F
90080-81030
Bulb (For License Plate Lamp)
[09.1998 - 11.1999] AE111,EE111..UKP 12V 5W |
90080-81030 |
— | ||
| replacement | |||||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[09.1998 - 11.1999] AE111,EE111..UKP 12V 5W |
99132-12050 |
from US $1.76 |
||
|
85661
|
85661
85661-02010
Motor, Headlamp Leveling, Rh
[09.1998 - 11.1999] AE111,EE111..UKP |
85661-02010 |
— | ||
|
85662
|
85662
85661-02010
Motor, Headlamp Leveling, Rh
[09.1998 - 11.1999] AE111,EE111..UKP |
85661-02010 |
— | ||
|
8111902070
|
8111902070
81119-02070
Screw, Headlamp
|
81119-02070 |
— | ||
|
9010906203
|
9010906203
90109-06203
Retainer, Headlamp
|
90109-06203 |
— | ||
| replacement | |||||
|
9010906203
|
9010906203
90109-06272 Retainer, Headlamp |
90109-06272 |
from US $0.90 |
||
|
9046711102
|
9046711102
90467-11102 CLIP |
90467-11102 |
from US $2.05 |
||
