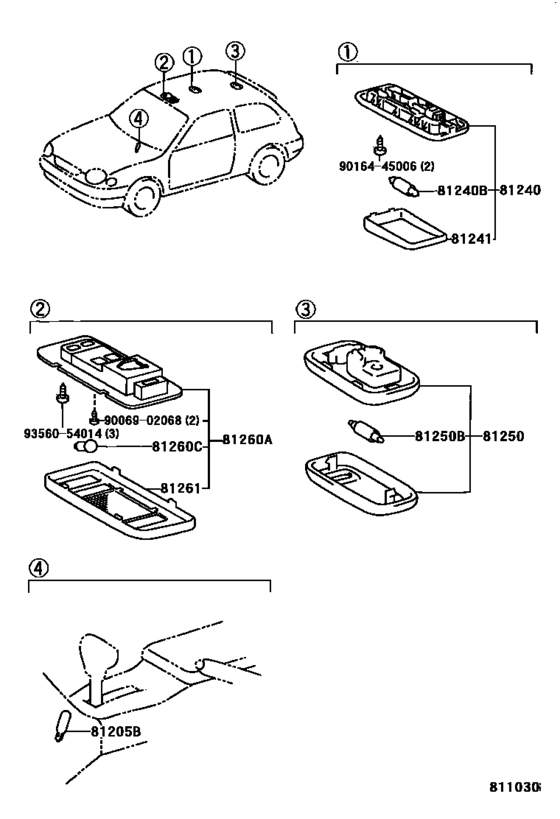

Interior Lamp ([09.1998 - ] (9809- )UKP) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81205B
|
81205B
90981-11018 Bulb, Position Indicator Lamp[09.1998 - 11.2001] AE111,EE111..UKP;CDE110,WZE110,ZZE11# 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
81240
|
81240
81240-05010-A0
Lamp Assy, Room, No.1
[09.1998 - 11.1999] AE111,EE111..UKP IVORY,TRIM0# |
81240-05010-A0 |
— | ||
|
81240
|
81240
81240-05010-B2
Lamp Assy, Room, No.1
[09.1998 - 11.1999] AE111,EE111..UKP MD.CHARCOAL,TRIM10,12 |
81240-05010-B2 |
— | ||
| replacement | |||||
|
81240
|
81240
81240-05030-B1
Lamp Assy, Room, No.1
[09.1998 - 11.1999] AE111,EE111..UKP MD.CHARCOAL,TRIM10,12 |
81240-05030-B1 |
— | ||
|
81240B
|
81240B
90080-81047
Bulb, Room Lamp, No.1
[09.1998 - 04.1999] AE111,EE111..UKP 12V 10W |
90080-81047 |
— | ||
|
81240B
|
81240B
90080-81078
Bulb, Room Lamp, No.1
[04.1999 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP 12V 10W |
90080-81078 |
— | ||
| replacement | |||||
|
81240B
|
81240B
90981-WE001
Bulb, Room Lamp, No.1
[04.1999 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP 12V 10W |
90981-WE001 |
— | ||
|
81241
|
81241
81241-05010
Lens, Room Lamp, No.1
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
81241-05010 |
— | ||
|
81250
|
81250
81250-05010-B0
Lamp Assy, Room, No.2
[09.1998 - 11.1999] AE111,EE111..UKP SHADOW GRAY,TRIM0#,10,12 |
81250-05010-B0 |
— | ||
|
81250B
|
81250B
90080-81049
Bulb(For Courtesy Lamp)
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP 12V 5W |
90080-81049 |
— | ||
|
81260A
|
81260A
81260-05050-A0
Lamp Assy, Map
[09.1998 - 11.1999] AE111,EE111..UKP IVORY,TRIM0# |
81260-05050-A0 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-05052-A0
Lamp Assy, Map
[09.1998 - 11.1999] AE111,EE111..UKP IVORY,TRIM0# |
81260-05052-A0 |
— | ||
|
81260A
|
81260A
81260-05050-B1
Lamp Assy, Map
[09.1998 - 11.1999] AE111,EE111..UKP MD.CHARCOAL,TRIM10,12 |
81260-05050-B1 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-05052-B1
Lamp Assy, Glove Box
[09.1998 - 11.1999] AE111,EE111..UKP MD.CHARCOAL,TRIM10,12 |
81260-05052-B1 |
— | ||
|
81260C
|
81260C
90011-11006
Bulb(For Map Lamp)
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP 12V 5W |
90011-11006 |
— | ||
|
81261
|
81261
81261-05050-A0
Lens And Cover, Map Lamp
[09.1998 - 11.1999] AE111,EE111..UKP IVORY,TRIM0# |
81261-05050-A0 |
— | ||
|
81261
|
81261
81261-05050-B1
Lens And Cover, Map Lamp
[09.1998 - 11.1999] AE111,EE111..UKP MD.CHARCOAL,TRIM10,12 |
81261-05050-B1 |
— | ||
|
9006902068
|
9006902068
90069-02068
New Genuine Part
|
90069-02068 |
— | ||
|
9016445006
|
9016445006
90164-45006 New Genuine Part |
90164-45006 |
US $1.60 |
||
|
9356054014
|
9356054014
93560-54014 SCREW |
93560-54014 |
from US $0.70 |
||
