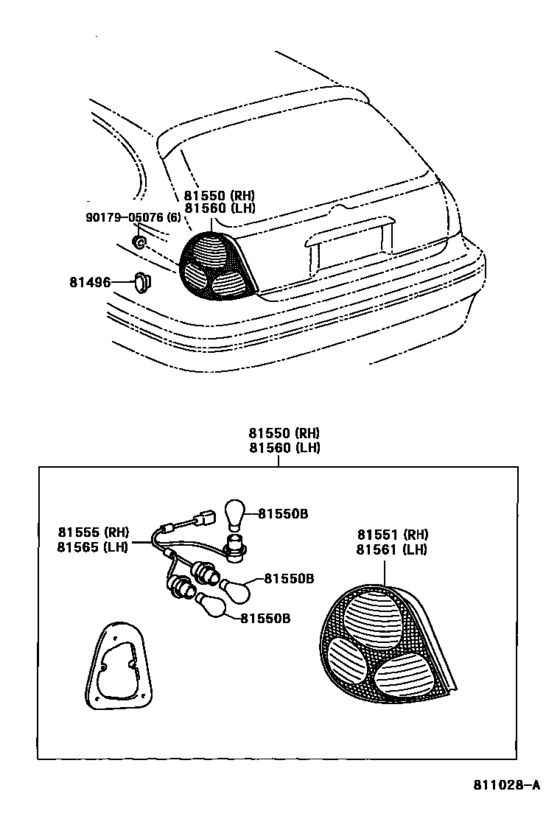

Rear Combination Lamp ([09.1998 - ] (9809- )UKP) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-12010 Guide, Rear Combination Lamp[09.1998 - 11.2001] AE111,EE111..UKP;CDE110,WZE110,ZZE11# |
81496-12010 |
US $4.80 |
||
|
81550
|
81550
81550-02090
Lamp Assy, Rear Combination, Rh
[09.1998 - 11.1999] AE111,EE111..UKP..LHD |
81550-02090 |
— | ||
|
81550B
|
81550B
90080-81035
Bulb(For Rear Combination Lamp)
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP 12V 21W |
90080-81035 |
— | ||
|
81550B
|
81550B
90080-81075
Bulb(For Rear Combination Lamp)
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP 12V 21/5W |
90080-81075 |
— | ||
|
81551
|
81551
81551-02090
Lens, Rear Combination Lamp, Rh
[09.1998 - 11.1999] AE111,EE111..UKP..LHD |
81551-02090 |
— | ||
|
81555
|
81555
81555-02080
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
81555-02080 |
— | ||
|
81560
|
81560
81560-02090
Lamp Assy, Rear Combination, Lh
[09.1998 - 11.1999] AE111,EE111..UKP..LHD |
81560-02090 |
— | ||
|
81561
|
81561
81561-02090
Lens, Rear Combination Lamp, Lh
[09.1998 - 11.1999] AE111,EE111..UKP..LHD |
81561-02090 |
— | ||
|
81565
|
81565
81555-02080
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
81555-02080 |
— | ||
|
9017905076
|
9017905076
90179-05076
NUT
|
90179-05076 |
— | ||
| replacement | |||||
|
9017905076
|
9017905076
90179-05030 NUT |
90179-05030 |
US $1.92 |
||
