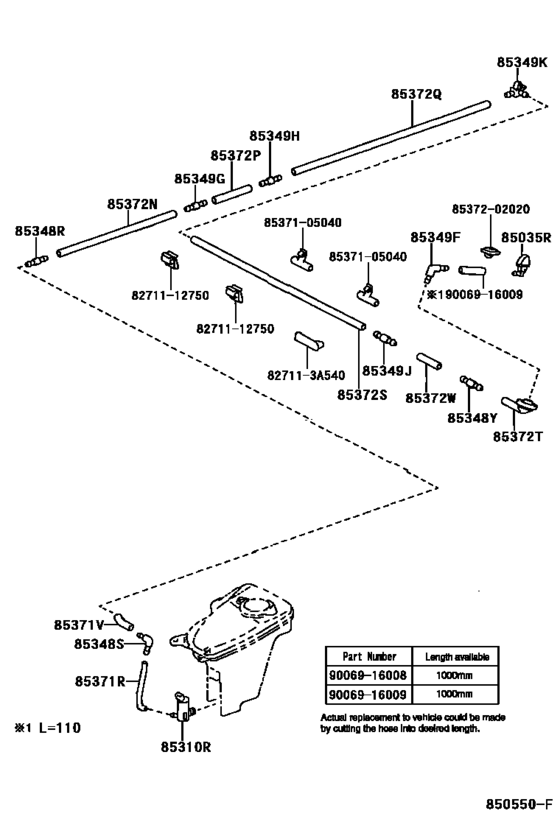

Rear Washer ([09.1998 - ] (9809- )UKP) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035R
|
85035R
85391-02010
Nozzle Sub-Assy, Rear Washer
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
85391-02010 |
— | ||
| replacement | |||||
|
85035R
|
85035R
85391-02011
Nozzle Sub-Assy, Rear Washer
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
85391-02011 |
— | ||
|
85310R
|
85310R
85340-05010 Motor Assy, Rear Washer[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
85340-05010 |
US $120.85 |
||
| replacement | |||||
|
85310R
|
85310R
85340-05011 Motor Assy, Rear Washer[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
85340-05011 |
US $117.06 |
||
|
85348R
|
85348R
85375-05050 Joint, Windshield Washer Hose, No.1[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
85375-05050 |
US $2.80 |
||
|
85349F
|
85349F
85355-20200 Joint, Windshield Washer Hose, No.1[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
85355-20200 |
from US $1.03 |
||
|
85349G
|
85349G
85375-05050 Joint, Windshield Washer Hose, No.1[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
85375-05050 |
US $2.80 |
||
|
85349H
|
85349H
85375-05050 Joint, Windshield Washer Hose, No.1[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
85375-05050 |
US $2.80 |
||
|
85349J
|
85349J
85375-05050 Joint, Windshield Washer Hose, No.1[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
85375-05050 |
US $2.80 |
||
|
85349K
|
85349K
85387-02070
Joint, Rear Washer Elbow, No.2
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
85387-02070 |
— | ||
|
85371V
|
85371V
90069-16009 Hose, Windshield Washer (From Joint To Joint), No.2[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP *H,L=75 |
90069-16009 |
from US $4.40 |
||
|
85372N
|
85372N
90069-16011 Hose, Windshield Washer (From Joint To Joint), No.1REAR WASHER (FROM JOINT TO JOINT), NO.1 [09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP L=1155 |
90069-16011 |
US $26.06 |
||
| replacement | |||||
|
85372N
|
85372N
90069-16010 Hose, Windshield Washer (From Joint To Joint), No.1[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP L=1155 |
90069-16010 |
US $14.36 |
||
|
85372P
|
85372P
85374-02140
Hose, Rear Washer (From Joint To Joint), No.2
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP L=340 |
85374-02140 |
— | ||
|
85372Q
|
85372Q
90069-16011 Hose, Windshield Washer (From Joint To Joint), No.1REAR WASHER (FROM JOINT TO JOINT), NO.1 [09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP L=2190 |
90069-16011 |
US $26.06 |
||
| replacement | |||||
|
85372Q
|
85372Q
90069-16010 Hose, Windshield Washer (From Joint To Joint), No.1[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP L=2190 |
90069-16010 |
US $14.36 |
||
|
85372S
|
85372S
90069-16008
Hose, Windshield Washer (From Joint To Joint), No.2
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP L=950 |
90069-16008 |
— | ||
| replacement | |||||
|
85372S
|
85372S
90069-16009 Hose, Windshield Washer (From Joint To Joint), No.2[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP L=950 |
90069-16009 |
from US $4.40 |
||
|
85372T
|
85372T
85373-14020
Grommet, Washer
[09.1998 - 11.2001] CDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP |
85373-14020 |
— | ||
|
85372W
|
85372W
85374-02130
Hose, Rear Washer (From Joint To Joint), No.5
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP L=30 |
85374-02130 |
— | ||
|
827113A540
|
827113A540
82711-3A540 Clamp, Sliding Roof Drain Hose |
82711-3A540 |
US $1.44 |
||
|
8271112750
|
8271112750
82711-12750 Wire, Fuse To Fuse(for Combustion Heater) |
82711-12750 |
US $1.65 |
||
|
8537105040
|
8537105040
85371-05040
Hose, Windshield Washer (from Motor To Joint)
|
85371-05040 |
— | ||
|
8537202020
|
8537202020
85372-02020
Hose, Windshield Washer (from Joint To Joint), No.1
|
85372-02020 |
— | ||
|
9006916008
|
9006916008
90069-16008
Hose, Windshield Washer (From Joint To Joint), No.2
|
90069-16008 |
— | ||
| replacement | |||||
|
9006916008
|
9006916008
90069-16009 Hose, Windshield Washer (From Joint To Joint), No.2 |
90069-16009 |
from US $4.40 |
||
|
9006916009
|
9006916009
90069-16009 Hose, Windshield Washer (From Joint To Joint), No.2 |
90069-16009 |
from US $4.40 |
||
