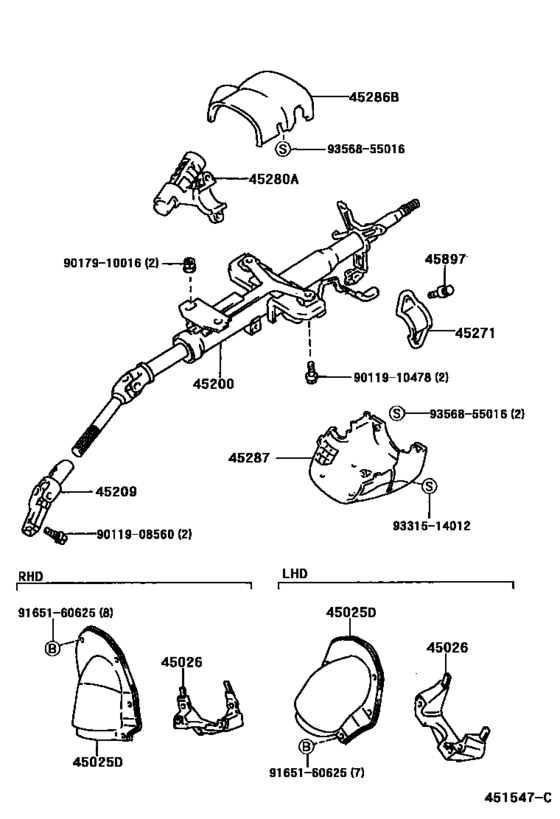

Steering Column & Shaft ([09.1998 - ] W(TILT STEERING) (9809- )UKP) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-12201
Cover Sub-Assy, Steering Column Hole, No.1
[09.1998 - 11.2001] AE111,EE111..UKP..LHD;CDE110,WZE110,ZZE11#..LHD |
45025-12201 |
— | ||
|
45026
|
45026
45026-12040 Cover Sub-Assy, Steering Column Hole, No.2STEERING COLUMN HOLE, NO.2 [09.1998 - 11.2001] AE111,EE111..UKP..LHD;CDE110,WZE110,ZZE11#..LHD |
45026-12040 |
US $33.87 |
||
|
45200
|
45200
45200-02120
Post Assy, Steering
[09.1998 - 05.2000] AE111,EE111,WZE110,ZZE11#..UKP..LHD |
45200-02120 |
— | ||
|
45200
|
45200
45200-02130
Post Assy, Steering
[09.1998 - 05.2000] AE111,EE111,WZE110,ZZE11#..UKP..LHD W(TILT STEERING) |
45200-02130 |
— | ||
|
45209
|
45209
45209-12080 Yoke Sub-Assy, Steering Sliding[09.1998 - 11.2001] AE111,EE111..UKP;CDE110,WZE110,ZZE11# |
45209-12080 |
from US $109.24 |
||
|
45271
|
45271
45271-05020
Clamp, Steering Column, Upper
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
45271-05020 |
— | ||
|
45280A
|
45280A
45280-05030
Bracket Assy, Steering Column, Upper
[09.1998 - 08.1999] AE111,EE111..UKP |
45280-05030 |
— | ||
|
45280A
|
45280A
45280-05050
Bracket Assy, Steering Column, Upper
[08.1999 - 11.2001] ZZE112..UKP..MTM;AE111,EE111,WZE110,ZZE111..UKP |
45280-05050 |
— | ||
|
45286B
|
45286B
45286-02120-B0
Cover, Steering Column, Upr
[01.1999 - 11.1999] AE111,EE111..UKP..LHD SHADOW GRAY,TRIM1# |
45286-02120-B0 |
— | ||
|
45286B
|
45286B
45286-02120-B1
Cover, Steering Column, Upr
[09.1998 - 11.1999] AE111,EE111..UKP..LHD DK.CHARCOAL,TRIM0#,1# |
45286-02120-B1 |
— | ||
|
45286B
|
45286B
45286-02130-B0
Cover, Steering Column, Upr
[01.1999 - 11.1999] AE111,EE111..UKP W(TILT STEERING),SHADOW GRAY,TRIM1# |
45286-02130-B0 |
— | ||
|
45286B
|
45286B
45286-02130-B1
Cover, Steering Column, Upr
[09.1998 - 11.1999] AE111,EE111..UKP W(TILT STEERING),DK.CHARCOAL,TRIM0#,1# |
45286-02130-B1 |
— | ||
|
45286B
|
45286B
45286-02130-C0
Cover, Steering Column, Upr
[09.1998 - 01.1999] AE111,EE111..UKP W(TILT STEERING),BLACK,TRIM1# |
45286-02130-C0 |
— | ||
|
45287
|
45287
45287-02130-B0
Cover, Steering Column, Lwr
[01.1999 - 11.1999] AE111,EE111..UKP..LHD SHADOW GRAY,TRIM1# |
45287-02130-B0 |
— | ||
|
45287
|
45287
45287-02130-B1
Cover, Steering Column, Lwr
[09.1998 - 11.1999] AE111,EE111..UKP..LHD DK.CHARCOAL,TRIM0#,1# |
45287-02130-B1 |
— | ||
|
45287
|
45287
45287-02140-B0
Cover, Steering Column, Lwr
[01.1999 - 11.1999] AE111,EE111..UKP W(TILT STEERING),SHADOW GRAY,TRIM1# |
45287-02140-B0 |
— | ||
|
45287
|
45287
45287-02140-B1
Cover, Steering Column, Lwr
[09.1998 - 11.1999] AE111,EE111..UKP W(TILT STEERING),DK.CHARCOAL,TRIM0#,1# |
45287-02140-B1 |
— | ||
|
45287
|
45287
45287-02140-C0
Cover, Steering Column, Lwr
[09.1998 - 01.1999] AE111,EE111..UKP W(TILT STEERING),BLACK,TRIM1# |
45287-02140-C0 |
— | ||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[09.1998 - 11.2001] AE111,EE111..UKP;CDE110,WZE110,ZZE11# |
45897-12020 |
from US $3.36 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9011910478
|
9011910478
90119-10478
New Genuine Part
|
90119-10478 |
— | ||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9165160625
|
9165160625
91651-60625 New Genuine Part |
91651-60625 |
US $2.56 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
