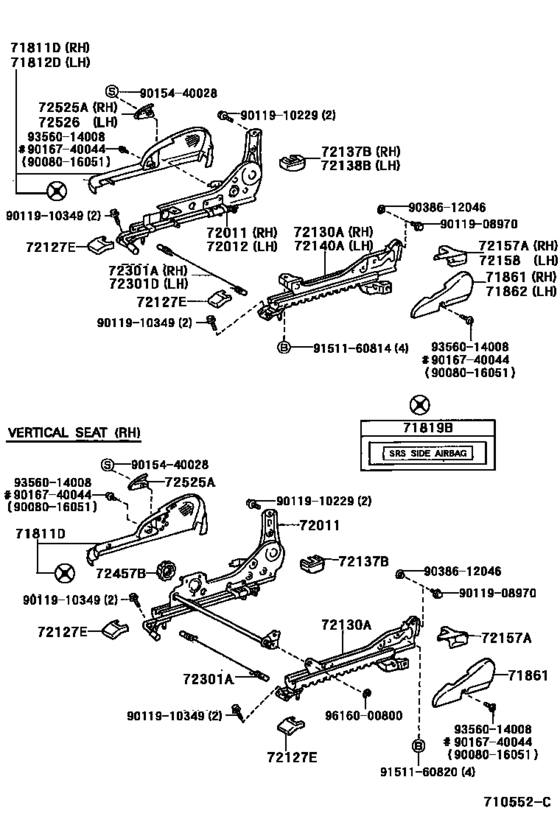

Front Seat & Seat Track ([05.1995 - ] (9505- )) Diagram Toyota COROLLA
- Year
- 1995 - 2000
- Sales region
- General
- Frame
- EE111
- grade
- XLI
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71811D
|
71811D
71811-12260-P0 Shield, Front Seat Cushion, Rh[05.1995 - 04.1997] AE11#,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
71811-12260-P0 |
US $30.87 |
||
|
71811D
|
71811D
71811-12280-P0
Shield, Front Seat Cushion, Rh
[05.1995 - 10.1999] EE111..GEN MALAYSIA SPEC-*104,SHADOW GRAY,TRIM1# |
71811-12280-P0 |
— | ||
|
71811D
|
71811D
71811-16230-B8 Shield, Front Seat Cushion, Rh[04.1997 - 08.1998] EE110..GCC;AE111..RHD..WG;EE110..(GL,STD)..GEN;AE112,EE111..GCC,GEN,VEN;AE111..XLI ..(GCC,TUR,VEN);AE111..LHD..GLI..(GEN,TUR);AE110,111..RHD..(GL,GLI)..GEN MD.CHARCOAL,TRIM1#; AE111..LHD..WG;AE111,112,CE110..NZ MD.CHARCOAL,TRIM1# |
71811-16230-B8 |
US $44.99 |
||
| replacement | |||||
|
71811D
|
71811D
71811-16240-B2 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [04.1997 - 08.1998] EE110..GCC;AE111..RHD..WG;EE110..(GL,STD)..GEN;AE112,EE111..GCC,GEN,VEN;AE111..XLI ..(GCC,TUR,VEN);AE111..LHD..GLI..(GEN,TUR);AE110,111..RHD..(GL,GLI)..GEN MD.CHARCOAL,TRIM1#; AE111..LHD..WG;AE111,112,CE110..NZ MD.CHARCOAL,TRIM1# |
71811-16240-B2 |
US $44.84 |
||
|
71812D
|
71812D
71812-12220-P0 Shield, Front Seat Cushion, Lh[05.1995 - 04.1997] AE11#,EE11# SHADOW GRAY,TRIM1# |
71812-12220-P0 |
US $30.87 |
||
|
71812D
|
71812D
71812-16190-B8 Shield, Front Seat Cushion, Lh[04.1997 - 08.1998] EE110..GCC;AE111..RHD..WG;EE110..(GL,STD)..GEN;AE112,EE111..GCC,GEN,VEN;AE111..XLI ..(GCC,TUR,VEN);AE111..LHD..GLI..(GEN,TUR);AE110,111..RHD..(GL,GLI)..GEN MD.CHARCOAL,TRIM1#; AE111..LHD..WG;AE111,112,CE110..NZ MD.CHARCOAL,TRIM1# |
71812-16190-B8 |
US $44.99 |
||
| replacement | |||||
|
71812D
|
71812D
71812-16200-B2 Shield, Front Seat Cushion, Lh[04.1997 - 08.1998] EE110..GCC;AE111..RHD..WG;EE110..(GL,STD)..GEN;AE112,EE111..GCC,GEN,VEN;AE111..XLI ..(GCC,TUR,VEN);AE111..LHD..GLI..(GEN,TUR);AE110,111..RHD..(GL,GLI)..GEN MD.CHARCOAL,TRIM1#; AE111..LHD..WG;AE111,112,CE110..NZ MD.CHARCOAL,TRIM1# |
71812-16200-B2 |
US $44.84 |
||
|
71861
|
71861
71861-12220-P0 Shield, Front Seat Cushion, Inner Rh[05.1995 - 04.1997] AE11#,EE11# SHADOW GRAY,TRIM1# |
71861-12220-P0 |
US $20.82 |
||
|
71861
|
71861
71861-20130-B6 Shield, Front Seat Cushion, Inner Rh[04.1997 - 08.1998] EE110..GCC;AE111..RHD..WG;EE110..(GL,STD)..GEN;AE112,EE111..GCC,GEN,VEN;AE111..XLI ..(GCC,TUR,VEN);AE111..LHD..GLI..(GEN,TUR);AE110,111..RHD..(GL,GLI)..GEN MD.CHARCOAL,TRIM1#; AE111..LHD..WG;AE111,112,CE110..NZ MD.CHARCOAL,TRIM1# |
71861-20130-B6 |
US $24.46 |
||
|
71862
|
71862
71862-12210-P0 Shield, Front Seat Cushion, Inner Lh[05.1995 - 04.1997] AE11#,EE11# SHADOW GRAY,TRIM1# |
71862-12210-P0 |
US $20.82 |
||
|
71862
|
71862
71862-20130-B6 Shield, Front Seat Cushion, Inner Lh[04.1997 - 08.1998] AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI )..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) MD.CHARCOAL,TRIM10,14; AE111..LHD..WG;AE111,112,CE110..NZ MD.CHARCOAL,TR |
71862-20130-B6 |
US $24.46 |
||
|
72011
|
72011
72010-12600 Adjuster Sub-Assy, Front Seat, Outer Rh[05.1995 - 10.1999] EE111..GEN MALAYSIA SPEC-*104 |
72010-12600 |
US $396.03 |
||
|
72011
|
72011
72010-12620 Adjuster Sub-Assy, Front Seat, Outer Rh[05.1995 - 04.1997] AE11#,EE11#..XL,XLI |
72010-12620 |
US $310.13 |
||
|
72011
|
72011
72011-12250 Adjuster Sub-Assy, Front Seat, Outer Rh[04.1997 - 01.1999] EE110..LHD..GL;EE110..LHD..3FC;AE111..RHD..(XL,XLI)..GEN;AE112,CE110,EE111..GCC,GE N,VEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN); AE110..TH;AE111..LHD;EE110..LHD..GL;AE111..RHD..(XL,XLI)..(GEN,TH);AE112,CE110 |
72011-12250 |
US $285.38 |
||
|
72011
|
72011
72011-12260 Adjuster Sub-Assy, Front Seat, Outer Rh[04.1997 - 08.1998] AE111,EE111..RHD..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..RHD..(4FC,5F)..(GL,GLI,X L)..GEN W(VERTICAL SEAT AJDUSTER); AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..RHD;AE111..RHD..(GL,GLI,XL,XLI) W(VERTICAL SEAT AJDUSTER) |
72011-12260 |
US $371.28 |
||
|
72012
|
72012
72012-12210 Adjuster Sub-Assy, Front Seat, Outer Lh[04.1997 - 08.1998] AE111..RHD..WG;EE110..RHD..5F;AE111..RHD..(GL,GLI)..GEN;AE110,CE110..(GLI,XL)..GEN ;AE112,EE111..XLI..(GCC,GEN);EE110..LHD..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI). .(GCC,GEN,TUR,VEN); AE111..MA;AE111,EE110..STD,XL,XLI;AE110,112..XLI. |
72012-12210 |
US $285.38 |
||
|
72012
|
72012
72020-12570 Adjuster Sub-Assy, Front Seat, Outer Lh[05.1995 - 04.1997] AE11#,EE11# |
72020-12570 |
US $310.13 |
||
|
72127E
|
72127E
72127-12010-C0
Cover, Seat Track Bracket, Inner Front
[05.1995 - 05.1997] AE110..GLI;AE111..SEG BLACK,TRIM1#,4#; AE111..RHD..GLI;AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(XL,XLI) BLACK,TRIM1# |
72127-12010-C0 |
— | ||
|
72130A
|
72130A
72130-12650 Track Assy, Front Seat, Inner Rh[05.1995 - 10.1999] EE111..GEN MALAYSIA SPEC-*104 |
72130-12650 |
US $133.95 |
||
|
72130A
|
72130A
72130-12670 Track Assy, Front Seat, Inner Rh[05.1995 - 05.1997] AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(XL,XLI) |
72130-12670 |
US $133.95 |
||
|
72137B
|
72137B
72137-12030-C0
Cover, Seat Track, Rh
[05.1995 - 04.1997] AE110..GLI;AE111..SEG BLACK,TRIM1#,4#; AE111..GLI,XLI;AE110,EE11#..XL,XLI BLACK,TRIM1# |
72137-12030-C0 |
— | ||
|
72137B
|
72137B
72137-12070-C0 Cover, Seat Track, Rh[04.1997 - 08.1998] EE110..GCC;AE111..RHD..WG;EE110..(GL,STD)..GEN;AE112,EE111..GCC,GEN,VEN;AE111..XLI ..(GCC,TUR,VEN);AE111..LHD..GLI..(GEN,TUR);AE110,111..RHD..(GL,GLI)..GEN BLACK,TRIM1#; AE111..LHD..WG;AE111,112,CE110..NZ BLACK,TRIM1# |
72137-12070-C0 |
US $12.67 |
||
|
72138B
|
72138B
72138-12040-C0 Cover, Seat Track, Lh[05.1995 - 04.1997] AE110..GLI;AE111..SEG BLACK,TRIM1#,4#; AE111..GLI,XLI;AE110,EE11#..XL,XLI BLACK,TRIM1# |
72138-12040-C0 |
US $10.48 |
||
|
72138B
|
72138B
72138-12080-C0 Cover, Seat Track, Lh[04.1997 - 08.1998] EE110..GCC;AE111..RHD..WG;EE110..(GL,STD)..GEN;AE112,EE111..GCC,GEN,VEN;AE111..XLI ..(GCC,TUR,VEN);AE111..LHD..GLI..(GEN,TUR);AE110,111..RHD..(GL,GLI)..GEN BLACK,TRIM1#; AE111..LHD..WG;AE111,112,CE110..NZ BLACK,TRIM1# |
72138-12080-C0 |
US $12.67 |
||
|
72140A
|
72140A
72140-12490 Track Assy, Front Seat,inner Lh[05.1995 - 05.1997] AE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI) |
72140-12490 |
US $133.95 |
||
|
72157A
|
72157A
72157-12030-C0
Cover, Seat Track Bracket, Inner Rh
[05.1995 - 04.1997] AE110..GLI;AE111..SEG BLACK,TRIM1#,4#; AE111..GLI,XLI;AE110,EE11#..XL,XLI BLACK,TRIM1# |
72157-12030-C0 |
— | ||
|
72158
|
72158
72158-12030-C0
Cover, Seat Track Bracket, Inner Lh
[05.1995 - 04.1997] AE110..GLI;AE111..SEG BLACK,TRIM1#,4#; AE111..GLI,XLI;AE110,EE11#..XL,XLI BLACK,TRIM1# |
72158-12030-C0 |
— | ||
|
72301A
|
72301A
72301-12090 Wire Sub-Assy, Seat Track Equalizing, Rh[05.1995 - 10.1999] EE111..GEN MALAYSIA SPEC-*104 |
72301-12090 |
US $4.66 |
||
|
72301A
|
72301A
72301-12160 Wire Sub-Assy, Seat Track Equalizing, Rh[05.1995 - 05.1997] AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(XL,XLI) |
72301-12160 |
US $2.91 |
||
|
72301D
|
72301D
72301-12160 Wire Sub-Assy, Seat Track Equalizing, Rh[05.1995 - 05.1997] AE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI) |
72301-12160 |
US $2.91 |
||
|
72457B
|
72457B
72457-18010-P0 Knob, Vertical Seat Adjuster[04.1997 - 08.1998] EE111..GEN;AE111..RHD..WG;AE110,111,EE110..RHD..(GL,GLI)..GEN MD.CHARCOAL,TRIM1#; EE111..GEN;AE111..RHD..WG;AE111,CE110..NZ;AE11#,EE110..RHD..(GL,GLI)..(GEN,NZ) MD.CHARCOAL,TRIM1# |
72457-18010-P0 |
US $16.89 |
||
| replacement | |||||
|
72457B
|
72457B
72457-18010-S1 Knob, Vertical Seat Adjuster[04.1997 - 08.1998] EE111..GEN;AE111..RHD..WG;AE110,111,EE110..RHD..(GL,GLI)..GEN MD.CHARCOAL,TRIM1#; EE111..GEN;AE111..RHD..WG;AE111,CE110..NZ;AE11#,EE110..RHD..(GL,GLI)..(GEN,NZ) MD.CHARCOAL,TRIM1# |
72457-18010-S1 |
US $10.63 |
||
|
72457B
|
72457B
72457-22020-B1 Knob, Vertical Seat Adjuster[05.1995 - 10.1999] EE111..GEN MALAYSIA SPEC-*104,SHADOW GRAY,TRIM1# |
72457-22020-B1 |
US $15.29 |
||
| replacement | |||||
|
72457B
|
72457B
72457-22020-B2 Knob, Vertical Seat Adjuster, Rh[05.1995 - 10.1999] EE111..GEN MALAYSIA SPEC-*104,SHADOW GRAY,TRIM1# |
72457-22020-B2 |
US $9.26 |
||
|
72525A
|
72525A
72525-12100-P0 Handle, Reclining Adjuster Release, Rh[05.1995 - 04.1997] AE11#,EE11# SHADOW GRAY,TRIM1# |
72525-12100-P0 |
US $6.81 |
||
|
72525A
|
72525A
72525-16010-B8 Handle, Reclining Adjuster Release, Rh[04.1997 - 08.1998] EE110..GCC;AE111..RHD..WG;EE110..(GL,STD)..GEN;AE112,EE111..GCC,GEN,VEN;AE111..XLI ..(GCC,TUR,VEN);AE111..LHD..GLI..(GEN,TUR);AE110,111..RHD..(GL,GLI)..GEN MD.CHARCOAL,TRIM1#; AE111..LHD..WG;AE111,112,CE110..NZ MD.CHARCOAL,TRIM1# |
72525-16010-B8 |
US $16.89 |
||
| replacement | |||||
|
72525A
|
72525A
72525-16010-S5
Handle, Reclining Adjuster Release, Rh
[04.1997 - 08.1998] EE110..GCC;AE111..RHD..WG;EE110..(GL,STD)..GEN;AE112,EE111..GCC,GEN,VEN;AE111..XLI ..(GCC,TUR,VEN);AE111..LHD..GLI..(GEN,TUR);AE110,111..RHD..(GL,GLI)..GEN MD.CHARCOAL,TRIM1#; AE111..LHD..WG;AE111,112,CE110..NZ MD.CHARCOAL,TRIM1# |
72525-16010-S5 |
— | ||
|
72526
|
72526
72526-12040-P0 Handle, Reclining Adjuster Release, Lh[05.1995 - 04.1997] AE11#,EE11# SHADOW GRAY,TRIM1# |
72526-12040-P0 |
US $6.41 |
||
|
72526
|
72526
72526-16010-B8 Handle, Reclining Adjuster Release, Lh[04.1997 - 08.1998] EE110..GCC;AE111..RHD..WG;EE110..(GL,STD)..GEN;AE112,EE111..GCC,GEN,VEN;AE111..XLI ..(GCC,TUR,VEN);AE111..LHD..GLI..(GEN,TUR);AE110,111..RHD..(GL,GLI)..GEN MD.CHARCOAL,TRIM1#; AE111..LHD..WG;AE111,112,CE110..NZ MD.CHARCOAL,TRIM1# |
72526-16010-B8 |
US $16.89 |
||
| replacement | |||||
|
72526
|
72526
72526-16010-S5
Handle, Reclining Adjuster Release, Lh
[04.1997 - 08.1998] EE110..GCC;AE111..RHD..WG;EE110..(GL,STD)..GEN;AE112,EE111..GCC,GEN,VEN;AE111..XLI ..(GCC,TUR,VEN);AE111..LHD..GLI..(GEN,TUR);AE110,111..RHD..(GL,GLI)..GEN MD.CHARCOAL,TRIM1#; AE111..LHD..WG;AE111,112,CE110..NZ MD.CHARCOAL,TRIM1# |
72526-16010-S5 |
— | ||
|
9008016051
|
9008016051
90080-16051
New Genuine Part
|
90080-16051 |
— | ||
| replacement | |||||
|
9008016051
|
9008016051
90167-40044 BOLT |
90167-40044 |
from US $0.76 |
||
|
9011908970
|
9011908970
90119-08970 New Genuine Part |
90119-08970 |
US $1.16 |
||
|
9011910229
|
9011910229
90119-10229 BOLT |
90119-10229 |
US $3.67 |
||
|
9011910349
|
9011910349
90119-10349
BOLT
|
90119-10349 |
— | ||
| replacement | |||||
|
9011910349
|
9011910349
91651-G1020 BOLT |
91651-G1020 |
from US $1.11 |
||
|
9015440028
|
9015440028
90154-40028 New Genuine Part |
90154-40028 |
US $1.46 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.76 |
||
|
9038612046
|
9038612046
90386-12046 Bush (For Front Seat Hinge Pin) |
90386-12046 |
US $0.87 |
||
|
9151160814
|
9151160814
91511-60814
New Genuine Part
|
91511-60814 |
— | ||
| replacement | |||||
|
9151160814
|
9151160814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9356014008
|
9356014008
93560-14008 New Genuine Part |
93560-14008 |
US $1.16 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.90 |
||
