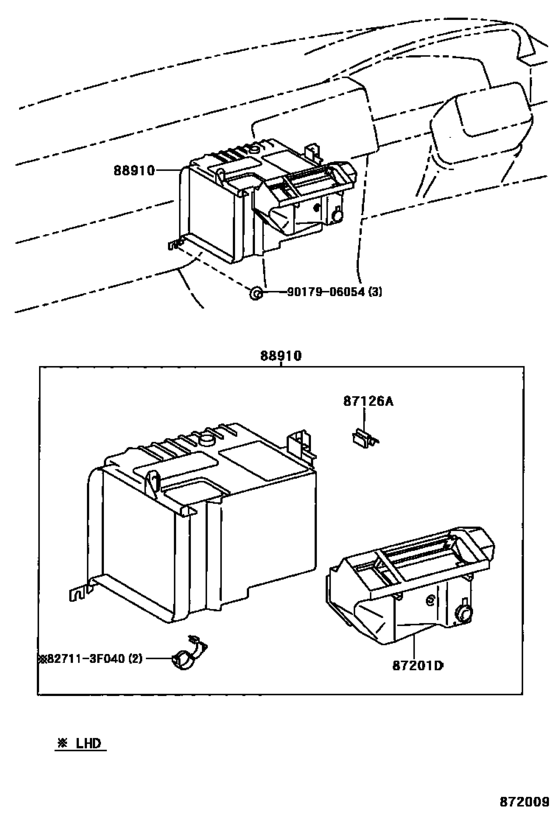

Heating & Air Conditioning - Heater Unit & Blower ([05.1995 - ] BOOST VENTILATOR (9505- )) Diagram Toyota COROLLA
- Year
- 1995 - 2000
- Sales region
- General
- Frame
- EE111
- grade
- XLI
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87126A
|
87126A
87126-12050 Clamp, Heater Control[05.1995 - 04.1997] AE11#,EE11# |
87126-12050 |
US $3.84 |
||
|
87126A
|
87126A
87126-13010 Clamp, Heater Control[04.1997 -] AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110..GCC,GEN;AE110,EE110..(4F,4FC,5F)..(GL, GLI,STD,XL)..(GCC,GEN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(GCC,GEN,VEN); AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..GCC,GEN,IDN,PHL,TH;AE |
87126-13010 |
US $2.18 |
||
|
87201D
|
87201D
87201-12370
Duct Sub-Assy, Air
[05.1995 - 09.1998] AE111..RHD..GEN;AE110,CE110,EE11#..RHD..(GL,XL,XLI)..GEN W(BOOST VENTILATOR) |
87201-12370 |
— | ||
|
87201D
|
87201D
87201-12480
Duct Sub-Assy, Air
[05.1995 -] AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN) |
87201-12480 |
— | ||
|
88910
|
88910
88910-12081
Ventilator Assy, Boost
[05.1995 - 09.2001] AE111..RHD..GEN;AE110,CE110,EE11#..RHD..(GL,XL,XLI)..GEN |
88910-12081 |
— | ||
|
827113F040
|
827113F040
82711-3F040 Wire, Fuse To Fuse(for Combustion Heater) |
82711-3F040 |
from US $2.57 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
