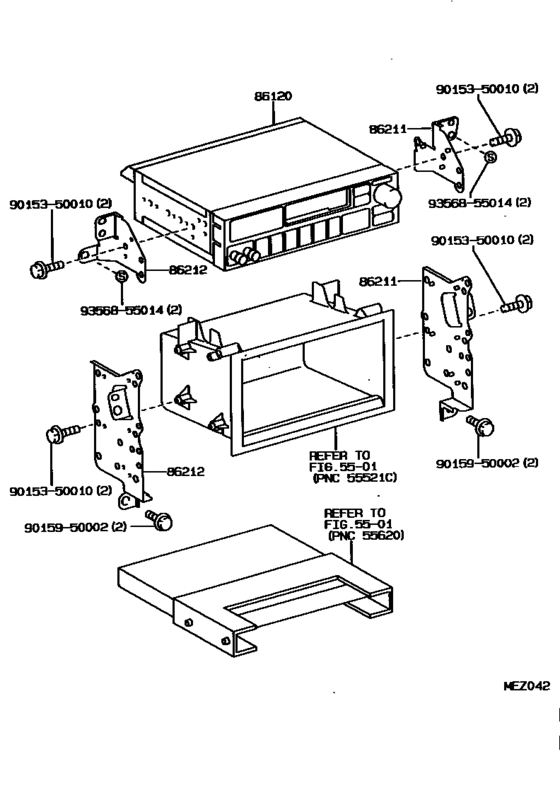

Radio Receiver & Amplifier & Condenser ([05.1995 - 04.1997] (9505-9704)) Diagram Toyota COROLLA
- Year
- 1995 - 2000
- Sales region
- General
- Frame
- EE111
- grade
- XLI
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-16660
Receiver Assy, Radio
[04.1998 - 09.1999] AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,1 12,CE110,EE111..GCC,GEN FUJITSU TEN,ID=17409,AM/FM CASSETTE 2 SPEAKER; AE111..GCC,GEN;AE111..XLI..TH;AE110,112,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GE |
86120-16660 |
— | ||
|
86120
|
86120
86120-1A020 Receiver Assy, RadioRADIO [05.1995 - 04.1997] AE111;AE110,EE11#..XL,XLI FUJITSU TEN,ID=12201,AM/FM |
86120-1A020 |
US $1,339.52 |
||
|
86120
|
86120
86120-1A030 Receiver Assy, RadioRADIO [05.1995 - 04.1997] AE111;AE110,EE11#..XL,XLI FUJITSU TEN,AM/FM CST 4SP |
86120-1A030 |
US $2,766.40 |
||
|
86120
|
86120
86120-1A040 Receiver Assy, RadioRADIO [05.1995 - 04.1997] AE111;AE110,EE11#..XL,XLI FUJITSU TEN,ID=12101,AM |
86120-1A040 |
US $544.54 |
||
|
86120
|
86120
86120-2B380 Receiver Assy, RadioRADIO [05.1995 - 04.1997] AE111;AE110,EE11#..XL,XLI FUJITSU TEN,ID=17202,AM/FM CST 2SP |
86120-2B380 |
US $2,431.52 |
||
|
86120
|
86120
86120-2B610 Receiver Assy, RadioRADIO [08.1998 - 07.2002] AE111..WG..5F;AE112..XLI..(GCC,GEN,IDN);AE110,111,EE111..SED..(ARL,GCC,GEN,GENKD,M A,TH);AE112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,GCC,GEN,IDN,TH) FUJITSU TEN,ID=17411,AM/FM CASSETTE 4 SPEAKER |
86120-2B610 |
US $1,384.66 |
||
|
86120
|
86120
86120-35080
Receiver Assy, Radio
[08.1998 - 10.1999] AE11#,CE110,EE11#..GEN MATSUSHITA,ID=52100,AM |
86120-35080 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-60N00
Receiver Assy, Radio
[08.1998 - 10.1999] AE11#,CE110,EE11#..GEN MATSUSHITA,ID=52100,AM |
86120-60N00 |
— | ||
|
86211
|
86211
86211-12260
Bracket, Radio, No.1
[05.1995 - 04.1997] AE11#,EE11# UPPER |
86211-12260 |
— | ||
|
86211
|
86211
86211-12280 Bracket, Radio, No.1[05.1995 - 04.1997] AE111;AE110,EE11#..XL,XLI LOWER |
86211-12280 |
US $12.52 |
||
|
86211
|
86211
86211-12340 Bracket, Radio, No.1[04.1997 - 10.1999] AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL ,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN ) UPPER; AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,STD,XL,XL |
86211-12340 |
US $6.64 |
||
|
86211
|
86211
86211-12350 Bracket, Radio, No.1[04.1997 - 10.1999] AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL ,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN ) LOWER; AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,STD,XL,XL |
86211-12350 |
US $9.26 |
||
|
86212
|
86212
86212-12240
Bracket, Radio, No.2
[05.1995 - 04.1997] AE11#,EE11# UPPER |
86212-12240 |
— | ||
|
86212
|
86212
86212-12260 Bracket, Radio, No.2[05.1995 - 04.1997] AE111;AE110,EE11#..XL,XLI LOWER |
86212-12260 |
US $12.52 |
||
|
86212
|
86212
86212-12320 Bracket, Radio, No.2[04.1997 - 10.1999] AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL ,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN ) UPPER; AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,STD,XL,XL |
86212-12320 |
US $6.64 |
||
|
86212
|
86212
86212-12330 Bracket, Radio, No.2[04.1997 - 10.1999] AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL ,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN ) LOWER; AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,STD,XL,XL |
86212-12330 |
US $9.61 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.92 |
||
|
9015950002
|
9015950002
90159-50002 SCREW |
90159-50002 |
US $1.12 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
