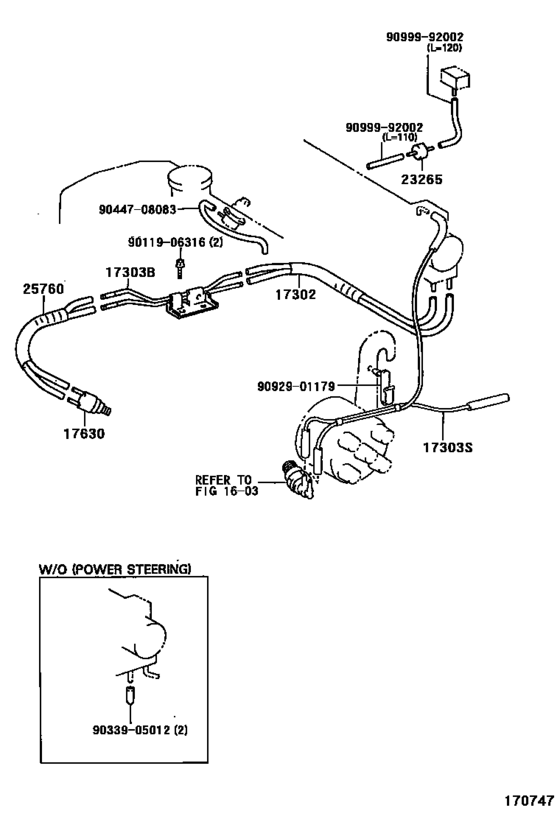

Vacuum Piping ([04.1997 - ] MALAYSIA (9704- )4EFE) Diagram Toyota COROLLA
- Year
- 1995 - 2000
- Sales region
- General
- Frame
- EE111
- grade
- XLI
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17302
|
17302
17302-11050
Hose Sub-Assy, Air
[05.1995 - 04.1997] 4EFE..EE111 |
17302-11050 |
— | ||
|
17302
|
17302
17302-11100
Hose Sub-Assy, Air
[04.1997 - 04.1998] 4EFE..EE111..GEN; 4EFE..EE111 |
17302-11100 |
— | ||
|
17303B
|
17303B
17303-11700 Pipe Sub-Assy, Air, No.1[05.1995 - 04.1997] 4EFE..EE111 |
17303-11700 |
US $58.24 |
||
|
17303B
|
17303B
17303-11880 Pipe Sub-Assy, Air, No.1[04.1997 - 08.2000] 4EFE..EE111..GEN,VEN; 4EFE..EE111 |
17303-11880 |
US $36.25 |
||
|
17303S
|
17303S
17303-11800
Pipe Sub-Assy, Air, No.1
[05.1995 - 02.2000] 4EFE..EE111..GEN,VEN |
17303-11800 |
— | ||
|
17630
|
17630
17630-11060
Valve Assy, Air Control
[05.1995 - 04.1998] 4EFE..EE111..GEN |
17630-11060 |
— | ||
|
23265
|
23265
90917-11030 Filter, Gas, No.1[05.1995 - 08.2002] 4EFE..EE111..GEN,VEN |
90917-11030 |
from US $8.56 |
||
|
25760
|
25760
25760-11260
Hose Assy, Vacuum Transmitting
[05.1995 - 04.1998] 4EFE..EE111..GEN |
25760-11260 |
— | ||
|
9011906316
|
9011906316
90119-06316 New Genuine Part |
90119-06316 |
US $1.75 |
||
|
9033905012
|
9033905012
90339-05012 New Genuine Part |
90339-05012 |
US $6.08 |
||
|
9044708083
|
9044708083
90447-08083
Hose, Front Differential Vacuum, No.3
|
90447-08083 |
— | ||
|
9092901179
|
9092901179
90929-01179 New Genuine Part |
90929-01179 |
US $3.06 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— |
